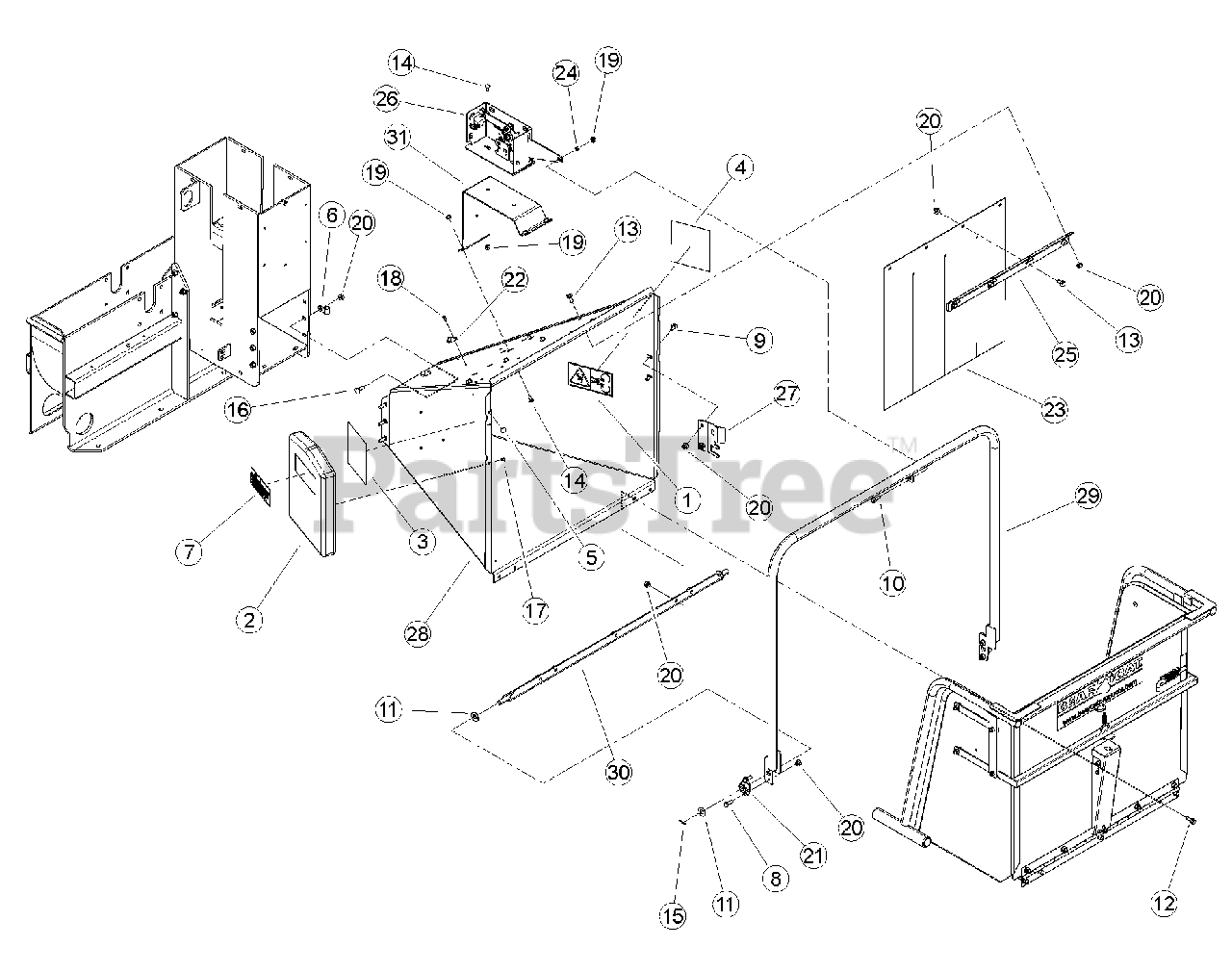

CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Chute (A) CE COMPLIANT (VIN: 5VJAA0012FW004630 - 5VJAA0413GW005166) Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

Chute (A) CE COMPLIANT (VIN: 5VJAA0012FW004630 - 5VJAA0413GW005166) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

4

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

14048-00

CLAMP, 9/16 COATED

$

$

Not available

7

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

9

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

10

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

11

15129

WASHER, 5/8" SAE FLAT ZP

$

$

Not available

12

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

13

15229-00

BOLT, 3/8 X 3/4 FLANGE NC

$

$

Not available

14

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

15

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

16

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

17

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT 5/8"

$34.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

23

Bear Cat 30325-00

FLAP, 9 INCH CHUTE

$82.99

$

Usually ships in 3-7 days

0

24

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

25

70754-12

SUPPORT, 9 INCH CHIPPER FLAP

$

$

Not available

26

70845-00

ASSEMBLY, "CE" SWITCH BOX

$

$

Not available

27

71058-35

PLATE, TRAY STOP

$

$

Not available

28

71067-35

WELDMENT, BIG CHIPPER CHUTE

$

$

Not available

29

Bear Cat 74169-12

WELDMENT, CONTROL ARM

$321.99

$

Usually ships in 3-7 days

0

30

Bear Cat 74171-12

WELDMENT, CONTROL PIVOT

$178.99

$

Usually ships in 3-7 days

0

31

Bear Cat 75243-12

MOUNT, SWITCH BOX

$84.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 30346-00

HARNESS, 8 IN GAS PLUS 1 CONTROLLER

Note: (NOT SHOWN)

$927.99

$

Usually ships in 3-7 days

0
