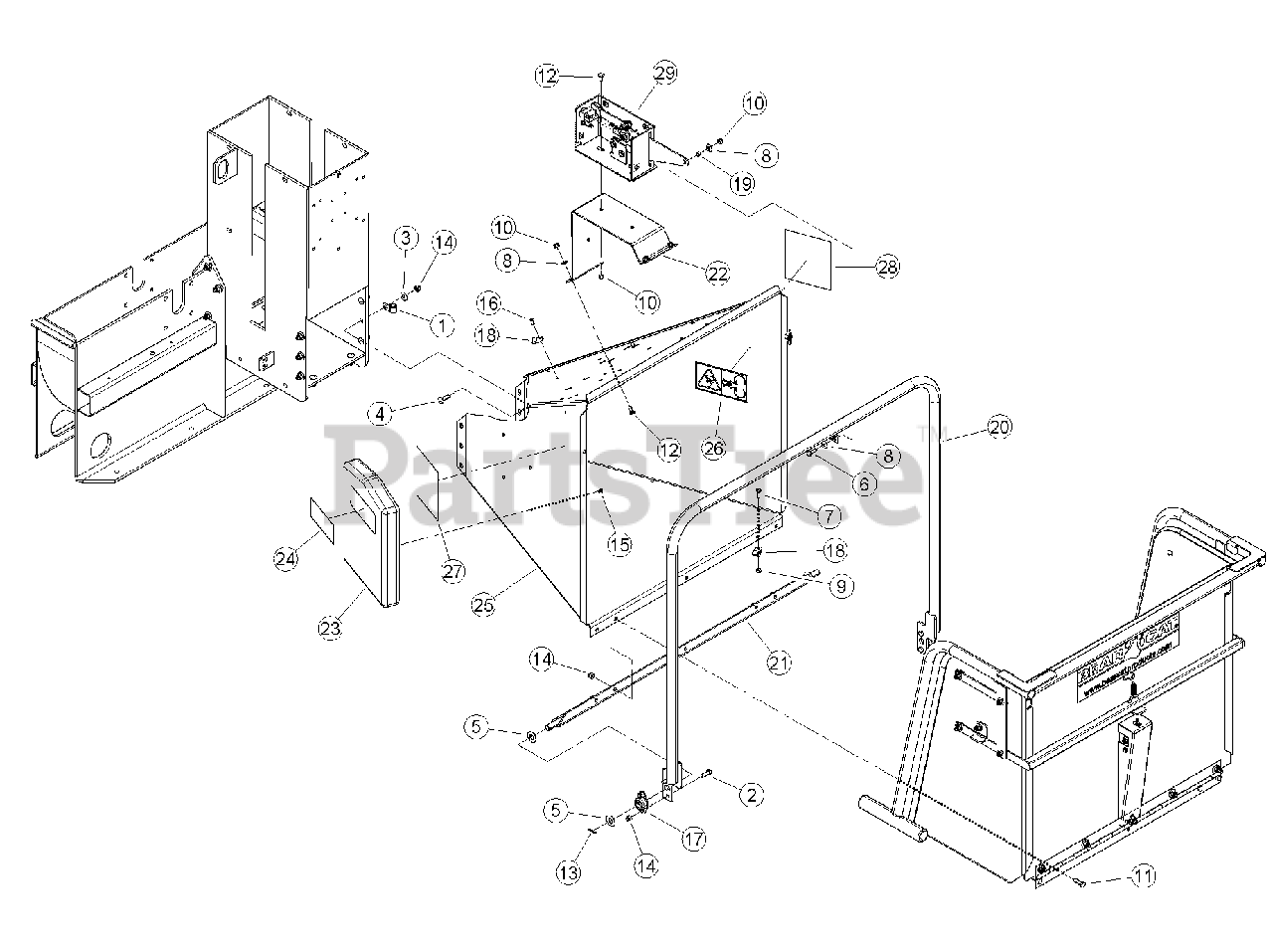

CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Chute (A) CE COMPLIANT (VIN: 5VJAA0011EW004522 AND BELOW) Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

Chute (A) CE COMPLIANT (VIN: 5VJAA0011EW004522 AND BELOW) Parts Diagram

  • Title
1

14048-00

CLAMP, 9/16 COATED

$

$

Not available

2

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

4

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

5

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

6

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

7

Bear Cat 15239

BOLT, 1/4 X 1 CRG GR5 NC ZP

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

11

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

13

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

17

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT, 5/8

$34.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

20

Bear Cat 74169-12

WELDMENT, CONTROL ARM

$321.99

$

Usually ships in 3-7 days

0

21

Bear Cat 74171-12

WELDMENT, CONTROL PIVOT

$178.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75243-12

MOUNT, SWITCH BOX

$84.99

$

Usually ships in 3-7 days

0

23

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER SERVICE PART

Note: (INCLUDES ITEM 24)

$89.99

$

Usually ships in 3-7 days

0

24

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

25

Bear Cat 77126-00

ASSEMBLY, BIG CHIPPER CHUTE SERVICE PART

Note: (INCLUDES ITEMS 26-28)

$1036.99

$

Usually ships in 3-7 days

0

26

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

27

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

28

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

29

Bear Cat 77527-00

ASSEMBLY, SWITCH BOX

$542.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN. BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32105-00

HARNESS, 8 IN GAS PLUS 1 CONTROLLER

Note: (NOT SHOWN)

$1417.99

$

Usually ships in 3-7 days

0
