CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0416GW005193 & Above) Rotor Housing Parts Diagram

8" Chipper, 720cc Subaru Turntable

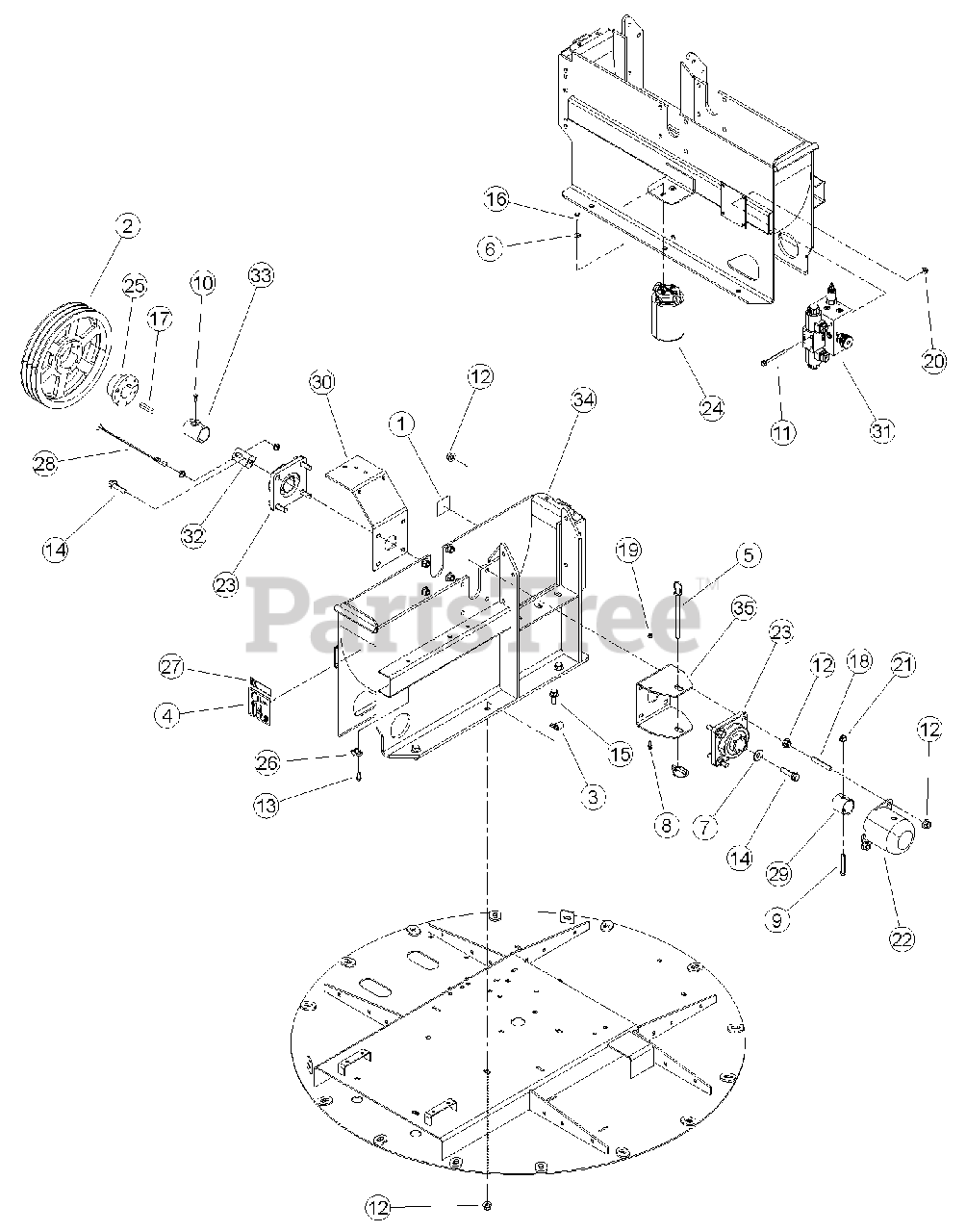

Rotor Housing Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

12455

SHEAVE, 3BQ12.4, SK

$

$

Not available

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 14467-00

DECAL, 114 DB (CE COMPLIANT ONLY)

$38.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W/ LYNCH

$37.99

$

Usually ships in 3-7 days

0

6

15030

WASHER, 1/4" FLAT ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

8

15079-00

BOLT, 1/4-20 X3 /4 HWH GR5 CZP

$

$

Not available

9

Bear Cat 15116

BOLT, 3/8 X 2-1/2 GR5 HHCS ZP

$

$

Not available

10

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

11

15148-00

BOLT, 5/16 X 3-1/2 SERRATED FLANGE NC

$

$

Not available

12

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

13

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

14

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

15

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

16

15343

BOLT, 1/4 X 5/8" HHCS GR5 ZP

$

$

Not available

17

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$4.99

$

In Stock, only 2 left!

0

18

Bear Cat 15481

STUD, 1/2"-13 X 3" LG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

20

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

21

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

22

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

23

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

24

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

25

Bear Cat 17248

BUSHING, SK 1-3/4"

$

$

Not available

26

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

27

Bear Cat 32090-00

DECAL, CH8720IH INFORMATION (CE COMPLIANT ONLY)

$12.99

$

Usually ships in 3-7 days

0

28

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY (REPLACEMENT PART)

$181.99

$

Usually ships in 3-7 days

0

29

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

30

Bear Cat 71339

WELDMENT, REAR GUARD SUPPORT

$

$

Not available

31

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2142.99

$

Usually ships in 3-7 days

0

32

Bear Cat 73242-12

BRACKET, PROXIMITY SENSOR

$

$

Not available

33

Bear Cat 74555-12

WELDMENT, SPACER 2.0 X 2.30

$

$

Not available

34

75154-35

WELDMENT, CHIPPER BOTTOM

$

$

Not available

35

Bear Cat 75960-12

BRACKET, ROTOR LOCK

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
