CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Turntable Parts Diagram

8" Chipper, 720cc Subaru Turntable

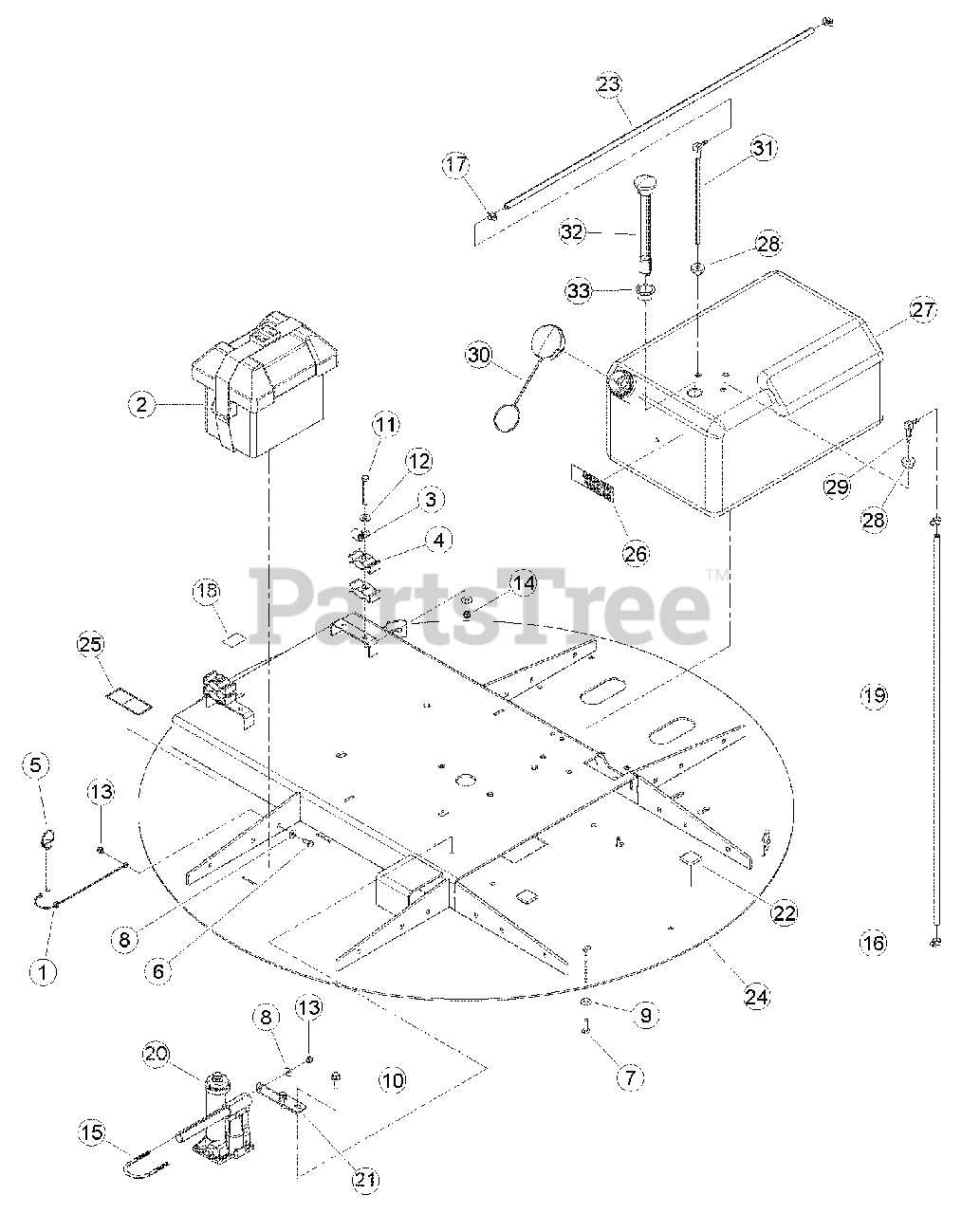

Turntable Parts Diagram

  • Title
1

12530

LANYARD, NYLON

$

$

Not available

2

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16" COATED

$

$

Not available

4

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

5

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

6

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15005

BOLT, 3/8 X 3/4 HEX HD GR5 ZP

$

$

Not available

8

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

15076

SCREW, 3/8-16 X 1 LG THD CUTT ZP

$

$

Not available

11

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16806

CLAMP, 9/16 SPRING

$

$

Not available

18

Bear Cat 73079

HOSE, 38" FUEL LINE

$54.99

$

Usually ships in 3-7 days

0

19

Bear Cat 32154-00

DECAL, P215/70R15 LOAD RATING

$22.99

$

Usually ships in 3-7 days

0

20

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

21

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

22

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0

23

Bear Cat 76771-00

HOSE, 28 INCH FUEL LINE 5/16"

$46.99

$

Usually ships in 3-7 days

0

24

Bear Cat 77133-00

ASSEMBLY, CHIPPER BASE, SERVICE PART

Note: (INCLUDES ITEM 25)

$1898.99

$

Usually ships in 3-7 days

0

25

Bear Cat 36378-00

DECAL, LOCK

$11.99

$

Usually ships in 3-7 days

0

Bear Cat 77142-00

ASSEMBLY, FUEL TANK UNLEADED FUEL INJECTION
(Superseded to 77717-00)

$457.99

$

Usually ships in 3-7 days

0

26

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

27

Bear Cat 36522-00

TANK, 9.5 GAL ROTOMOLDED FUEL

$

$

Not available

28

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

29

Bear Cat 36691-00

FITTING, TANK VENT

$16.99

$

Usually ships in 3-7 days

0

30

Bear Cat 36693-00

CAP, FUEL TANK VENTED

$33.99

$

Usually ships in 3-7 days

0

31

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

32

Bear Cat 36695-00

GAUGE, FUEL LEVEL KELCH 100

$57.99

$

Usually ships in 3-7 days

0

33

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0
