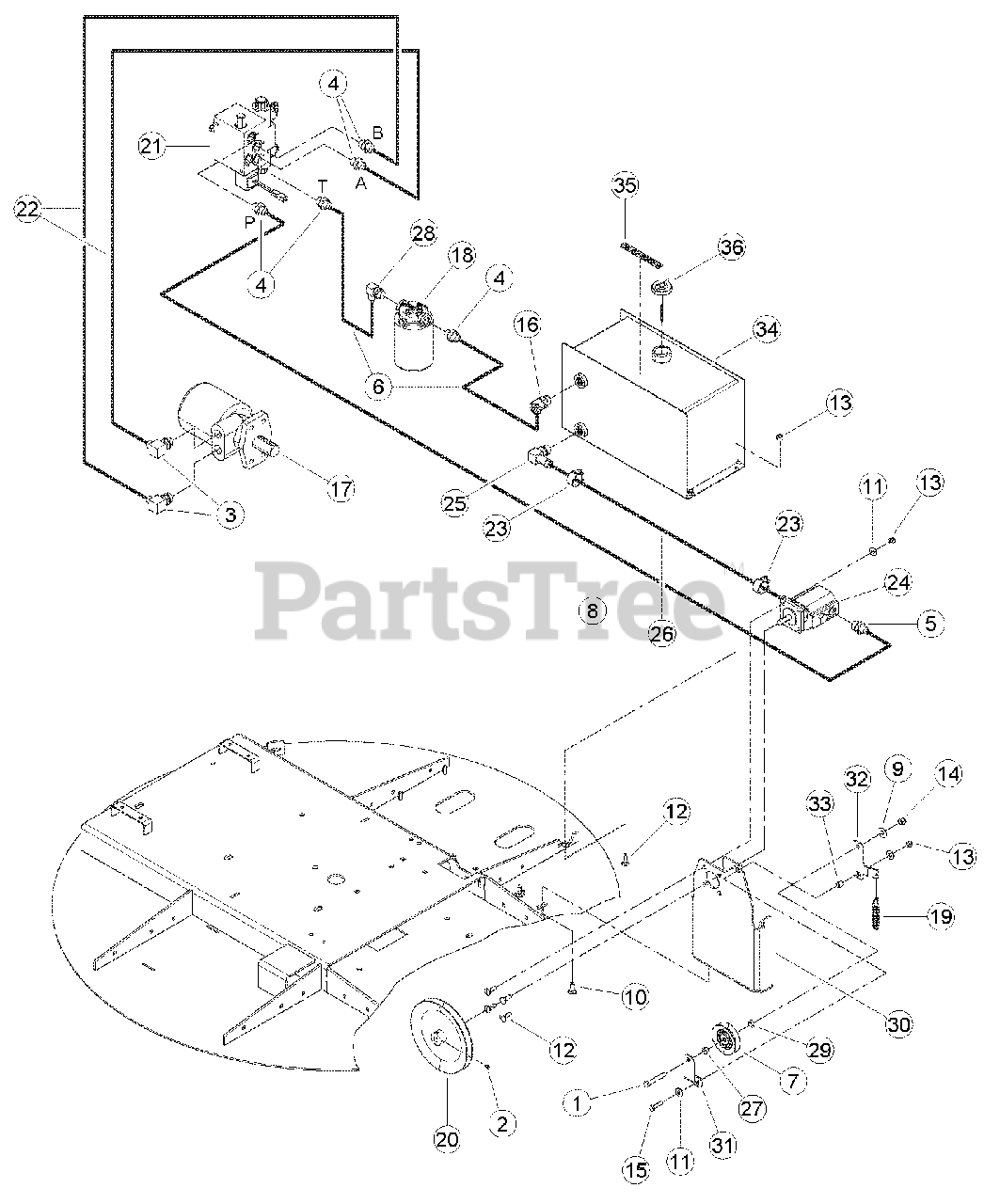

CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Hydraulics Parts Diagram

8" Chipper, 720cc Subaru Turntable

Hydraulics Parts Diagram

  • Title

1

0103-0711-00

BOLT, 3/8 X 2-1/4 HEX HD GR5 ZP

$

$

Not available

2

0104-0076-00

SETSCREW, 1/4-20 X 3/8 HSC CUP

$

$

Not available

3

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

4

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

5

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

6

Bear Cat 14278-00

HOSE ASSY, -8 FMJIC / -8 FMJIC SW X 32"

$61.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14637-00

IDLER, INSIDE

$60.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14665-00

HOSE ASSY, -8 FJIC 90 DEG. SW / -8 FJIC SW 54"

$85.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

12

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

13

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HHCS GR5 NC ZP

$

$

Not available

16

16067

ADAPTER, -10 MORING / -8 MJIC 45 DEG.

$

$

Not available

17

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

19

16602

CLAMP, 1-1/4" HOSE

$

$

Not available

20

Bear Cat 17692

SPRING, 3/4" OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

21

Bear Cat 18526-00

PULLEY, 7.5 OD X 1/2 IN BORE

$103.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18527-00

ASSEMBLY, CHIPPER VALVE
(Superseded to 71628-00)

$2142.99

$

Usually ships in 3-7 days

0

23

Bear Cat 18535-00

HOSE ASSY, -8 FMJIC / -8 FMJIC 90 DEG. X 61"

$106.99

$

Usually ships in 3-7 days

0

24

Bear Cat 36015-00

PUMP, PB CW HI/LO .646 DISP.
(Superseded to 31671-00)

$639.99

$

Usually ships in 3-7 days

0

25

Bear Cat 36017-00

ADAPTER, -10 MORING / .75 90 DEG. HOSE

$40.99

$

Usually ships in 3-7 days

0

26

Bear Cat 36082-00

HOSE, .75 X 19.75 100R4

$59.99

$

Usually ships in 3-7 days

0

27

41158

BUSHING

$

$

Not available

28

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

29

Bear Cat 69239

SPACER IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

30

Bear Cat 75206-12

WELMENT, PUMP MOUNT

$

$

Not available

31

Bear Cat 75208-12

BRACKET, IDLER MOUNT

$

$

Not available

32

Bear Cat 75209-12

PLATE, IDLER MOUNT

$

$

Not available

33

Bear Cat 75211-00

SPACER, 1/2 OD X 14 GA X .49
(Superseded to 73508-00)

$12.99

$

Usually ships in 3-7 days

0

34

Bear Cat 77138-00

ASSEMBLY, HYDRAULIC RESERVOIR, SERVICE PART

Note: (INCLUDES ITEMS 35 & 36)

$614.99

$

Usually ships in 3-7 days

0

35

Bear Cat 16897

DECAL, HYDRAULIC FLUID

$8.99

$

Usually ships in 3-7 days

0

36

Bear Cat 18518-00

CAP, W/DIPSTICK
(Superseded to 71594-00)

$77.99

$

Usually ships in 3-7 days

0
