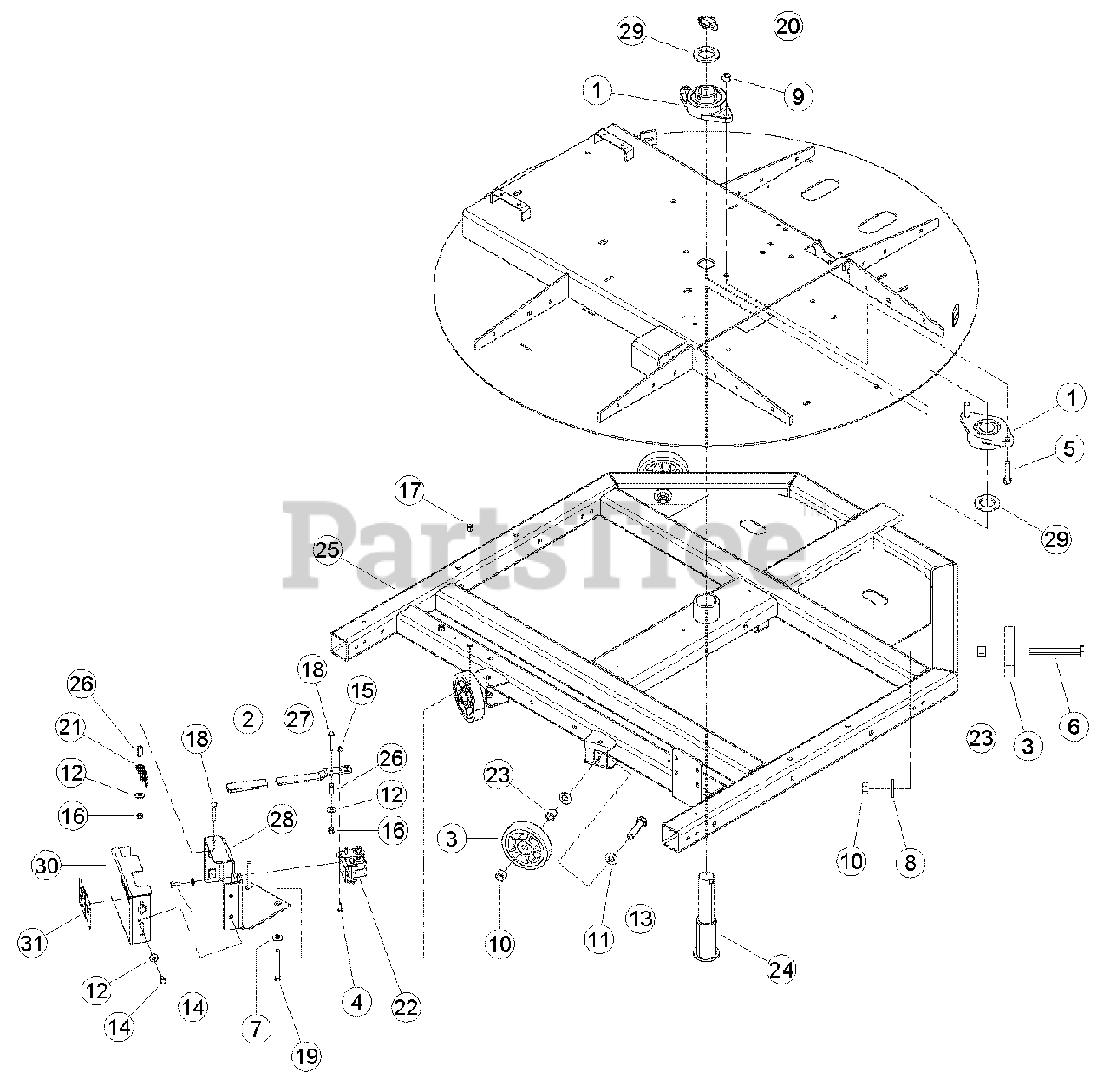

CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Frame (Part 2) Parts Diagram

8" Chipper, 720cc Subaru Turntable

Frame (Part 2) Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$83.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

3

14509-00

ROLLER, 5 X 1 X 5/8 NOFF AL

$

$

Not available

4

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

6

15022

BOLT, 5/8 X 5 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15035

WASHER, 5/8 FLAT ZP

$

$

Not available

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

10

15050

NUT, 5/8 CENTERLOCK GR5 ZP

$

$

Not available

11

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

15265

BOLT, 5/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

14

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

18

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP

$

$

Not available

19

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

20

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

21

Bear Cat 17692

SPRING, 3/4" OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18273-00

CALIPER, 210M BRAKE

$324.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73205-12

SPACER, 7/8 X 3/4

$

$

Not available

24

Bear Cat 73864-00

PIN, CHIPPER PIVOT

$184.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73867-12

WELDMENT, CHIPPER TRAILER

$2341.99

$

Usually ships in 3-7 days

0

26

Bear Cat 74048-00

TUBE, 1/2" OD X 1.00

$14.99

$

Usually ships in 3-7 days

0

27

Bear Cat 74407-12

HANDLE, BRAKE

$43.99

$

Usually ships in 3-7 days

0

28

Bear Cat 74563-12

WELDMENT, BRAKE MOUNT

$113.99

$

Usually ships in 3-7 days

0

29

Bear Cat 74814-12

SPACER, 2.00 X 1.50 X 0.25

$

$

Not available

30

Bear Cat 77132-00

ASSEMBLY, BRAKE COVER, SERVICE PART

Note: (INCLUDES ITEM 31)

$67.99

$

Usually ships in 3-7 days

0

31

Bear Cat 18606-00

DECAL, BRAKE

$9.99

$

Usually ships in 3-7 days

0
