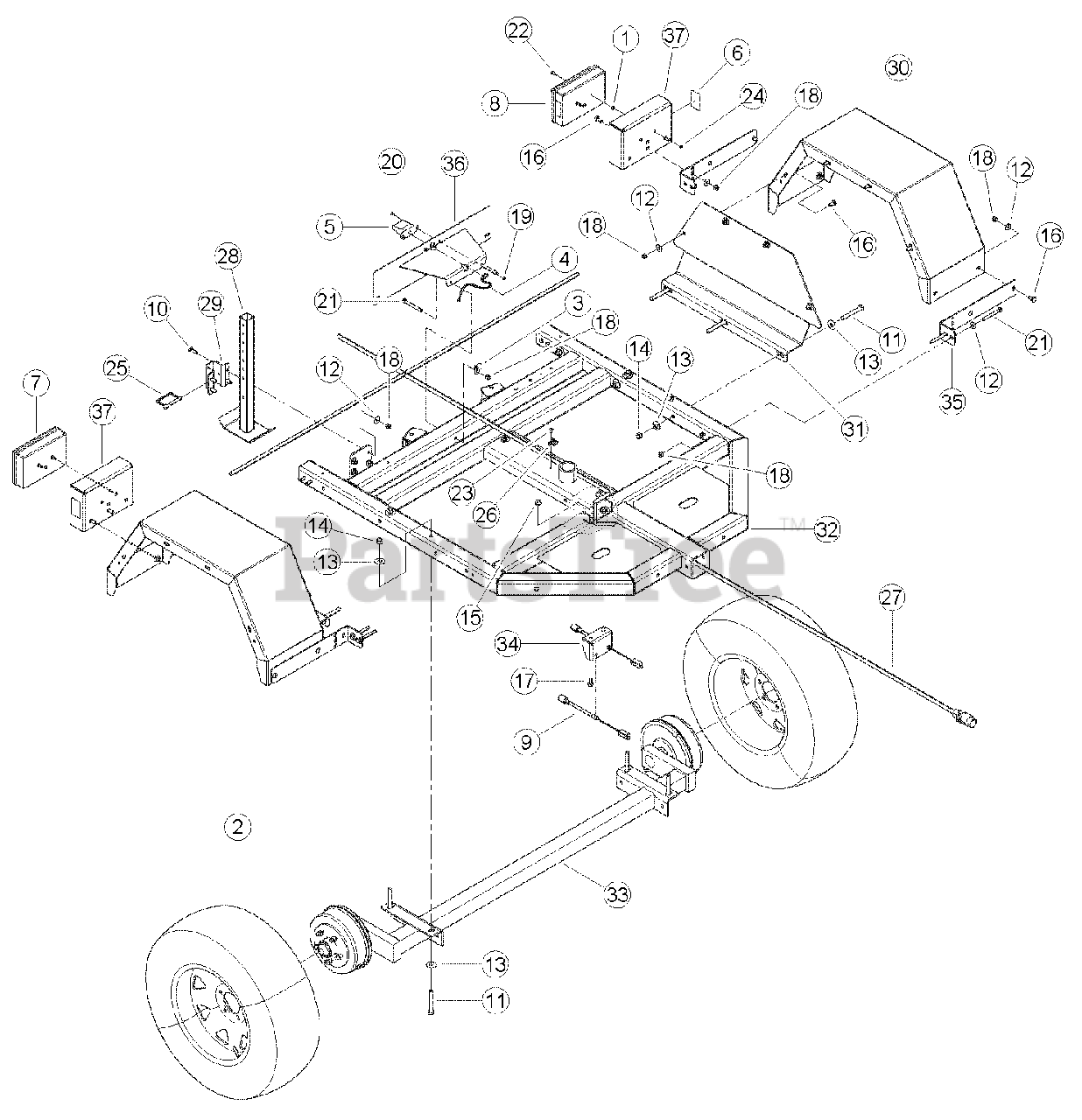

CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Frame (CE COMPLIANT) (Part 1) Parts Diagram

8" Chipper, 720cc Subaru Turntable

Frame (CE COMPLIANT) (Part 1) Parts Diagram

  • Title
1

0934-0004-00

GROMMET, 1/4 X 5/8 RUBBER

$

$

Not available

2

Bear Cat 12125

ASSY, 15 INCH TIRE + WHEEL

$556.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16" COATED

$

$

Not available

4

Bear Cat 14367-00

PLUG, 12 VOLT LIGHT

$8.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

6

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

9

Bear Cat 14585-00

CABLE, BRAKE

$69.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

11

15016

BOLT, 1/2 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

13

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

14

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

15

15052

NUT, 7/16 SERR FLANGE NC ZP

$

$

Not available

16

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

17

Bear Cat 15199

BOLT, 7/16 X 3/4 HHCS GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

19

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

20

15423

SCREW, MCH 10-24 X 1/2 PAN HD,PH ZP

$

$

Not available

21

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

22

15557

BOLT, 10-24 X 3/4 HHCS GR8 PLAIN

$

$

Not available

23

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

24

Bear Cat 15830-00

NUT, #10-24 K-LOCK ZP

$2.49

$

Usually ships in 3-7 days

0

25

16808

PIN, 3/8 X 2-3/4 SNAP

$

$

Not available

26

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

27

Bear Cat 18570-00

HARNESS, CHIPPER TRAILER

$250.99

$

Usually ships in 3-7 days

0

28

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

29

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

30

Bear Cat 73865-12

FENDER, CHIPPER

$

$

Not available

31

Bear Cat 73866-12

BRACKET, FENDER

$

$

Not available

32

Bear Cat 73867-12

WELDMENT, CHIPPER TRAILER

$2341.99

$

Usually ships in 3-7 days

0

33

Bear Cat 74564-00

ASSEMBLY, 2500LB TORSION AXLE

$2912.99

$

Usually ships in 3-7 days

0

34

Bear Cat 74627-12

WELDMENT,CABLE BRACKET

$

$

Not available

35

Bear Cat 75210-12

ANGLE, FENDER GUSSET

$38.99

$

In Stock, only 1 left!

0

36

Bear Cat 75268-12

WELDMENT, LICENSE PLATE

$118.99

$

Usually ships in 3-7 days

0

37

Bear Cat 75271-12

BRACKET, TAIL LIGHT

$

$

Not available
