CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Disk Housing Parts Diagram

8" Chipper, 720cc Subaru Turntable

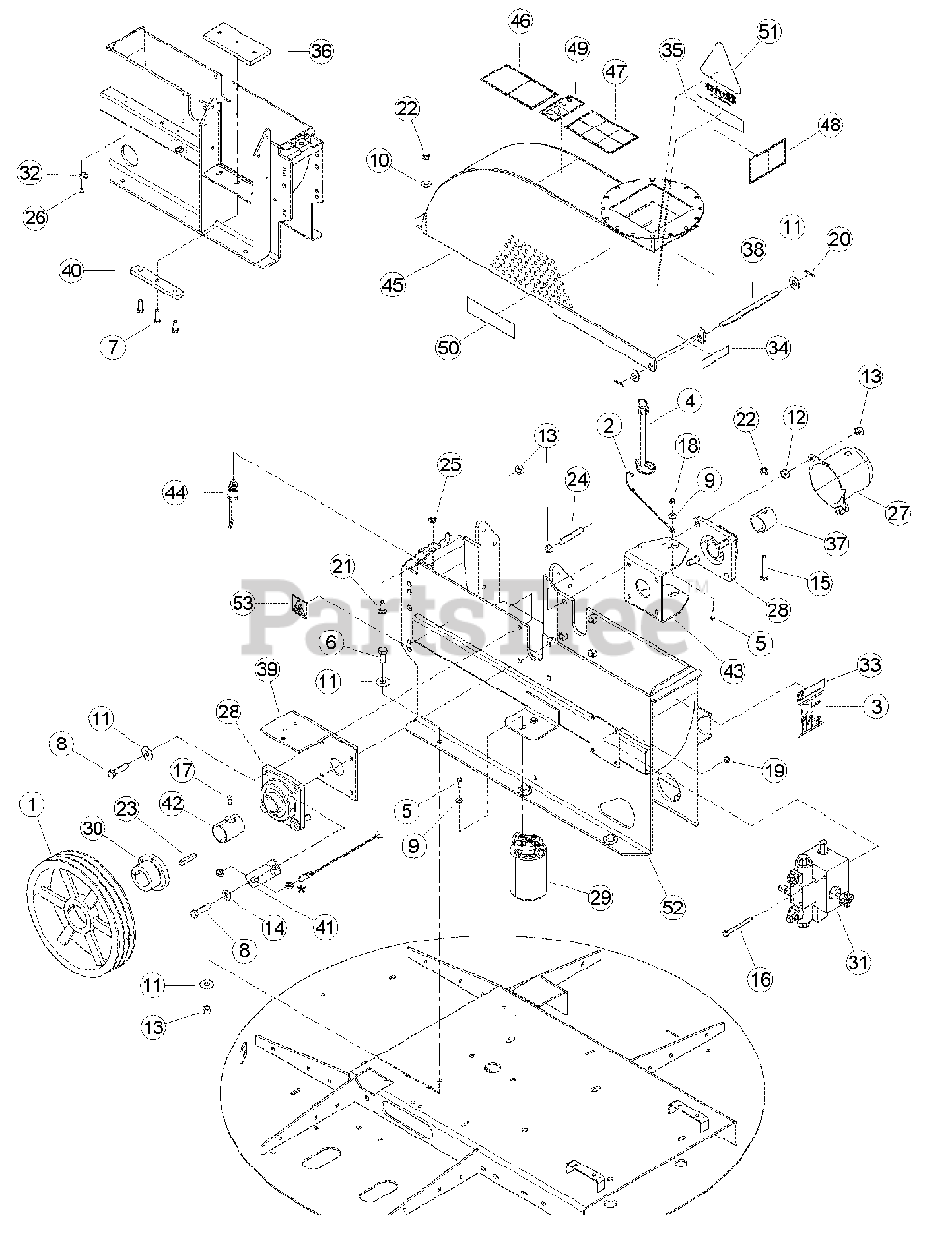

Disk Housing Parts Diagram

  • Title

1

12455

SHEAVE, 3BQ12.4, SK

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

Bear Cat 14467-00

DECAL, 114 DB (CE COMPLIANT MODELS)

$38.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W LYNCH

$37.99

$

Usually ships in 3-7 days

0

5

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

7

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

8

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

9

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

10

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

11

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

12

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

13

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

14

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

15

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

16

Bear Cat 15124

BOLT, 5/16 X 3-1/2 HEX HD ZP

$

$

Not available

17

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

18

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

20

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

21

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

22

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

23

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

24

Bear Cat 15481

STUD, 1/2-13 X 3 B7 ZP

$17.99

$

Usually ships in 3-7 days

0

25

Bear Cat 15775-00

NUT, 5/8 JAM

$12.99

$

Usually ships in 3-7 days

0

26

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

27

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

28

Bear Cat 16553

BEARING, 1-3/4" 4 BOLT FLANGE

$

$

Not available

29

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

Bear Cat 16922

ELEMENT, HYD FILTER

$48.99

$

Usually ships in 3-7 days

0

30

Bear Cat 17248

BUSHING, SK 1-3/4"

$

$

Not available

31

Bear Cat 18527-00

ASSEMBLY, CHIPPER VALVE
(Superseded to 71628-00)

$2142.99

$

Usually ships in 3-7 days

0

Bear Cat 18602-00

SWITCH, PRESSURE
(Superseded to 30132-00)

$439.99

$

Usually ships in 3-7 days

0

32

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

33

Bear Cat 18554-00

DECAL, 76824 INFORMATION (CE COMPLIANT MODELS)

$10.99

$

Usually ships in 3-7 days

0

34

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT MODELS)

$9.99

$

Usually ships in 3-7 days

0

35

Bear Cat 31458-00

DECAL, MODEL CH8720IH

$9.99

$

Usually ships in 3-7 days

0

36

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

37

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

38

Bear Cat 71329

SHAFT, CHIPPER TOP PIVOT

$48.99

$

Usually ships in 3-7 days

0

39

Bear Cat 71339

WELDMENT, REAR GUARD SUPPORT

$

$

Not available

40

Bear Cat 72173-12

SPACER, CHIPPER ANVIL

$116.99

$

In Stock, only 1 left!

0

41

Bear Cat 73242-12

BRACKET, PROXIMITY SENSOR

$

$

Not available

42

Bear Cat 74555-12

WELDMENT, SPACER 2.0 X 2.30

$

$

Not available

43

Bear Cat 75960-12

BRACKET, DISK LOCK

$

$

Not available

44

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0

45

Bear Cat 77123-00

ASSEMBLY, CHIPPER TOP HOUSING, SERVICE PART (INCLUDES ITEMS 46 - 51)

$

$

Not available

46

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

47

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS

$7.49

$

Usually ships in 3-7 days

0

48

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

49

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

50

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X

$6.49

$

Usually ships in 3-7 days

0

51

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

52

Bear Cat 77134-00

ASSEMBLY, CHIPPER BOTTOM, SERVICE PART (INCLUDES ITEM 53)

$2011.99

$

Usually ships in 3-7 days

0

53

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

Bear Cat 18472-00

SENSOR, PROXIMITY (REPLACEMENT PART)
(Superseded to 32108-00)

$181.99

$

Usually ships in 3-7 days

0
