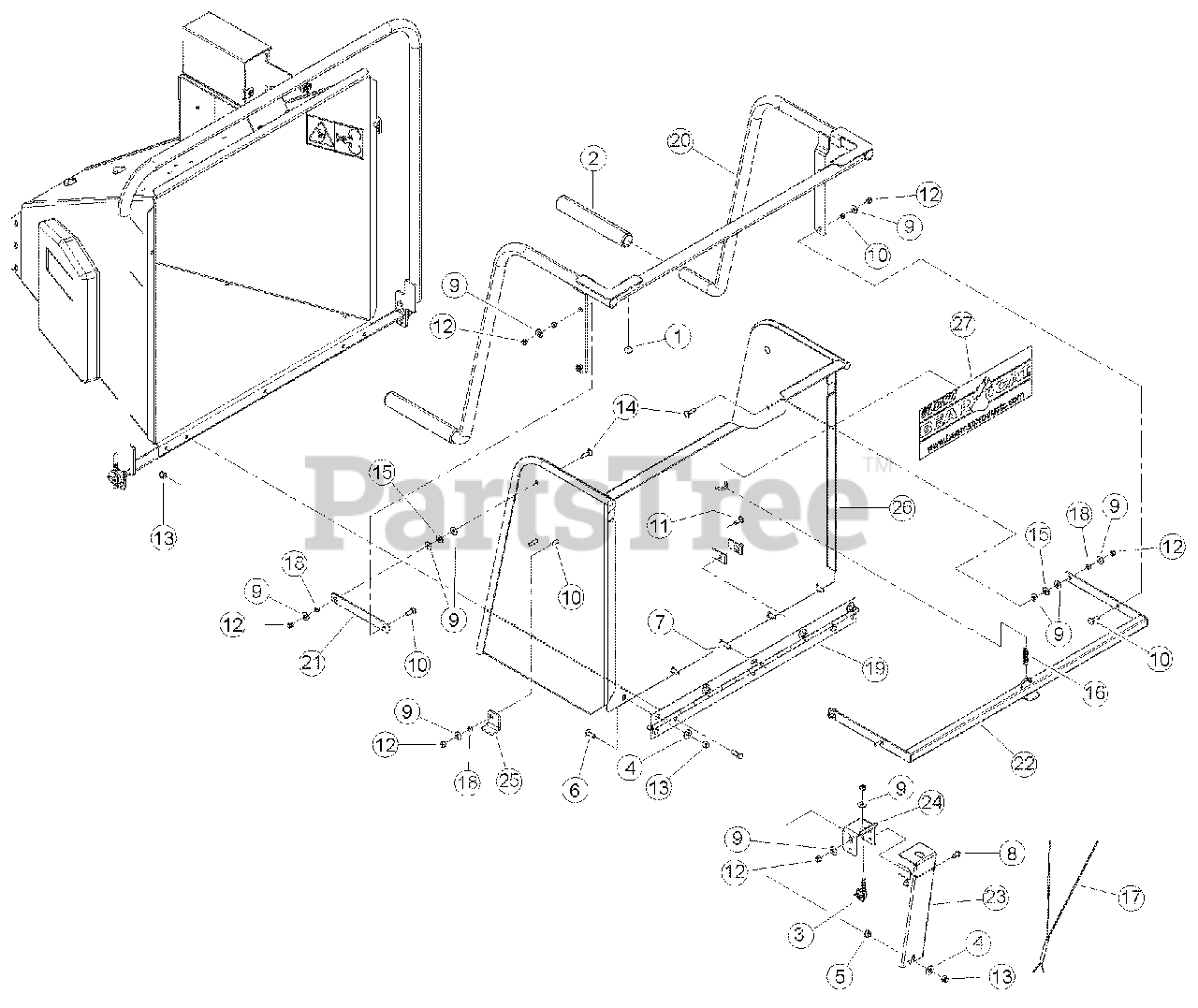

CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0016AW002730 - 5VJAA0012CW003733) Chute (CE COMPLIANT) (Part 2) Parts Diagram

8" Chipper, 720cc Subaru Turntable

Chute (CE COMPLIANT) (Part 2) Parts Diagram

  • Title

1

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

3

SWITCH, N/C MOMENTARY PLUNGER (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77536-00)

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

5

Bear Cat 15051

NUT, 3/8 SERR FLANGE ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

7

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

11

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

12

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

15

Bear Cat 15409

WASHER, 5/16 ID. X 7/8 OD. NYLON FLAT

$

$

Not available

16

Bear Cat 16698

SPRING 1/2 X 2.00 LG,ZP

$21.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36355-00

HARNESS, SAFETY BAR

$85.99

$

Usually ships in 3-7 days

0

18

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

19

Bear Cat 71492

HINGE, EXTENSION TRAY

$

$

Not available

20

Bear Cat 74155-35

WELDMENT, KNEEBAR

$432.99

$

Usually ships in 3-7 days

0

21

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

22

Bear Cat 74161-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

23

Bear Cat 74167-12

SHIELD, KNEEBAR SWITCH

$111.99

$

Usually ships in 3-7 days

0

24

Bear Cat 74203-12

BRACKET, SWITCH

$52.99

$

Usually ships in 3-7 days

0

25

Bear Cat 74222-12

LOCK, SAFETY BAR

$54.99

$

Usually ships in 3-7 days

0

26

Bear Cat 77128-00

ASSEMBLY, EXTENSION TRAY, SERVICE PART

Note: (INCLUDES ITEM 27)

$1038.99

$

Usually ships in 3-7 days

0

27

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0
