CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005118) Switch Box NON-CE COMPLIANT (VIN: 5VJAA0010FW004576 AND BELOW) Parts Diagram

8" Chipper, 720cc Subaru Turntable

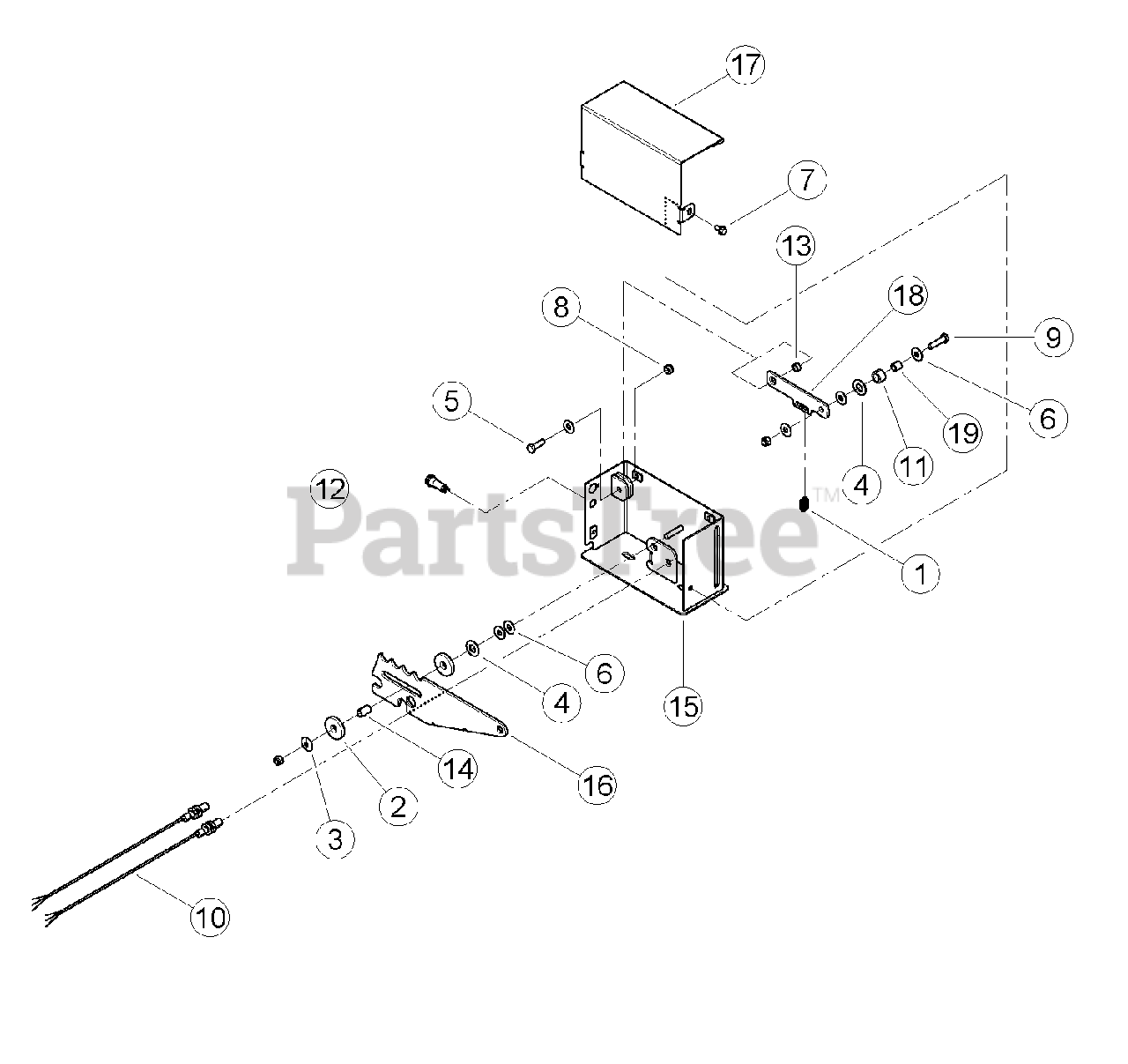

Switch Box NON-CE COMPLIANT (VIN: 5VJAA0010FW004576 AND BELOW) Parts Diagram

  • Title
1

Bear Cat 12620

SPRING, CONTROL BAR

$24.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHM SPACER .515 ID X 1.50 OD

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 12622

WASHER, SPRING

$4.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

5

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

15344

BOLT, 1/4 X 1/2 SERRATED FLANGE GR5 ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NYLOCK

$

$

Not available

9

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HHCS GR5 NC ZP

$

$

Not available

10

Bear Cat 32108-00

SENSOR, PROXIMITY

Note: (REPLACEMENT PART)

$181.99

$

In Stock, only 1 left!

0

11

Bear Cat 18548-00

ROLLER, NYLON .750 OD X .502 ID X .440

$3.99

$

Usually ships in 3-7 days

0

12

Bear Cat 36356-00

LED, TRI-COLOR 12V 3-TERMINAL BASE

$78.99

$

Usually ships in 3-7 days

0

13

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

14

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

15

Bear Cat 77129-00

WELDMENT, SWITCH BOX

$301.99

$

Usually ships in 3-7 days

0

16

Bear Cat 75140-12

BAR, SWITCH CONTROL

$51.99

$

Usually ships in 3-7 days

0

17

COVER, CONTROL BOX

Note: (REPLACED AND SUPERSEDED 75141-12. FOR SERVICE ORDER PN 70006-00)

$

$

Not available

18

Bear Cat 75184-12

LINK, DETENT

$26.99

$

Usually ships in 3-7 days

0

19

Bear Cat 75185-00

SPACER, .50 OD X .35 ID X .47

$11.99

$

Usually ships in 3-7 days

0
