CH 8720 iH - Bear Cat 8" Chipper, 720cc Subaru Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005118) Idler (B) Parts Diagram

8" Chipper, 720cc Subaru Turntable

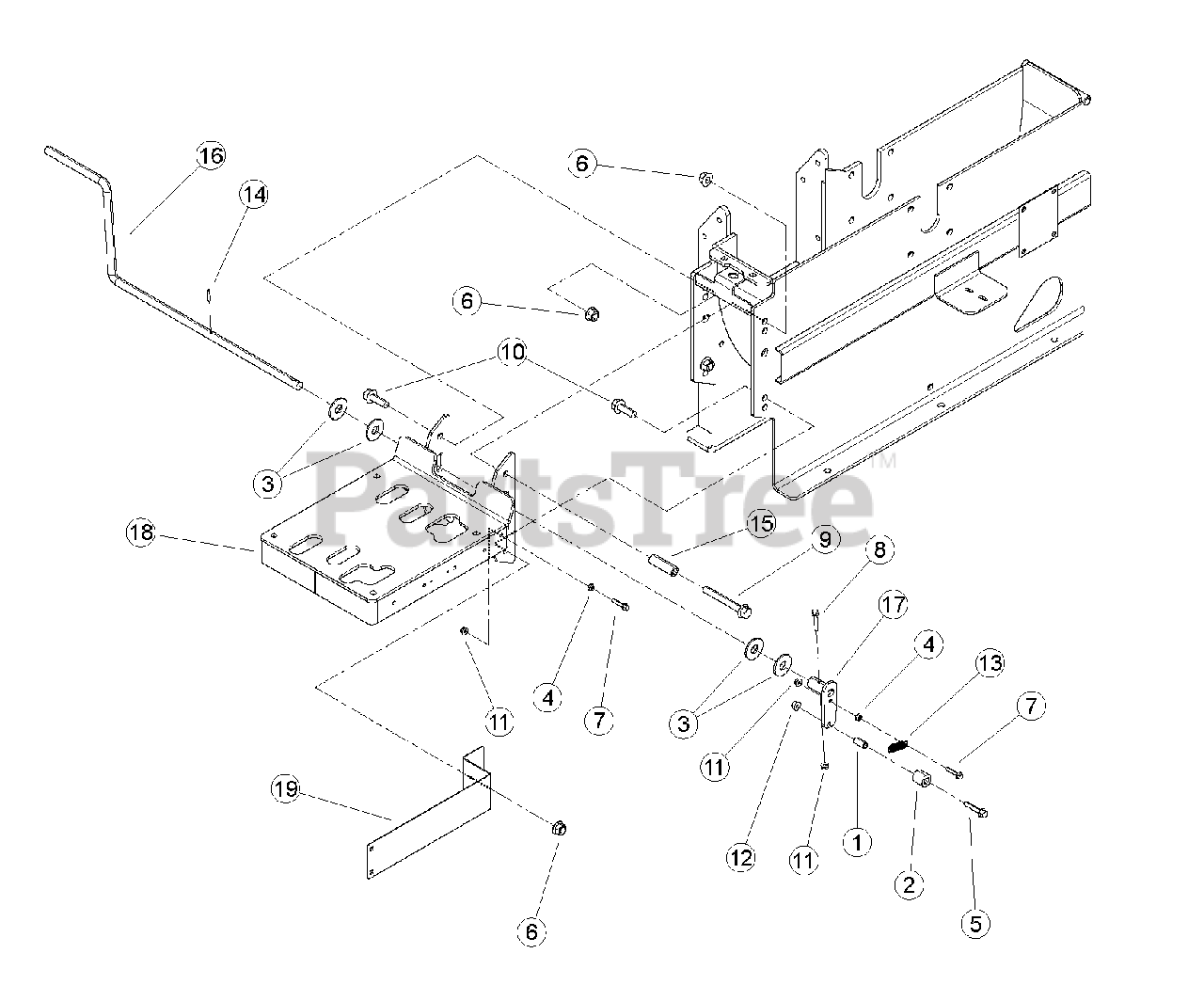

Idler (B) Parts Diagram

  • Title

1

Bear Cat 14635-00

SPACER, 0.5 X 1.00

$12.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15035

WASHER, 5/8" FLAT ZP

$

$

Not available

4

15053

NUT, 1/4"-20 SERRATED FLANGE NC ZP

$

$

Not available

5

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

8

15168-00

BOLT, 1/4 X 1-1/2 FLANGE NC

$

$

Not available

9

15193-00

BOLT, 1/2-13 X 4 HWH GR5 CZP

$

$

Not available

10

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

11

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

13

Bear Cat 16698

SPRING, 1/2 X 2.00 LG, ZP

$21.99

$

Usually ships in 3-7 days

0

14

Bear Cat 18290-00

PIN, ROLL 3/16 X 1"

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 46885-00

SPACER, .75 X 2.06

$30.99

$

Usually ships in 3-7 days

0

16

Bear Cat 75175-12

HANDLE, ENGAGEMENT

$

$

Not available

17

Bear Cat 75176-12

WELDMENT, SHAFT ENGAGEMENT ARM

$

$

Not available

18

Bear Cat 75177-12

WELDMENT, ENGINE BASE

$

$

Not available

19

Bear Cat 75233-12

SHIELD, HYD PUMP

$

$

Not available
