CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: G05351 & Above) Drive Assembly (B) (Part 2) Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

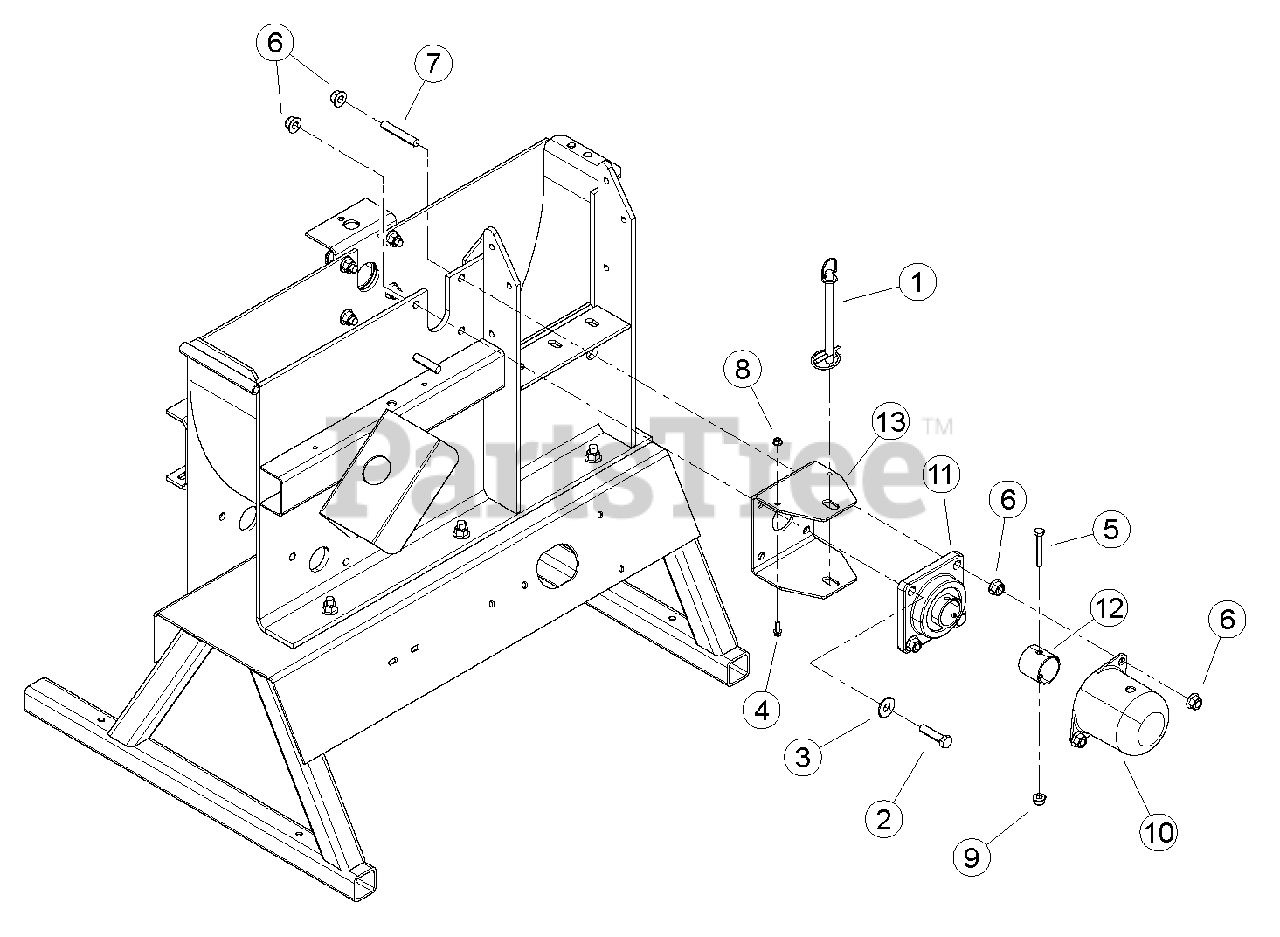

Drive Assembly (B) (Part 2) Parts Diagram

  • Title

1

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W LYNCH

$37.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15015

BOLT, 1/2 X 2 GR5 HEX CAPSCREW ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

4

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

5

Bear Cat 15116

BOLT, 3/8 X 2-1/2 GR5 HHCS ZP

$

$

Not available

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 15481

STUD, 1/2"-13 X 3"LG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

11

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

12

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

13

Bear Cat 75960-12

BRACKET, ROTOR LOCK

$

$

Not available
