CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: G05351 & Above) Chute Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

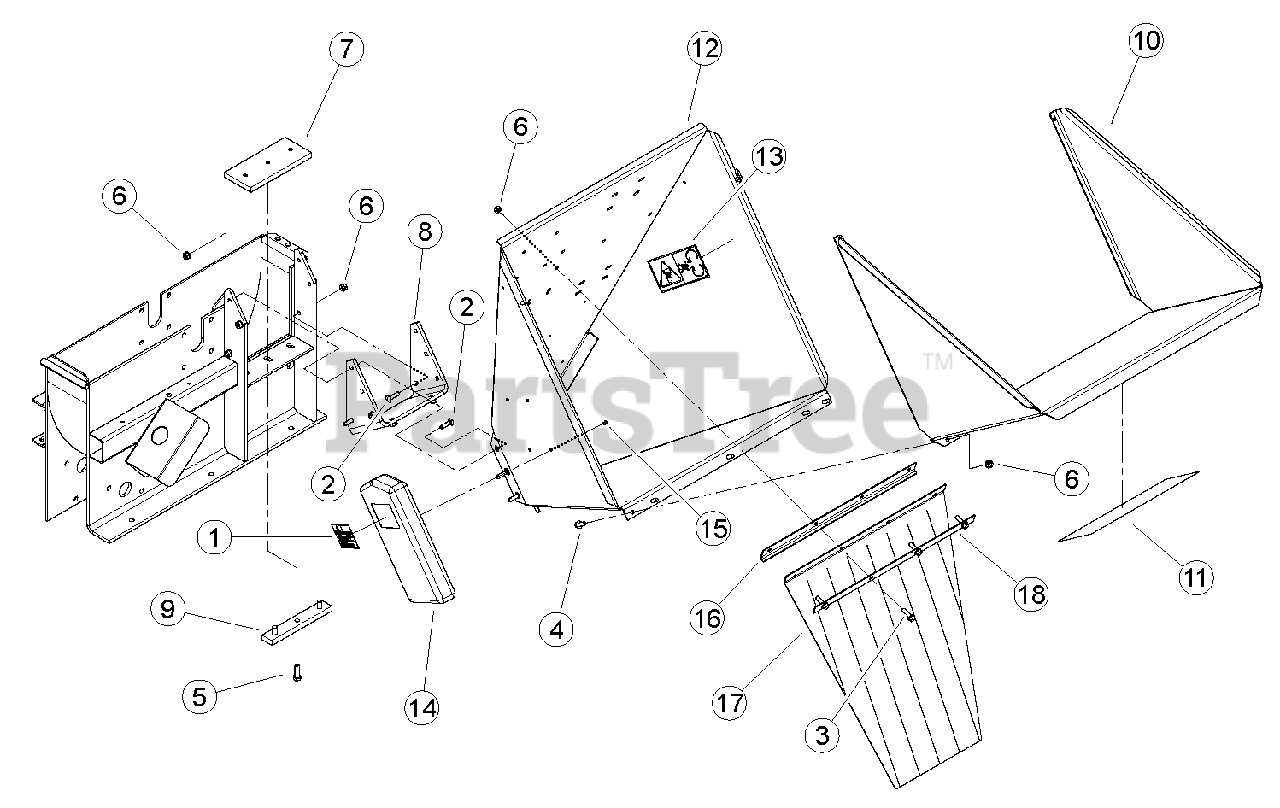

Chute Parts Diagram

  • Title

1

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

2

15058

BOLT, 3/8 X 1-1/2" GR5 NC ZP

$

$

Not available

3

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

4

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

5

15855-00

BOLT, 1/2 X 1-1/2 GR8 NC ZP HEX HD

$

$

Not available

6

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

8

Bear Cat 71133-12

BASE, CHIPPER CHUTE

$

$

Not available

9

Bear Cat 72173-12

SPACER, CHIPPER ANVIL

$116.99

$

In Stock, only 1 left!

0

10

Bear Cat 76884-00

ASSEMBLY, CHUTE EXTENSION (CE COMPLIANT ONLY)

Note: (INCLUDES ITEM 11)

$

$

Not available

11

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

12

Bear Cat 72062

ASSEMBLY, CHIPPER CHUTE

Note: (INCLUDES ITEMS 1, 3, 6 & 13-18)

$1210.99

$

Usually ships in 3-7 days

0

13

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

14

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

15

15497

RIVET, 1/4 X 1/2 DOME HD BLIND SS

$

$

Not available

16

Bear Cat 71273

ANGLE, FLAP ANCHOR

$

$

Not available

17

Bear Cat 71274

FLAP, CHIPPER CHUTE

$105.99

$

Usually ships in 3-7 days

0

18

Bear Cat 71341

STRIP, FLAP RETAINER

$44.99

$

Usually ships in 3-7 days

0
