CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: G05351 & Above) Base Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

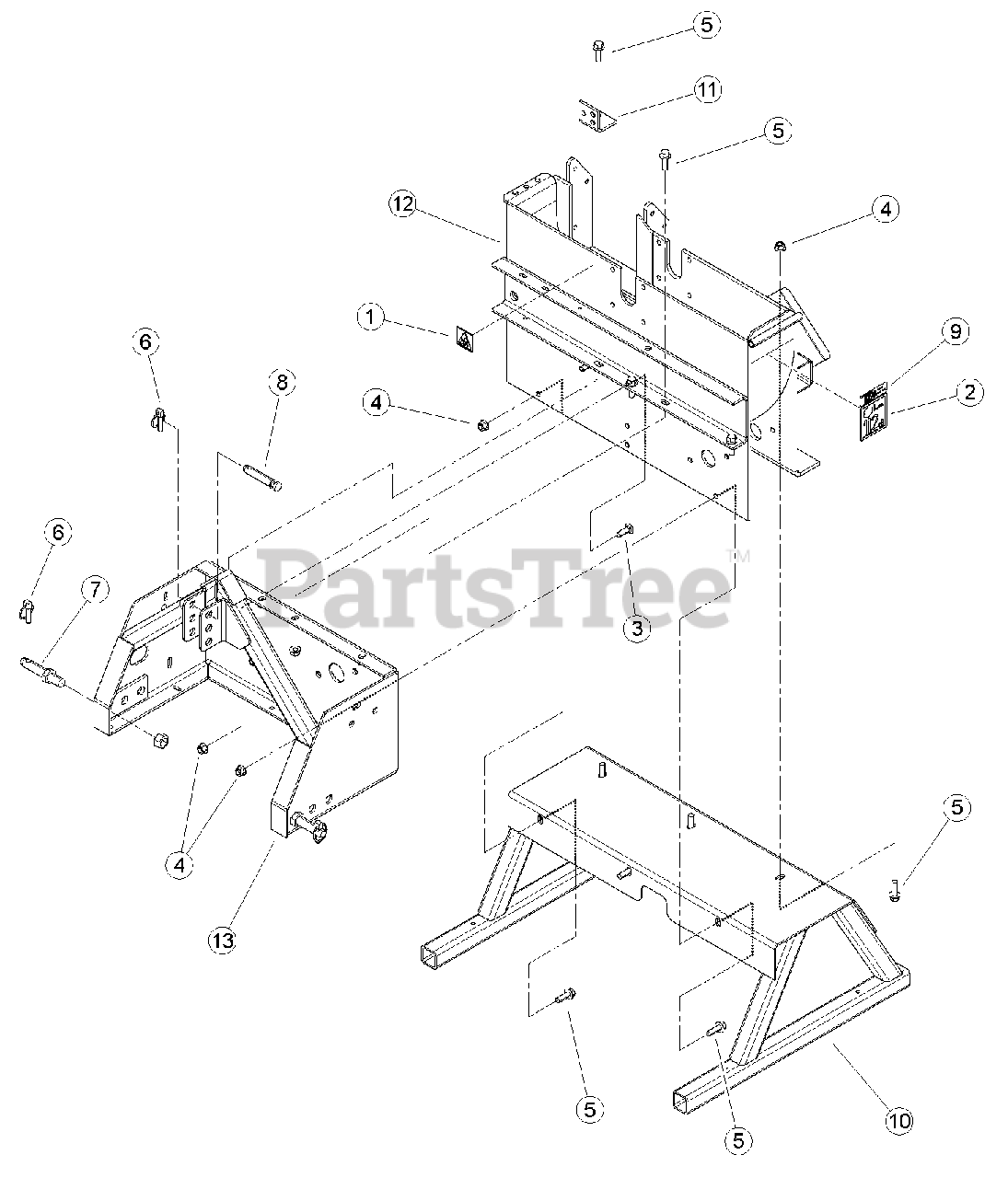

Base Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14343-00

DECAL, 112 DB (CE COMPLIANT ONLY)

$12.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15157

BOLT, 1/2 X 1-1/2" GR5 ZP CRG

$8.49

$

Usually ships in 3-7 days

0

4

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

5

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

6

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

7

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5" LG

$24.99

$

Usually ships in 3-7 days

0

8

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2" LG

$14.99

$

Usually ships in 3-7 days

0

9

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT ONLY)

$9.99

$

Usually ships in 3-7 days

0

10

Bear Cat 71232

WELDMENT, PTO STAND

$

$

Not available

11

Bear Cat 71674-12

ANGLE, LOWER SHOCK

$

$

Not available

12

74229-35

WELDMENT, CHIPPER BOTTOM

$

$

Not available

13

77764-35

WELDMENT, HITCH SUPPORT

$

$

Not available
