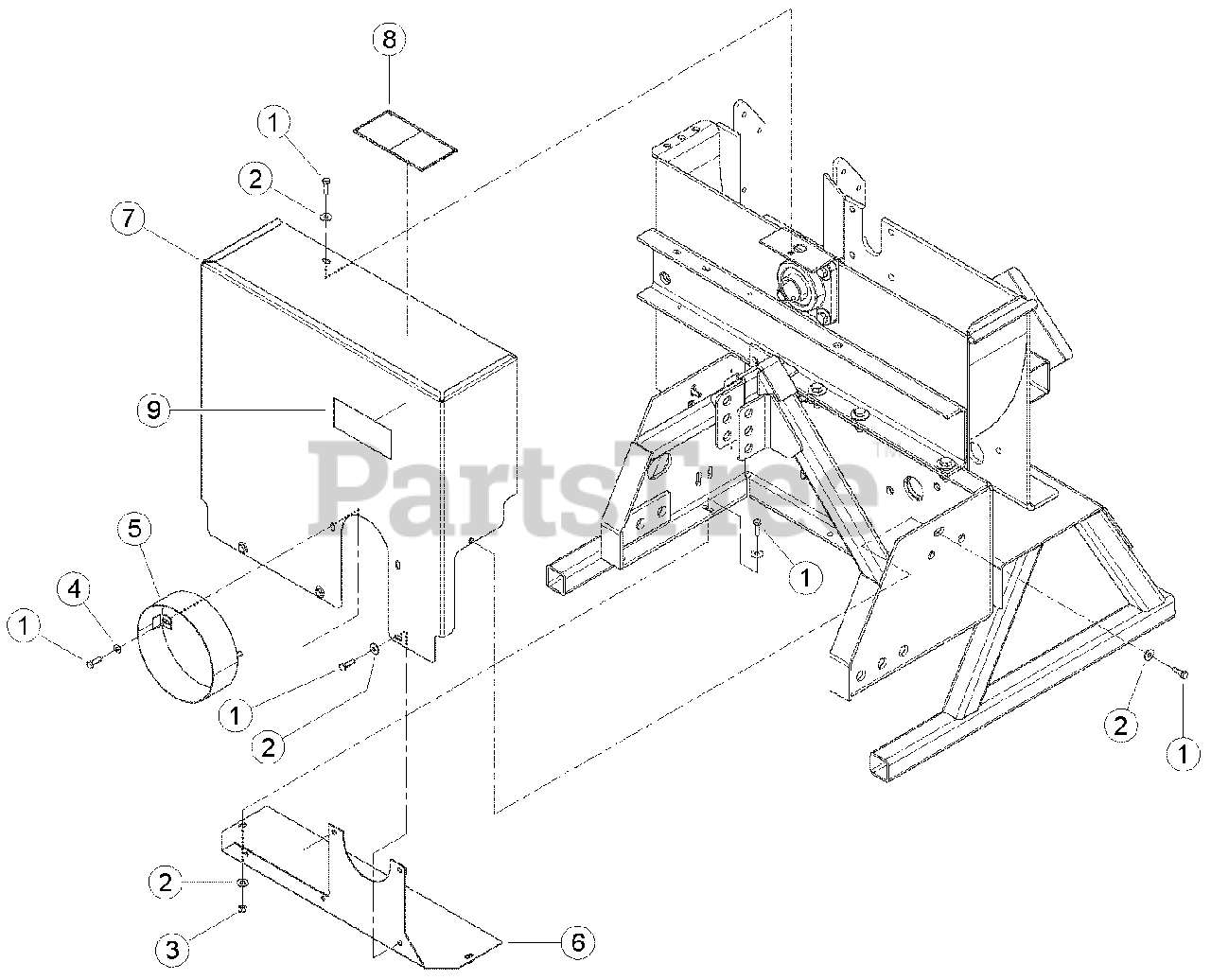

CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: B00001 - C09929) Shields Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

Shields Parts Diagram

  • Title
1

Bear Cat 15219

BOLT, 5/16 X 1 GR5 HEX HD NC ZP

$

$

Not available

2

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

3

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

4

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

5

Bear Cat 70442

JOINT SHIELD WELDMENT

$93.99

$

Usually ships in 3-7 days

0

6

Bear Cat 71320

WELDMENT, LOWER BELT GUARD

$

$

Not available

7

Bear Cat 77124-00

ASSEMBLY, UPPER BELT GUARD, SERVICE PART

Note: (INCLUDES ITEMS 8 & 9)

$321.99

$

Usually ships in 3-7 days

0

8

Bear Cat 12168

DECAL, PTO DANGER ISO

$9.99

$

Usually ships in 3-7 days

0

9

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0
