CH 8540 - Bear Cat 8" Chipper, 540cc PTO Gravity Feed (SN: B00001 - C09929) Feed Chute Parts Diagram

8" Chipper, 540cc PTO Gravity Feed

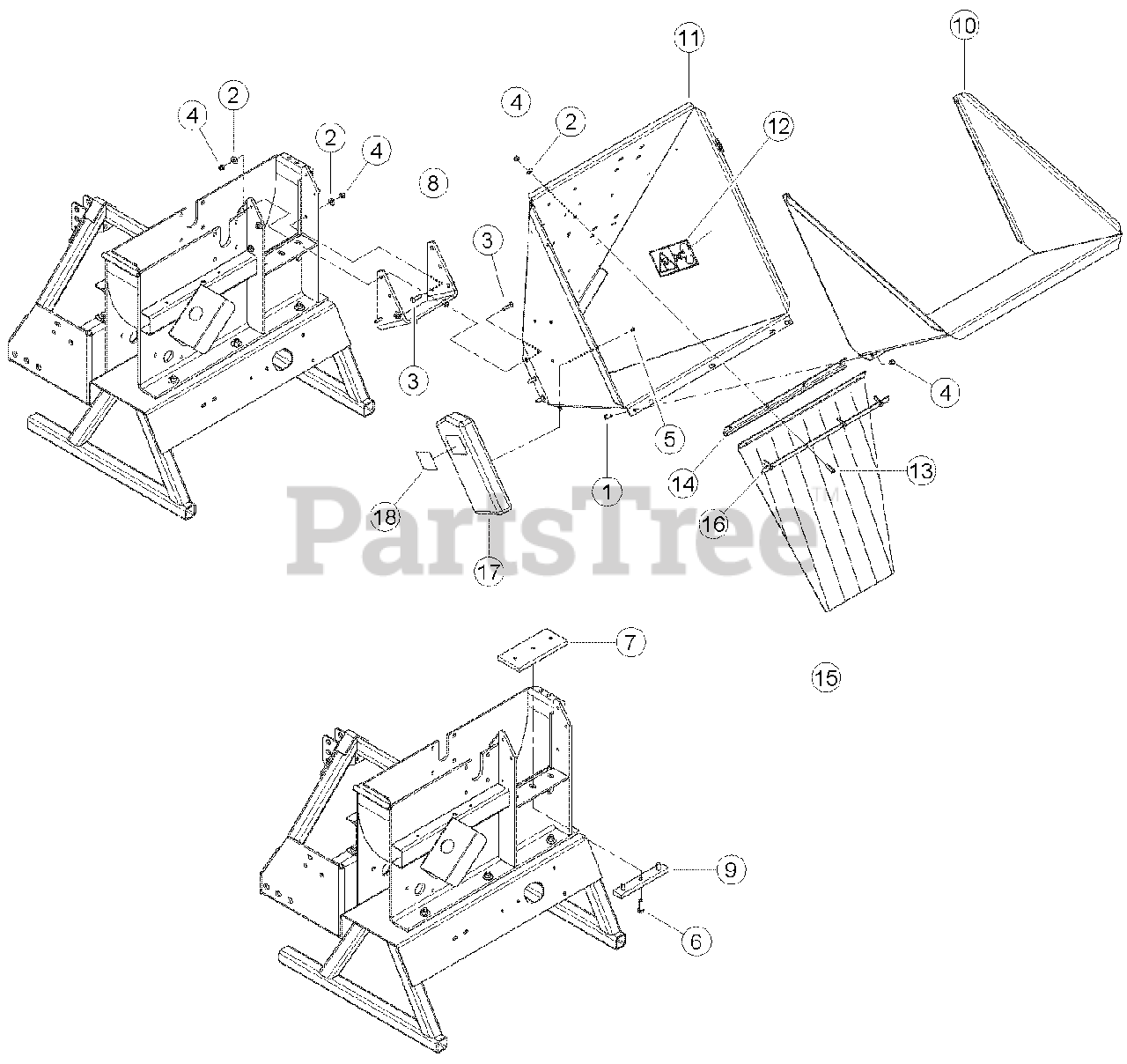

Feed Chute Parts Diagram

  • Title
1

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

3

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

4

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

5

15497

RIVET, 1/4 X 1/2 DOME HD BLIND SS

$

$

Not available

6

15855-00

BOLT, 1/2 X 1-1/2 HEX HD GR8 NC ZP

$

$

Not available

7

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

8

Bear Cat 71133-12

BASE, CHIPPER CHUTE

$

$

Not available

9

Bear Cat 72173-12

SPACER, CHIPPER ANVIL

$116.99

$

In Stock, only 1 left!

0

10

72637-12

WELDMENT, CHUTE EXTENTION TRAY

$

$

Not available

11

Bear Cat 72062

ASSEMBLY, CHIPPER CHUTE, SERVICE PART

Note: (INCLUDES ITEMS 2, 4 & 12-16)

$1210.99

$

Usually ships in 3-7 days

0

12

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

13

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 71273

ANGLE, FLAP ANCHOR

$

$

Not available

15

Bear Cat 71274

FLAP, CHIPPER CHUTE

$105.99

$

Usually ships in 3-7 days

0

16

Bear Cat 71341

STRIP, FLAP RETAINER

$44.99

$

Usually ships in 3-7 days

0

17

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER, SERVICE PART

Note: (INCLUDES ITEM 18)

$89.99

$

Usually ships in 3-7 days

0

18

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0
