CH 800 H - Bear Cat 8" Chipper, Skid Steer (SN: D00001 & Above) Feed Roller Parts Diagram

8" Chipper, Skid Steer

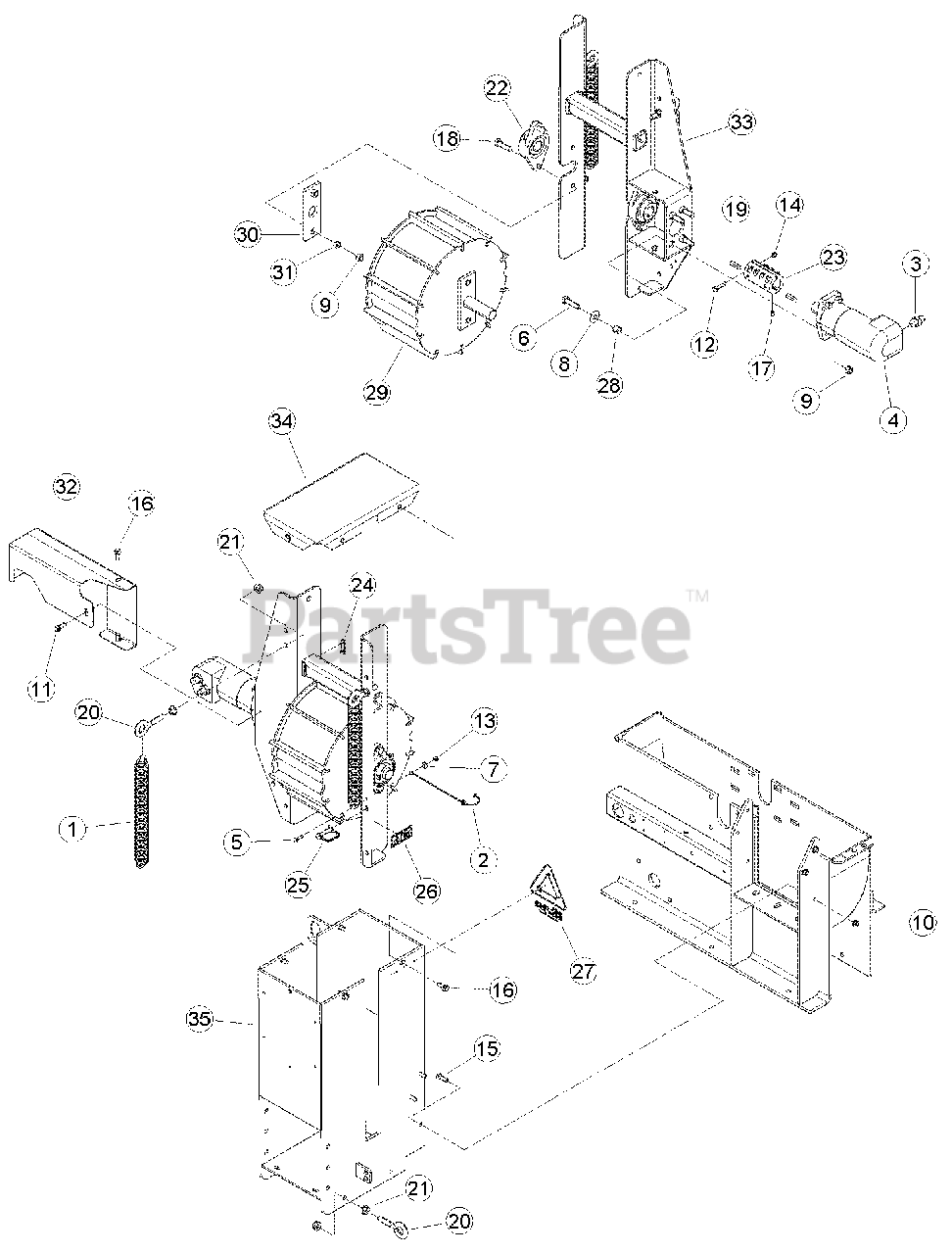

Feed Roller Parts Diagram

  • Title

1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

4

Bear Cat 13937-00

MOTOR, 24 CU IN HYDRAULIC

$

$

Not available

5

15002

BOLT, 1/4 X 1 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

10

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

11

15076

SCREW, 3/8-16 X 1 LG THD CUTT ZP

$

$

Not available

12

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

15

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

16

15382

BOLT, 3/8 X 1 SERR FLANGE GR5 NC ZP

$

$

Not available

17

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

18

15478

BOLT, 1/2 X 1-3/4 HEX HD GR5 NC ZP

$

$

Not available

19

Bear Cat 15498

KEY, 5/16 SQUARE X 1-1/2 LONG

$

$

Not available

20

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

21

NUT, 1/2 SERR FLANGE NC ZP (WAS 15616, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 15011)

$

$

Not available

22

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

23

Bear Cat 16683

COUPLER, 1-1/4" SHAFT

$

$

Not available

24

17434

WEAR PAD, STD.SPRING HD FRONT

$

$

Not available

25

Bear Cat 17879

PIN, 3/8 X 1-1/2 SNAP USABLE LGH

$

$

Not available

26

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

27

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

28

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

29

Bear Cat 77135-00

ASSEMBLY, TOP GRAB ROLLER SERVICE PART

$814.99

$

Usually ships in 3-7 days

0

30

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

31

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

32

73689-12

WELDMENT, HYD MOTOR COVER

$

$

Not available

33

Bear Cat 77150-12

WELDMENT, ROLLER SLIDE

$

$

Not available

34

Bear Cat 77151-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

35

Bear Cat 77152-35

WELDMENT, ROLLER SUPPORT

$

$

Not available
