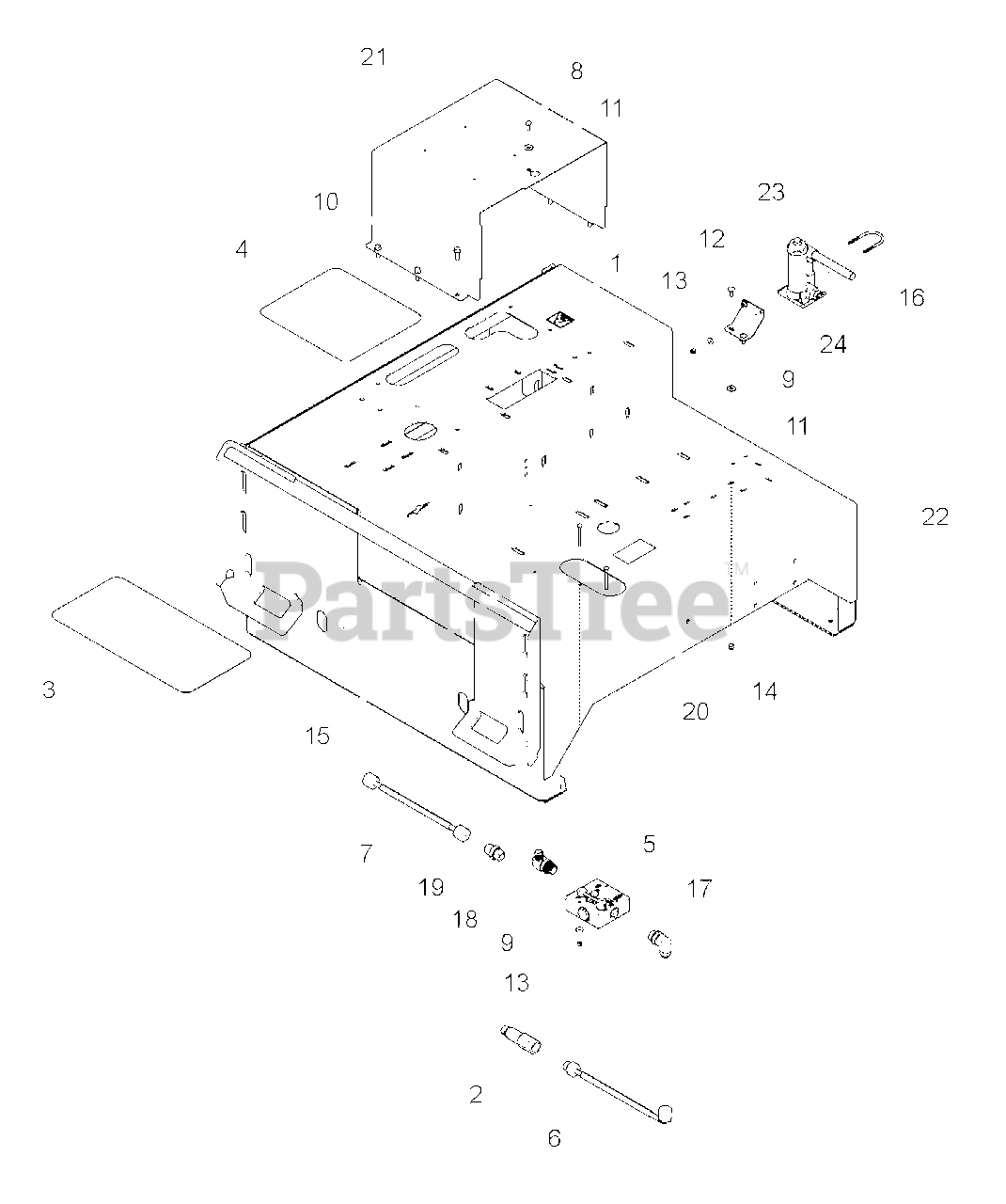

CH 800 H - Bear Cat 8" Chipper, Skid Steer (SN: D00001 & Above) Base (SN: E06581 - CURRENT) Parts Diagram

8" Chipper, Skid Steer

Base (SN: E06581 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

COUPLER, MALE QUICKTACH (REPLACED AND SUPERSEDED PN 12562. FOR SERVICE ORDER PN 12563)

$

$

Not available

3

Bear Cat 12564

TREAD, SAFETY

$45.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12566

TREAD, SAFETY

$41.99

$

Usually ships in 3-7 days

0

5

Bear Cat 13898-00

VALVE, 30 GPM FLOW CONTROL

$812.99

$

Usually ships in 3-7 days

0

6

13926-00

HOSE, .75 X 119 -12MORING/-12FMJIC90

$

$

Not available

7

13928-00

HOSE, .75 X 40 -12FMJIC/-12FMJIC

$

$

Not available

8

Bear Cat 15003

BOLT, 5/16-18 X 3/4 GR5 HEX HD

$

$

Not available

9

15030

WASHER, 1/4 FLAT

$

$

Not available

10

15076

SCREW, 3/8-16 X 1 T23 HWH MAGNI 565 SILVER

$

$

Not available

11

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

12

Bear Cat 15349

BOLT, 5/16-18 X 7/8 GR5 CRG

$

$

Not available

13

Bear Cat 15355

NUT, 1/4-20 NE NYLOCK

$

$

Not available

14

Bear Cat 15356

NUT, 5/16-18 NE NYLOCK

$

$

Not available

15

15464

BOLT, 1/4 X 2-1/2" HHCS GR5 ZP

$

$

Not available

16

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

17

16297

ADAPTER, -12MORING/-12MJIC 90 DEG

$

$

Not available

18

16573

ADAPTER, -12MORING/-10MJIC 90 DEG

$

$

Not available

19

16874

ADAPTER, -12MORING/-12MJIC

$

$

Not available

20

Bear Cat 18556-00

DECAL, FEED SPEED

$7.49

$

Usually ships in 3-7 days

0

21

73018-12

WELDMENT, HYDRAULIC MOTOR COVER (CH800H)

$

$

Not available

22

73019-12

WELDMENT, CHIPPER BASE

$

$

Not available

23

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

24

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available
