CH 800 H - Bear Cat 8" Chipper, Skid Steer (SN: D00001 & Above) Base (SN: D00001 - E01481) Parts Diagram

8" Chipper, Skid Steer

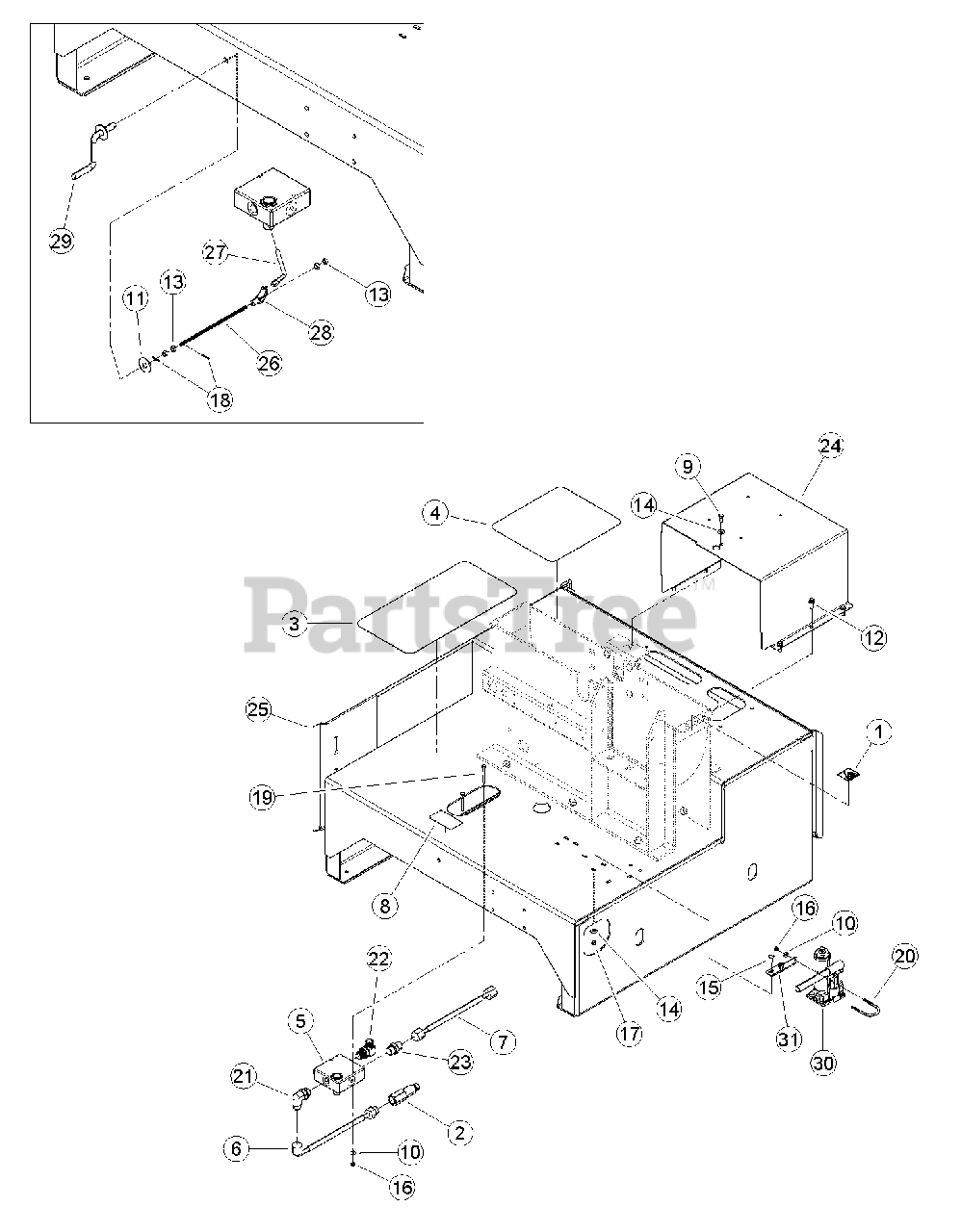

Base (SN: D00001 - E01481) Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

COUPLER, MALE QUICKTACH (REPLACED AND SUPERSEDED PN 12562. FOR SERVICE ORDER PN 12563)

$

$

Not available

3

Bear Cat 12564

TREAD, SAFETY

$45.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12566

TREAD, SAFETY

$41.99

$

Usually ships in 3-7 days

0

5

Bear Cat 13898-00

VALVE, 30 GPM FLOW CONTROL

$812.99

$

Usually ships in 3-7 days

0

6

13926-00

HOSE, .75 X 119 -12 MORING / -12 FMJIC 90 DEG.

$

$

Not available

7

13928-00

HOSE, .75 X 40 -12 FMJIC / -12 FMJIC

$

$

Not available

8

Bear Cat 18556-00

DECAL, FEED SPEED

$7.49

$

Usually ships in 3-7 days

0

9

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP (CH800H ONLY)

$

$

Not available

10

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

11

WASHER, 1/2 FLAT ZP (WAS 15034, REMOVED)

$

$

Not available

12

15076

SCREW, 3/8-16 X 1 LG THD CUTT ZP

$

$

Not available

13

NUT, 1/4-28 UNF ZP (WAS 15125, REMOVED)

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

15

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

16

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

18

PIN, 3/32 X 3/4 COTTER (WAS 15380, REMOVED)

$

$

Not available

19

15464

BOLT, 1/4 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

20

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

21

16297

ADAPTER, -12 MORING / -12 MJIC 90 DEG.

$

$

Not available

22

16573

ADAPTER, -12 MORING / -10 MJIC 90 DEG.

$

$

Not available

23

16874

ADAPTER, -12 MORING / -12 MJIC

$

$

Not available

24

73018-12

COVER, HYDRAULIC MOTOR (CH800H)

$

$

Not available

25

73019-12

WELDMENT, CHIPPER BASE

$

$

Not available

26

ROD, 1/4-28 THREADED (WAS 73695-00, REMOVED)

$

$

Not available

27

LEVER, FLOW CONTROL (WAS 73696-00, REMOVED)

$

$

Not available

28

CLEVIS, FLOW CONTROL (WAS 73697-00, REMOVED)

$

$

Not available

29

WELDMENT, FEED CRANK (WAS 73713-12, REMOVED)

$

$

Not available

30

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

31

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available
