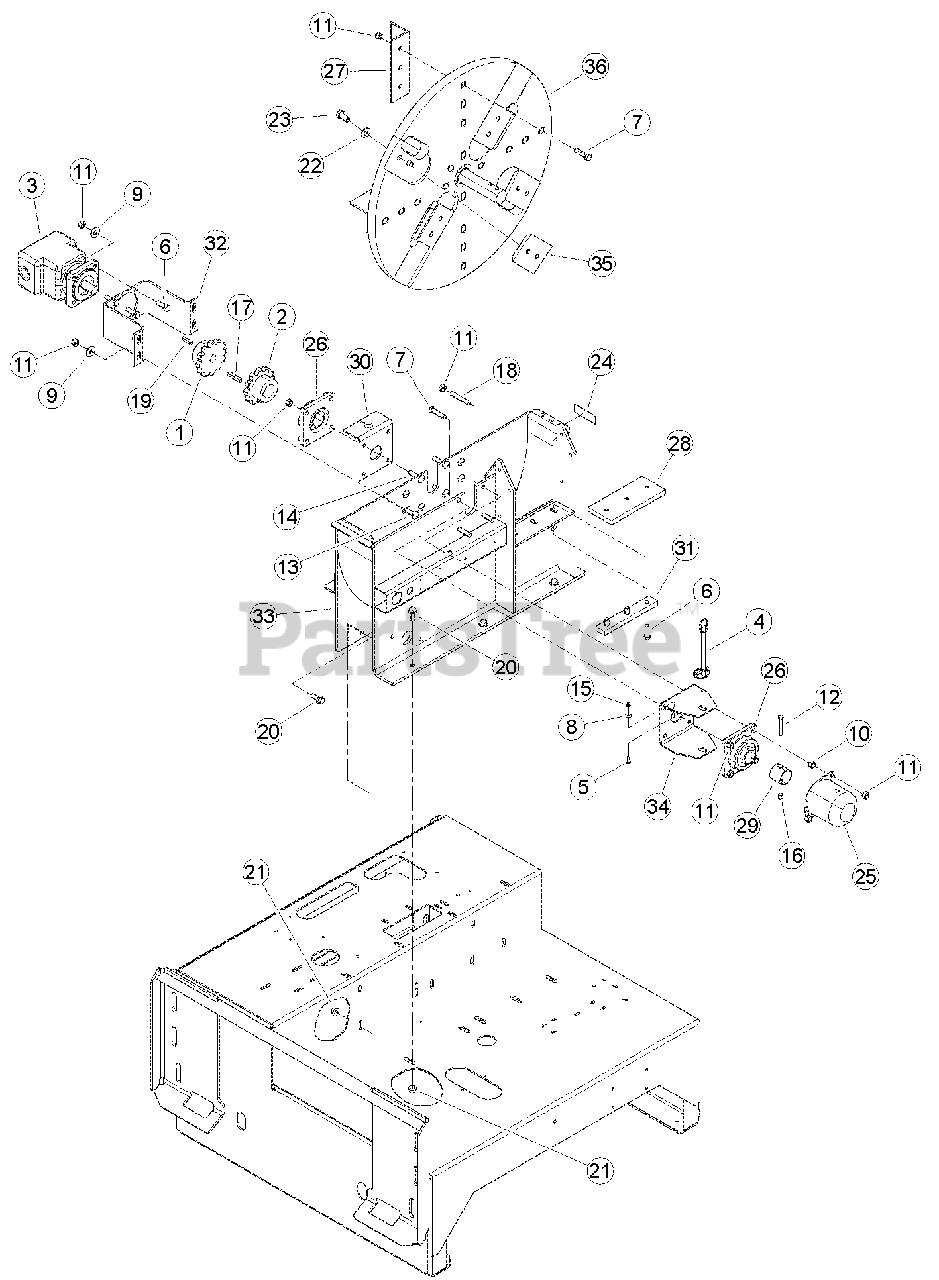

CH 800 H - Bear Cat 8" Chipper, Skid Steer (SN: B00001 - C07503) Housing Parts Diagram

8" Chipper, Skid Steer

Housing Parts Diagram

  • Title
1

Bear Cat 12555

COUPLER, CHAIN 1" ID

$195.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12556

COUPLER, CHAIN 1-3/4" ID

$195.99

$

In Stock, only 1 left!

0

3

Bear Cat 12559

MOTOR, 3.45 CU IN HYDRAULIC

$2473.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W LYNCH

$37.99

$

Usually ships in 3-7 days

0

5

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

7

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

8

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

11

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

12

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15157

BOLT, 1/2"X1-1/2" GR5 ZP CRG

$8.49

$

Usually ships in 3-7 days

0

14

15339

BOLT, 1/2 X 2 CRG GR5 ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

18

Bear Cat 15481

STUD, 1/2-13 X 3 LONG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15498

KEY, 5/16 SQUARE X 1-1/2 LONG

$

$

Not available

20

Bear Cat 15612

BOLT, 1/2 X 1-1/4 SERR FLANGE

$

$

Not available

21

Bear Cat 15616

NUT, 1/2 SERR FLANGE NC ZP

$

$

Not available

22

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.49

$

Usually ships in 3-7 days

0

23

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/PATCH

$11.99

$

Usually ships in 3-7 days

0

24

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

25

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

26

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

27

Bear Cat 71123

PADDLE, BIG CHIPPER

$53.99

$

Usually ships in 3-7 days

0

28

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

29

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

30

Bear Cat 71325

WELDMENT, LEFT BEARING BRACKET

$

$

Not available

31

Bear Cat 72173-12

SPACER, CHIPPER ANVIL

$116.99

$

In Stock, only 1 left!

0

32

72939-12

MOUNT, HYDRAULIC MOTOR

$

$

Not available

33

72949-35

WELDMENT, ROTOR HOUSING

$

$

Not available

34

Bear Cat 75960-12

BRACKET, DISK LOCK

$

$

Not available

35

Bear Cat 76112-00

BLADE, BIG CHIPPER

$

$

Not available

36

Bear Cat 76288-00

ASSEMBLY 9" CHIPPER DISK

$3845.99

$

Usually ships in 3-7 days

0

12530

LANYARD, NYLON

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 12557

CHAIN, COUPLING ROLLER W/LINK

Note: (NOT SHOWN)

$114.99

$

Usually ships in 3-7 days

0
