CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0017AW002512 - 5VJAA0019CW003730) Kit, CH6730H Safety Bar (Part # 76945-00 - BRITISH COLUMBIA, CANADA SERVICE AREA ONLY) Parts Diagram

6" Chipper, 730cc Kohler

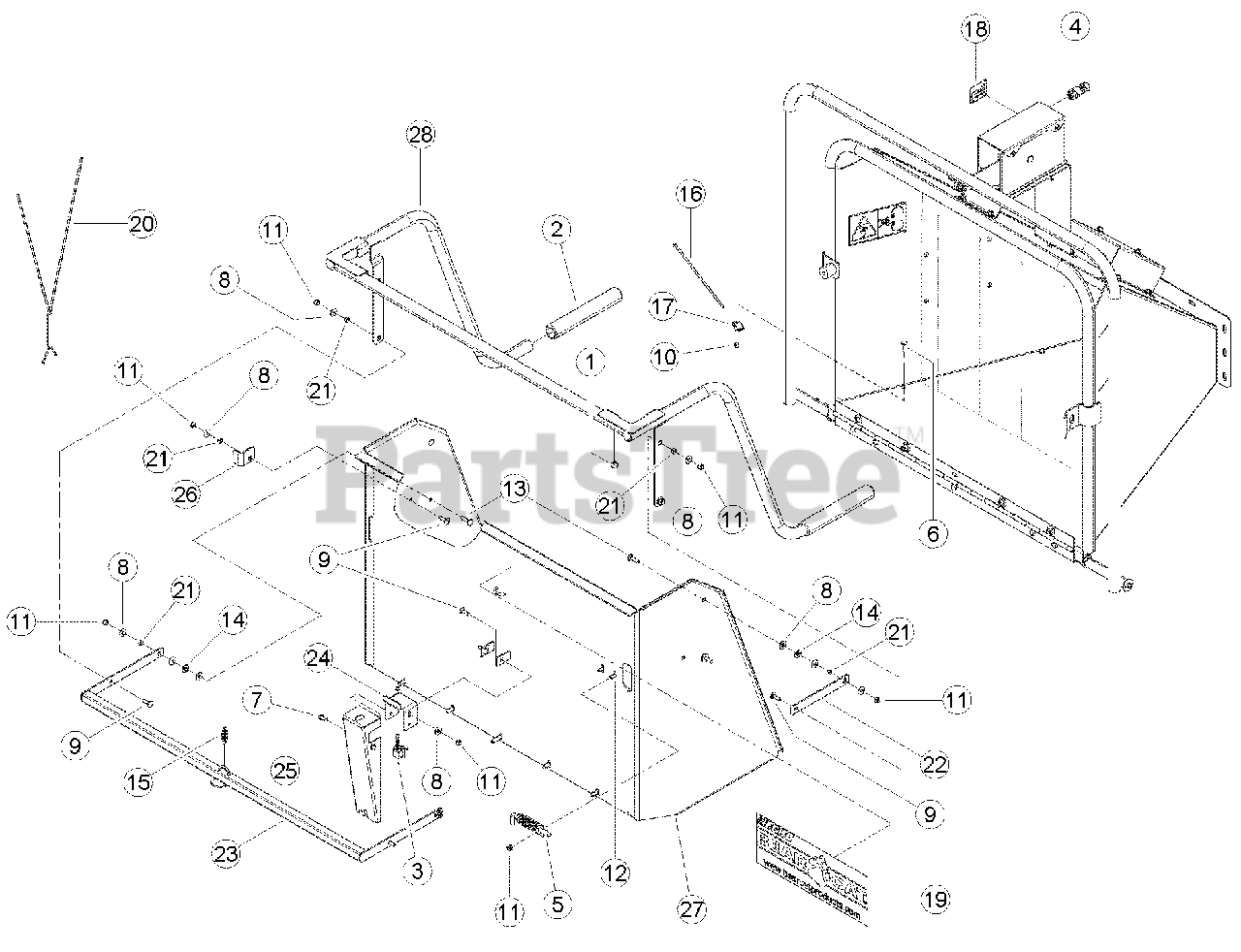

Kit, CH6730H Safety Bar (Part # 76945-00 - BRITISH COLUMBIA, CANADA SERVICE AREA ONLY) Parts Diagram

  • Title
1

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

3

SWITCH, N/C MOMENTARY PLUNGER (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77542-00)

$

$

Not available

4

SWITCH, N/O MOMENTARY PUSHBUTTON (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77542- 0)

$

$

Not available

5

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

6

15002

BOLT, 1/4 X 1 HEX HD GR5 ZP

$

$

Not available

7

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

10

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

13

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

14

Bear Cat 15409

WASHER, 5/16 ID X 7/8 OD NYLON FLAT

$

$

Not available

15

Bear Cat 16698

SPRING, 1/2 X 2.00 LG ZP

$21.99

$

Usually ships in 3-7 days

0

16

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

17

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18555-00

DECAL, RESET/OVERRIDE

$37.99

$

Usually ships in 3-7 days

0

19

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36355-00

HARNESS, SAFETY BAR

$85.99

$

Usually ships in 3-7 days

0

21

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

22

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

23

Bear Cat 74202-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

24

Bear Cat 74203-12

BRACKET, SWITCH

$52.99

$

Usually ships in 3-7 days

0

25

Bear Cat 74204-12

SHIELD, KNEEBAR SWITCH

$108.99

$

Usually ships in 3-7 days

0

26

Bear Cat 74222-12

LOCK, SAFETY BAR

$54.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76605-12

WELDMENT, EXTENSION TRAY W/ TABS

$740.99

$

Usually ships in 3-7 days

0

28

Bear Cat 76611-35

WELDMENT, KNEEBAR

$363.99

$

Usually ships in 3-7 days

0

Bear Cat 15031

WASHER, 3/8 FLAT ZP

Note: (NOT SHOWN - USED TO CONNECT TRAY TO HOPPER)

$

$

Not available

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

Note: (NOT SHOWN - USED TO CONNECT TRAY TO HOPPER)

$

$

Not available

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

Note: (NOT SHOWN - USED TO CONNECT TRAY TO HOPPER)

$

$

Not available

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

Note: (NOT SHOWN - USED TO CONNECT TRAY TO HOPPER)

$

$

Not available
