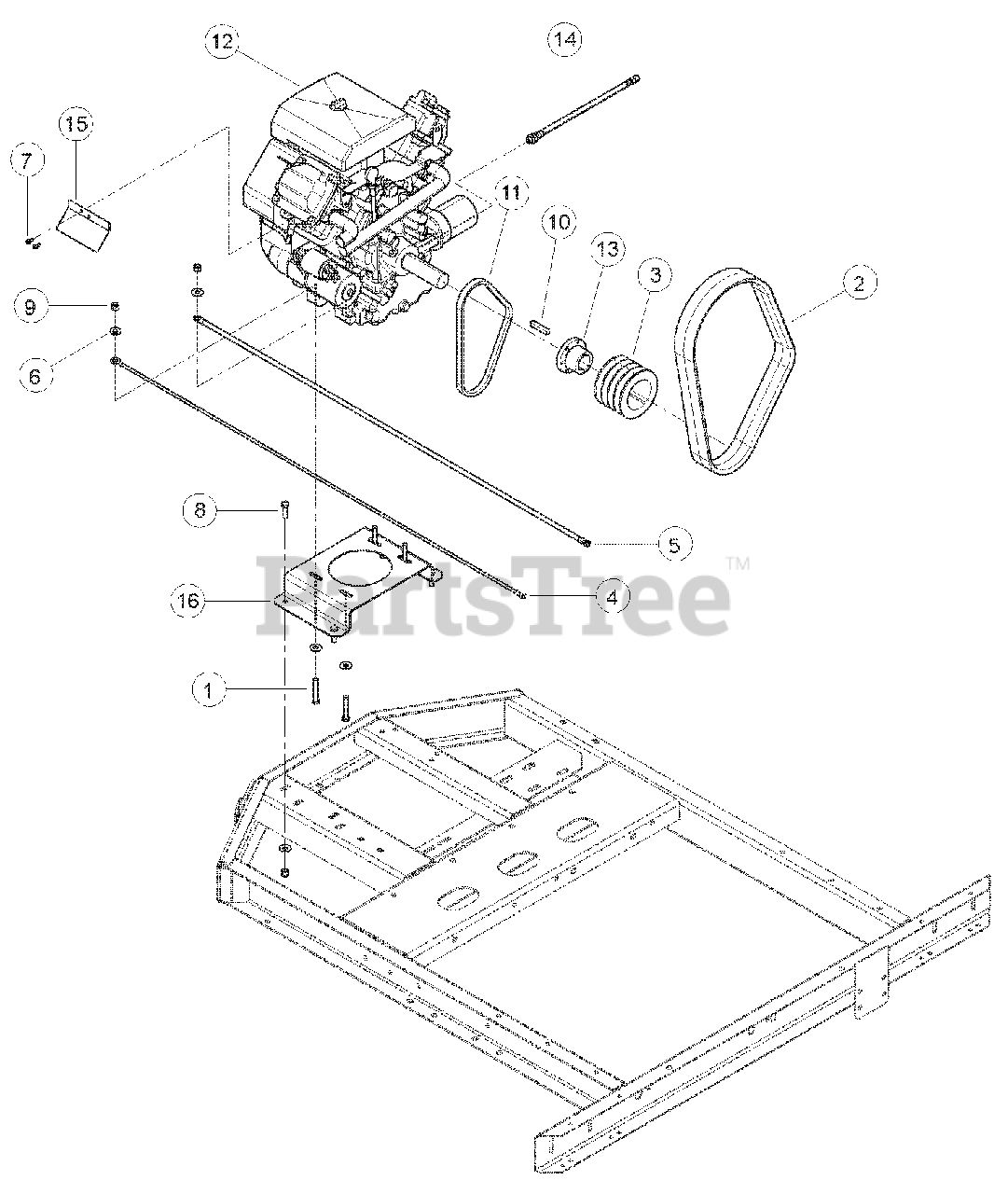

CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0017AW002512 - 5VJAA0019CW003730) Engine Parts Diagram

6" Chipper, 730cc Kohler

Engine Parts Diagram

  • Title

1

0103-0711-00

BOLT, 3/8 NC X 2-1/4 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 14261-00

BELT, 3RB 48

$342.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14264-00

SHEAVE, 4B 4.2 SD

$157.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14629-00

CABLE, 50 IN. NEGATIVE (R/R)

$

$

Not available

5

Bear Cat 14985-00

CABLE, 48 IN. POSITIVE BATTERY

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

Bear Cat 15187

SCREW, #10 X 1/2 HWH TEK ZP

$

$

Not available

8

15364

BOLT, 3/8 NC X 1-1/4 HEX HD

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NYLOCK ZP

$

$

Not available

10

Bear Cat 15440

KEY, 3/8 X 2 SQUARE

$4.99

$

In Stock, only 2 left!

0

11

Bear Cat 16043

BELT, 29 IN. C/S

$63.99

$

In Stock, only 1 left!

0

12

ENGINE, KOHLER CH730 (FOR SERVICE SEE OWNER'S MANUAL OR YOUR NEAREST THORIZED KOHLER INDUSTRIAL ENGINE DEALER)

$

$

Not available

13

Bear Cat 16552

BUSHING, 1-7/16 SD

$57.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36152-00

HOSE ASSY', CRANKCASE DRAIN

$78.99

$

Usually ships in 3-7 days

0

15

76523-13

GUARD, MUFFLER KOHLER

$

$

Not available

16

Bear Cat 76527-12

BASE, KOHLER ENGINE

$126.99

$

Usually ships in 3-7 days

0
