CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Hitch (CE COMPLIANT) (EXCLUDES CH6730HXF MODELS) Parts Diagram

6" Chipper, 730cc Kohler

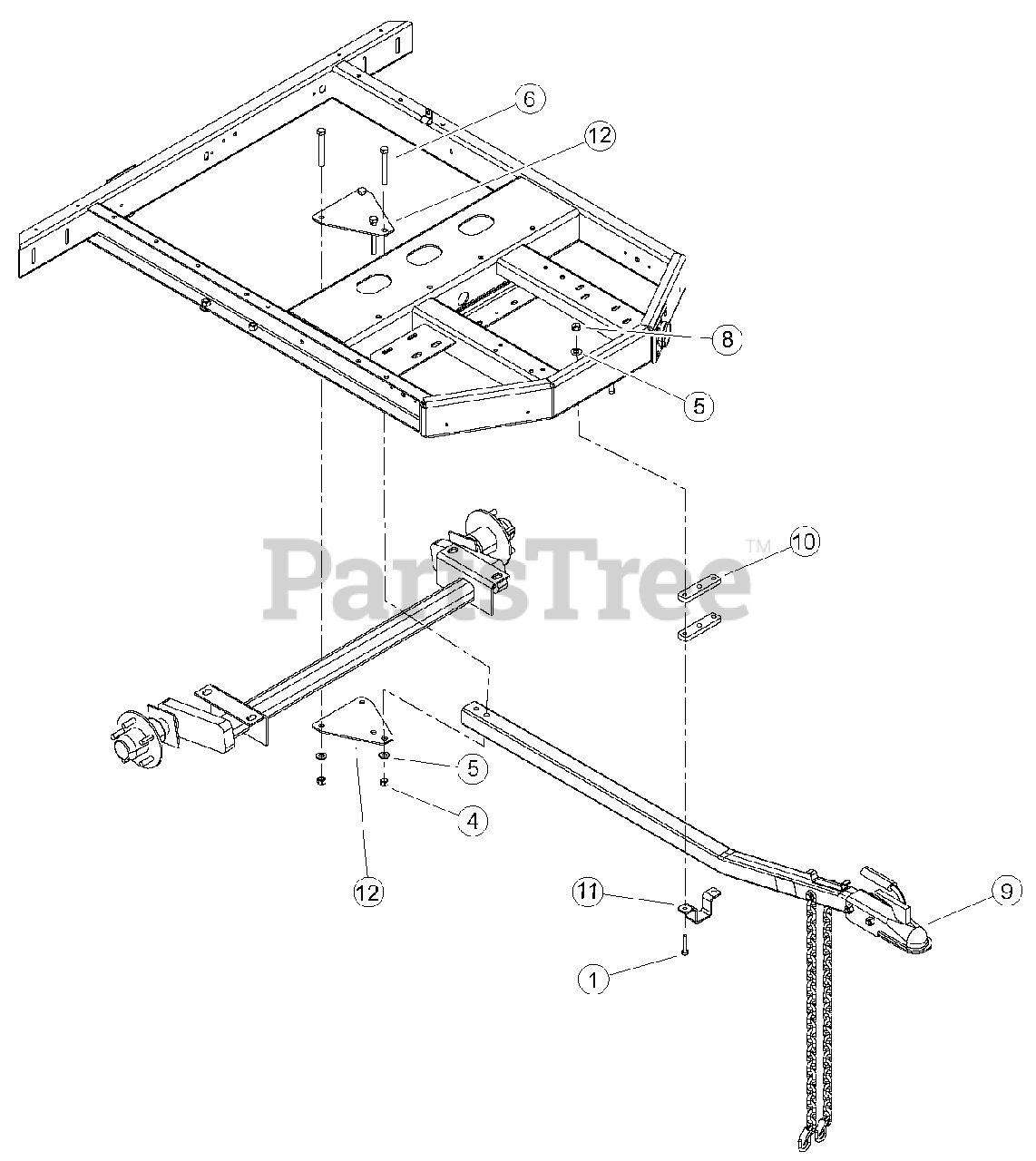

Hitch (CE COMPLIANT) (EXCLUDES CH6730HXF MODELS) Parts Diagram

  • Title

1

Bear Cat 15008

BOLT 3/8*2 GR5 HEX CAPSCREW ZP

$

$

Not available

2

Bear Cat 15015

BOLT, 1/2X2 GR5 HEX CAPSCREW ZP (NOT PICTURED)

$

$

Not available

3

Bear Cat 15043

NUT, 1/2" HEX NC ZP (NOT PICTURED)

$

$

Not available

4

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

5

Bear Cat 15097

WASHER 1/2"SAE FLAT ZP(56PC/LB

$

$

Not available

6

15174

BOLT 1/2 X 4 HEX CPS G5 ZP

$

$

Not available

7

14048-00

CLAMP, 9/16 COATED (NOT PICTURED)

$

$

Not available

8

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

9

77724-00

ASSEMBLY, 6" HITCH POLE XE

$

$

Not available

10

77725-12

SPACER, HITCH POLE XE MODEL

$

$

Not available

11

77726-12

STRAP, HITCH POLE XE MODEL

$

$

Not available

12

77727-12

PLATE, AXLE SAFETY

$

$

Not available
