CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Frame - CH6730HXF (CE COMPLIANT) (Part 1) Parts Diagram

6" Chipper, 730cc Kohler

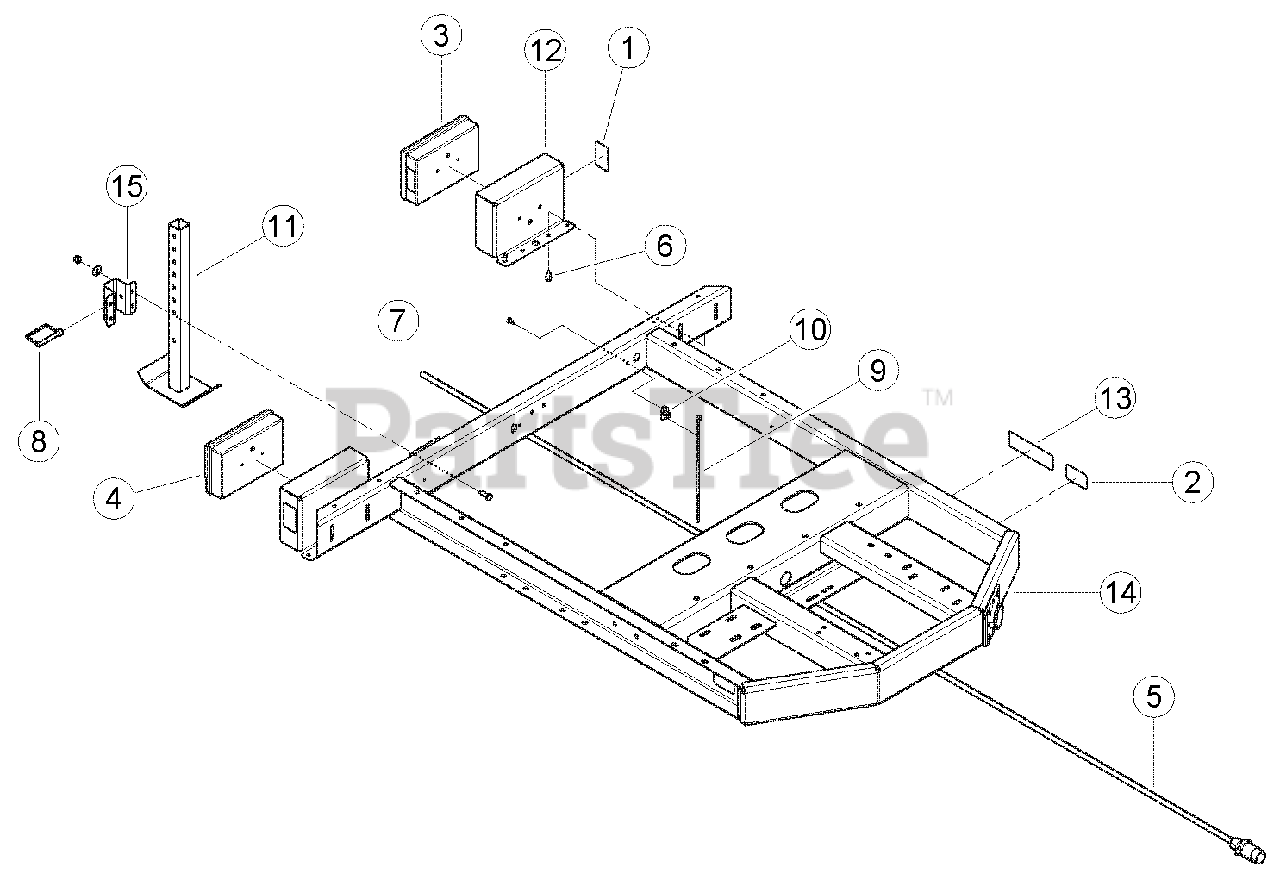

Frame - CH6730HXF (CE COMPLIANT) (Part 1) Parts Diagram

  • Title
1

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14587-00

HARNESS, TRAILER LIGHTING

$319.99

$

Usually ships in 3-7 days

0

6

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

7

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

8

16808

PIN, 3/8 X 2-3/4 SNAP

$

$

Not available

9

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

10

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

11

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

12

Bear Cat 74321-12

BRACKET, TAIL LIGHT

$

$

Not available

13

TAG, VIN

$

$

Not available

14

Bear Cat 76545-12

WELDMENT, CHIPPER TRAILER

$1386.99

$

Usually ships in 3-7 days

0

15

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT [WAS 76652-12]

$

$

Not available
