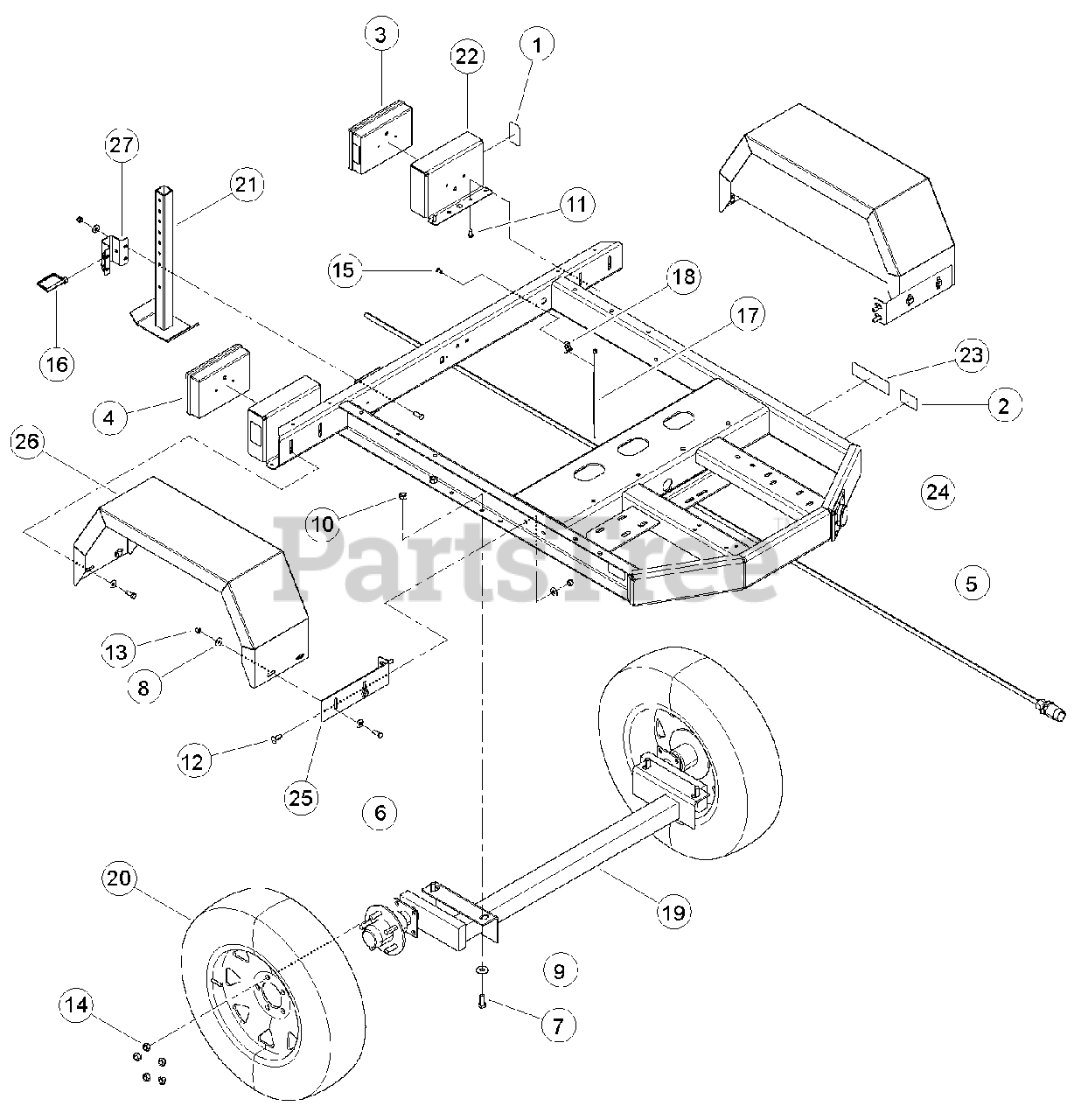

CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Frame - CH6730HXE (CE COMPLIANT) (Part 1) Parts Diagram

6" Chipper, 730cc Kohler

Frame - CH6730HXE (CE COMPLIANT) (Part 1) Parts Diagram

  • Title
1

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14587-00

HARNESS, TRAILER LIGHTING

$319.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

7

15013

BOLT, 1/2 X 1-1/4 HHCS NC ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

11

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

12

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15527

BOLT, 1/2-20 WHEEL LUG

$

$

Not available

15

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

16

16808

PIN, 3/8 X 2-3/4 SNAP

$

$

Not available

17

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

18

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 31264-00

AXLE, DURA-FLEX TORSION 1800

$1117.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31289-00

ASSY', TIRE AND WHEEL 14 IN.

$595.99

$

Usually ships in 3-7 days

0

21

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

22

Bear Cat 74321-12

BRACKET, TAIL LIGHT

$

$

Not available

23

TAG, VIN

$

$

Not available

24

Bear Cat 76545-12

WELDMENT, CHIPPER TRAILER

$1386.99

$

Usually ships in 3-7 days

0

25

Bear Cat 76546-12

BRACKET, FENDER

$57.99

$

Usually ships in 3-7 days

0

26

Bear Cat 76551-12

WELDMENT, CHIPPER FENDER

$364.99

$

Usually ships in 3-7 days

0

27

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT [WAS 76652-12]

$

$

Not available
