CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Frame - CH6730H (NON-CE COMPLIANT) (Part 1) Parts Diagram

6" Chipper, 730cc Kohler

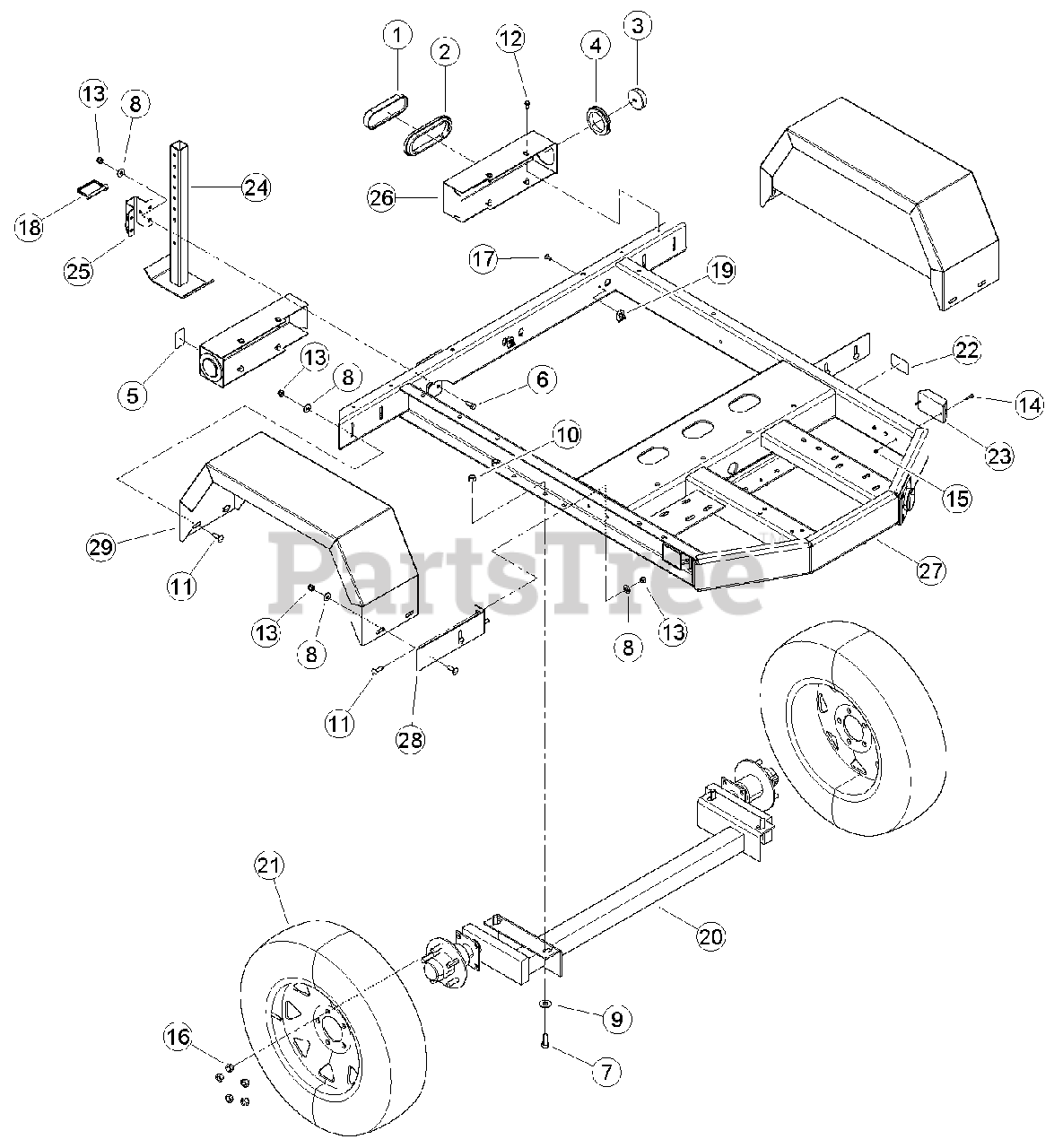

Frame - CH6730H (NON-CE COMPLIANT) (Part 1) Parts Diagram

  • Title
1

Bear Cat 14262-00

TAIL LIGHT, OVAL RED

$52.99

$

Usually ships in 3-7 days

0

2

GROMMET, OVAL TAIL LIGHT (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 31737-00)

$

$

Not available

3

Bear Cat 14361-00

LIGHT, RED CLEARANCE

$

$

Not available

4

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

5

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

7

15013

BOLT, 1/2 X 1-1/4 HHCS GR5 NC ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

11

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

12

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

15393

MACH. SCREW,10-24 X 1 RND HD PHL ZP

$

$

Not available

15

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

16

Bear Cat 15527

BOLT, 1/2-18 WHEEL LUG

$

$

Not available

17

Bear Cat 15828-00

RIVET, 1/4 X 3/4 AL BLIND DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

18

16808

PIN, 3/8 X 1-3/4 SNAP

$

$

Not available

19

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31264-00

AXLE, DURA-FLEX TORSION 1800

$1117.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31289-00

ASSY', TIRE AND WHEEL 14 IN.

$595.99

$

Usually ships in 3-7 days

0

22

Bear Cat 32155-00

DECAL, P205/75R14 LOAD RATING

$62.99

$

Usually ships in 3-7 days

0

23

Bear Cat 32347-00

LIGHT, AMBER SIDE MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

25

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

26

Bear Cat 74019-12

BRACKET, TAIL LIGHT

$

$

Not available

27

Bear Cat 76545-12

WELDMENT, CHIPPER TRAILER

$1386.99

$

Usually ships in 3-7 days

0

28

Bear Cat 76546-12

BRACKET, FENDER

$57.99

$

Usually ships in 3-7 days

0

29

Bear Cat 76551-12

WELDMENT, CHIPPER FENDER

$364.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN. BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

32349-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$

$

Not available
