CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Feed Roller Parts Diagram

6" Chipper, 730cc Kohler

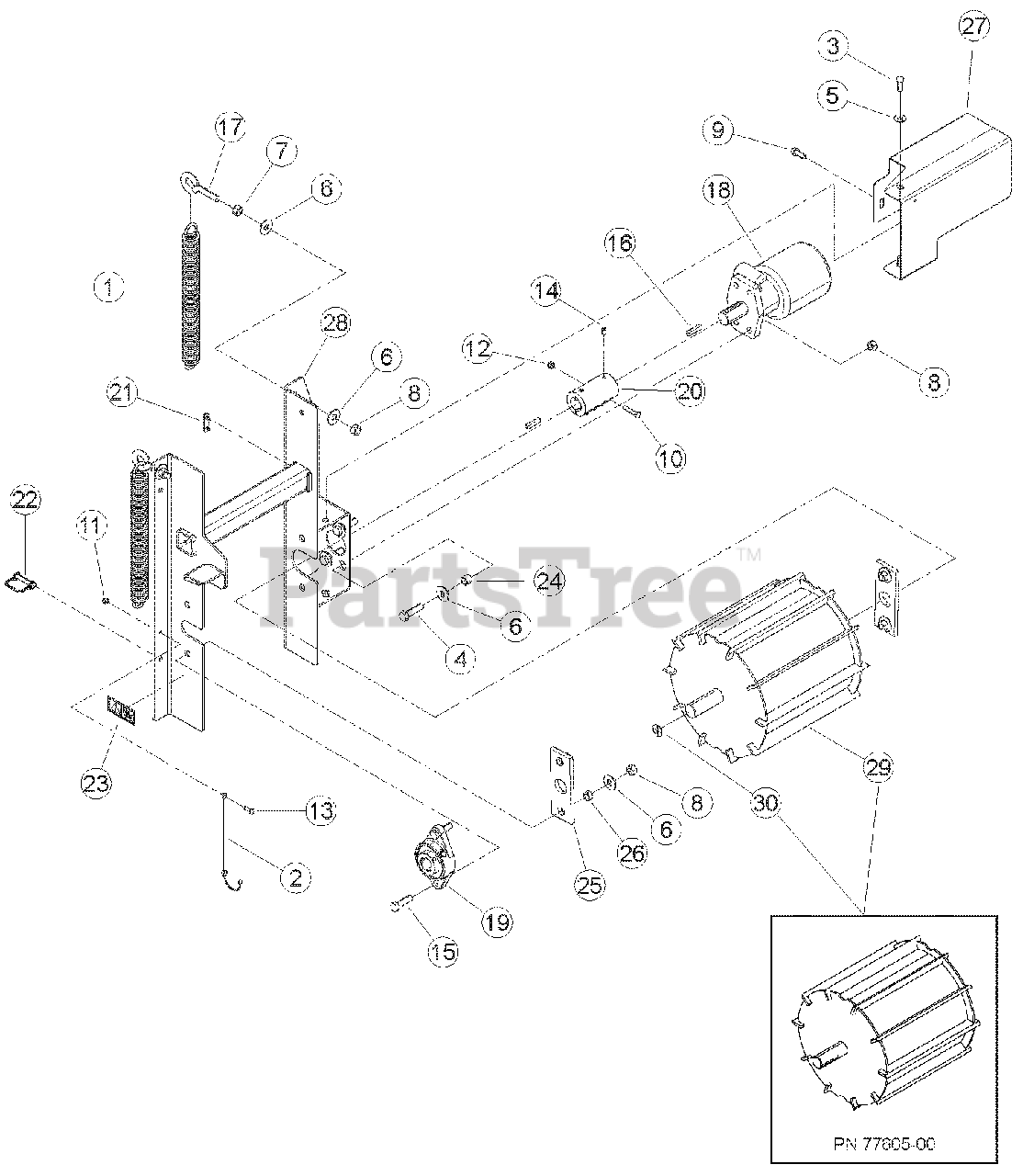

Feed Roller Parts Diagram

  • Title
1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

Bear Cat 15006

BOLT, 3/8 NC X 1 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

7

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

9

15076

BOLT, 3/8 X 1 THREAD CUT

$

$

Not available

10

15282

BOLT, 5/16 X 1-1/2 HEX HD

$

$

Not available

11

Bear Cat 15355

NUT, 1/4 NYLOCK

$

$

Not available

12

Bear Cat 15356

NUT, 5/16 NYLOCK

$

$

Not available

13

Bear Cat 15363

BOLT, 1/4 X 3/4 HHCS GR5 NF ZP

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15461

SETSCREW, 3/8-16 X 1/2 SET

$

$

Not available

15

15478

BOLT, 1/2 X 1-3/4 HEX HD

$

$

Not available

16

Bear Cat 15498

KEY, 5/16 X 1-3/4 SQUARE

$

$

Not available

17

Bear Cat 15502

I-BOLT, 1/2 X 2

$31.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16682

BEARING, 1-1/4 2 BOLT FLANGE

$

$

Not available

20

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

21

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

22

Bear Cat 17879

PIN, 3/8 X 1-1/2 SNAP

$

$

Not available

23

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

24

Bear Cat 70534

SPACER, .75 X .62

$10.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73248

BEARING, ROLLER SLIDE

$39.99

$

Usually ships in 3-7 days

0

26

Bear Cat 73249

SPACER, .75 OD X .37

$10.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76555-12

WELDMENT, MOTOR COVER

$

$

Not available

28

Bear Cat 76666-00

WELDMENT, ROLLERSLIDE

$529.99

$

Usually ships in 3-7 days

0

Bear Cat 77605-00

ASSEMBLY, 6 INCH FEED ROLLER SERVICE

Note: (INCLUDES ITEMS 29 & 30)

$1035.99

$

Usually ships in 3-7 days

0

29

WELDMENT, FEED ROLLER

$

$

Not available

30

DECAL, ROTATING SHAFT

$

$

Not available
