CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Chute Attachment (CE COMPLIANT) Parts Diagram

6" Chipper, 730cc Kohler

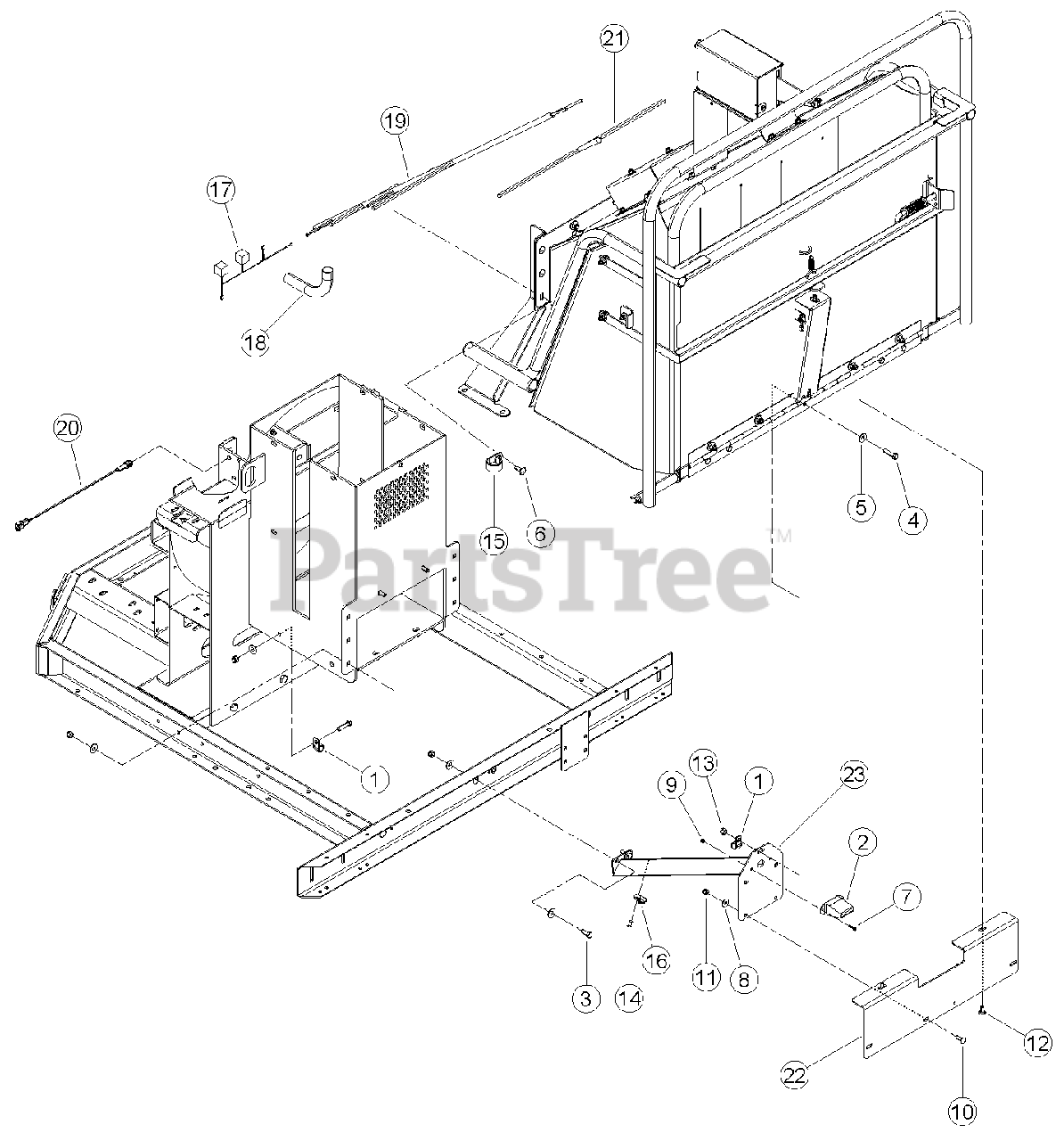

Chute Attachment (CE COMPLIANT) Parts Diagram

  • Title
1

14048-00

CLAMP, 9/16 COATED

$

$

Not available

2

Bear Cat 14368-00

LIGHT, LICNESE PLATE

$

$

Not available

3

Bear Cat 15006

BOLT, 3/8 NC X 1 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15007

BOLT, 3/8 NC X 1-1/2 HEX HD

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1 CRG

$

$

Not available

7

Bear Cat 15225

SCREW, #10 X 3/4 HEX TAP SC

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15255

NUT, 8-32 NYLOCK

$

$

Not available

10

Bear Cat 15301

BOLT, 5/16 X 1 CRG ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16383

CLAMP, 1-9/16 COATED

$

$

Not available

16

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31288-00

HARNESS, CHIPPER SAFETY RELAY

$141.99

$

Usually ships in 3-7 days

0

18

Bear Cat 31298-00

SLEEVING, BRAIDED ELECTRICAL HARNESS

$109.99

$

Usually ships in 3-7 days

0

19

Bear Cat 32103-00

HARNESS, 6" GAS PLUS 1 CONTROLLER

$1497.99

$

Usually ships in 3-7 days

0

20

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY

$181.99

$

In Stock, only 1 left!

0

21

Bear Cat 36355-00

HARNESS, SAFETY BAR

$85.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75246-12

BRACKET, EUROPEAN LISENCE

$

$

Not available

23

Bear Cat 76679-12

WELDMENT, CHUTE SUPPORT

$

$

Not available
