CH 6730 H - Bear Cat 6" Chipper, 730cc Kohler (SN: 5VJAA0000DW000001 & Above) Belt Shield (VIN 5VJAA0000DW000001 - 5VJAA0017AW002512) Parts Diagram

6" Chipper, 730cc Kohler

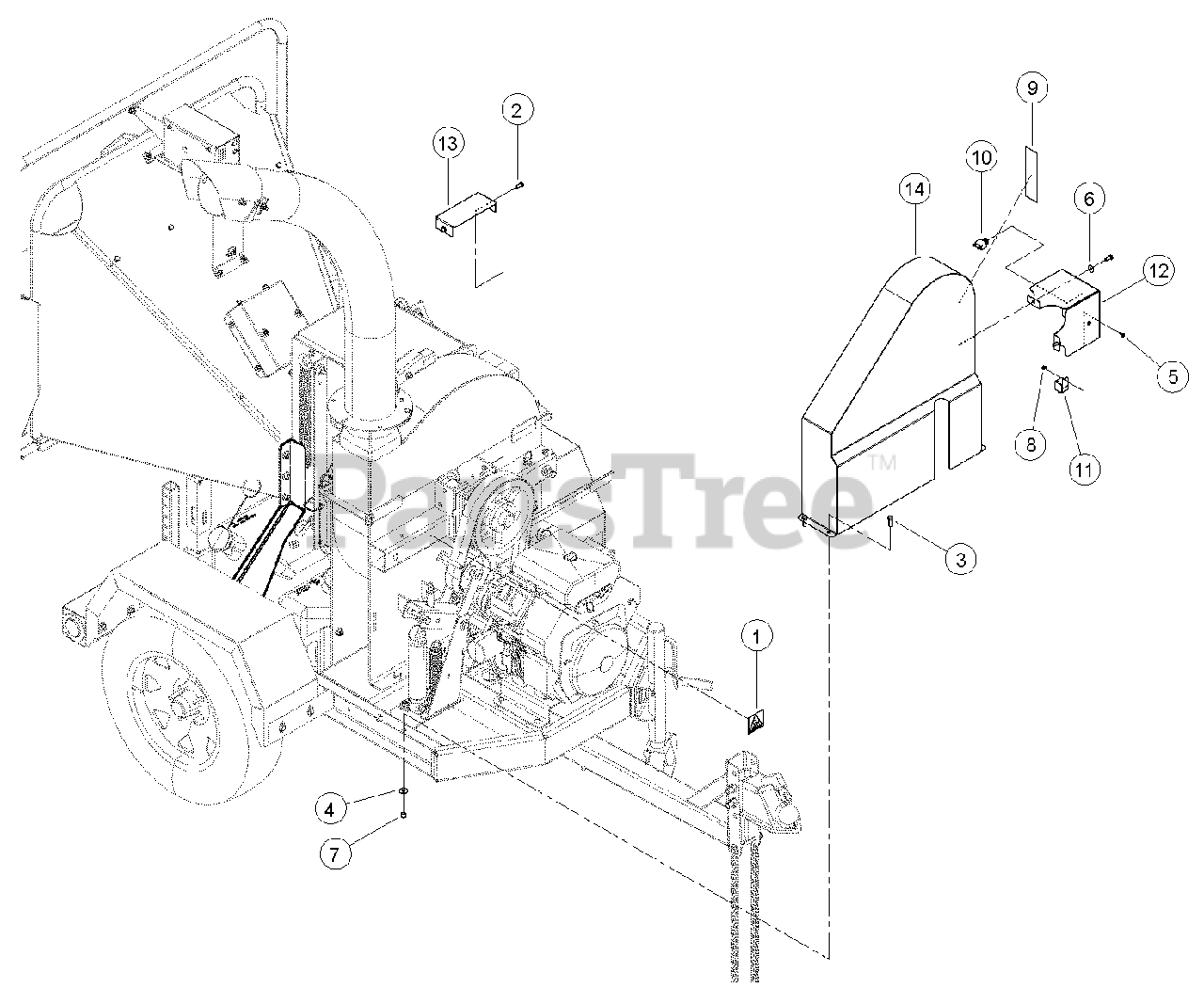

Belt Shield (VIN 5VJAA0000DW000001 - 5VJAA0017AW002512) Parts Diagram

  • Title
1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD

$

$

Not available

3

Bear Cat 15006

BOLT, 3/8 NC X 1 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

5

Bear Cat 15187

SCREW, #10 X 1/2 HWH TEK ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15388

NUT, 3/8 NYLOCK

$

$

Not available

8

15397

NUT, NO. 10 X 24 NYLOCK

$

$

Not available

9

Bear Cat 18059-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

10

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31238-00

RELAY, 12V SPDT W/ FLANGE

$58.99

$

Usually ships in 3-7 days

0

12

Bear Cat 76524-12

COVER, CHIPPER VALVE

$

$

Not available

13

Bear Cat 76548-12

COVER, CHIPPER SHAFT

$

$

Not available

14

Bear Cat 76560-12

WELDMENT, BELT SHIELD
(Superseded to 76664-00)

$614.99

$

Usually ships in 3-7 days

0
