CH 6720 H - Bear Cat 6" Chipper, 720cc Subaru (SN: 5VJAA0017EW004296 - 5VJAA0413GW005183) Switch Box (VIN: 5VJAA0018FW004728 - 5VJAA0413GW005183) Parts Diagram

6" Chipper, 720cc Subaru

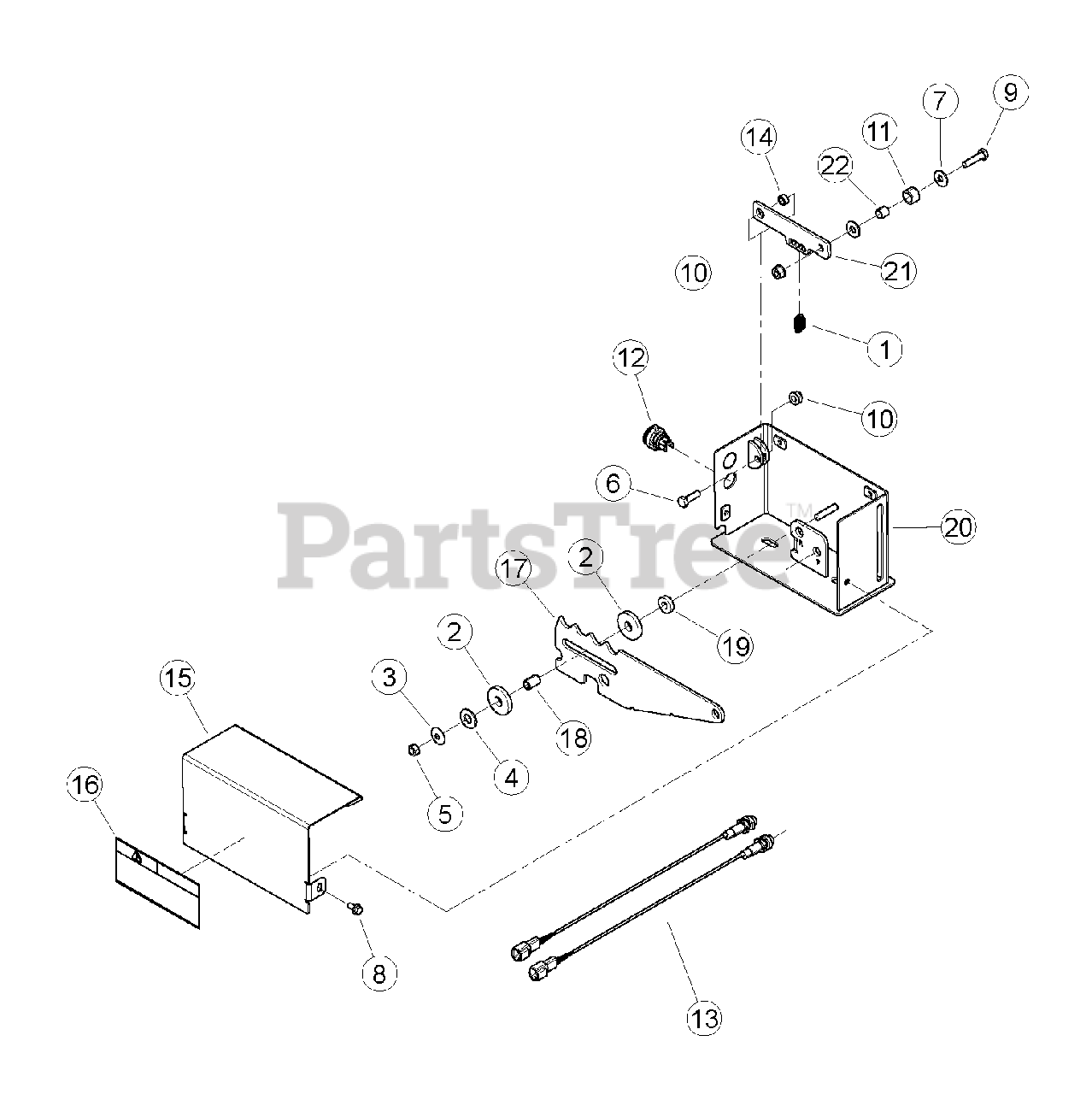

Switch Box (VIN: 5VJAA0018FW004728 - 5VJAA0413GW005183) Parts Diagram

  • Title
1

Bear Cat 12620

SPRING, CONTROL BAR

$24.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHMW SPACER .515ID-1.50OD

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 12622

WASHER, SPRING

$4.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

5

15178

NUT, 5/16 CENTERLOCK NC ZP

$

$

Not available

6

Bear Cat 15219

BOLT, 5/16 X 1 HEX GR5 NC ZP

$

$

Not available

7

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

8

15344

BOLT, 1/4 X 1/2 SERRATED FLANGE GR5 ZP

$

$

Not available

9

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HEX GR5 NC ZP

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

11

Bear Cat 18548-00

ROLLER, NYLON .75OD X .502ID X .440

$3.99

$

Usually ships in 3-7 days

0

12

Bear Cat 30334-00

LIGHT, LED TRI-COLOR

$64.99

$

Usually ships in 3-7 days

0

13

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY (REPLACEMENT PART)

$181.99

$

Usually ships in 3-7 days

0

14

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

15

Bear Cat 70006-00

ASSEMBLY, CONTROL COVER W/ DECAL

Note: (INCLUDES ITEM 16)

$64.99

$

Usually ships in 3-7 days

0

16

Bear Cat 14942-00

DECAL, MULTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

17

70784-12

BAR, SWITCH CONTROL

$

$

Not available

18

70829-00

SPACER, .50 X .728

$

$

Not available

19

70841-00

SPACER, .375" X .25"

$

$

Not available

20

70844-12

WELDMENT, SWITCH BOX

$

$

Not available

21

Bear Cat 75184-12

LINK, DETENT

$26.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75185-00

SPACER, 1/2 OD X .35 ID X .47

$11.99

$

Usually ships in 3-7 days

0
