CH 6720 H - Bear Cat 6" Chipper, 720cc Subaru (SN: 5VJAA0017EW004296 - 5VJAA0413GW005183) Housing Parts Diagram

6" Chipper, 720cc Subaru

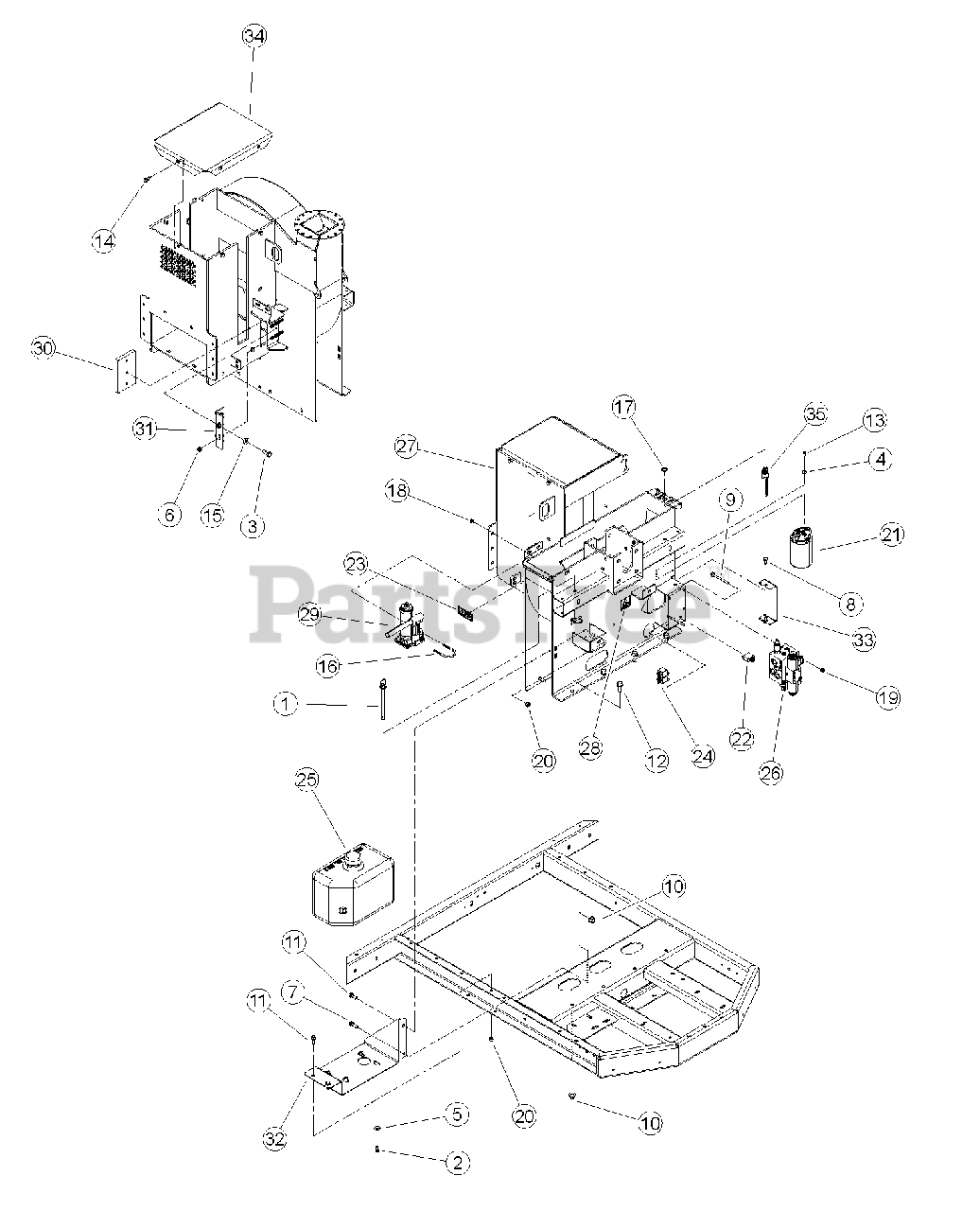

Housing Parts Diagram

  • Title
1

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W/ LYNCH

$37.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

3

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

4

15030

WASHER, 1/4" FLAT ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

6

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

7

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

9

15148-00

BOLT, 5/16 X 3-1/2 SERRATED FLANGE NC

$

$

Not available

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

12

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

13

15343

BOLT, 1/4 X 5/8" HHCS GR5 ZP

$

$

Not available

14

15617

BOLT, 3/8 X 3/4" SERRATED FLANGE

$

$

Not available

15

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

16

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15775-00

NUT, 5/8-32 JAM

$12.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

23

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

24

Bear Cat 31238-00

RELAY, 12V SPDT W/ FLANGE

$58.99

$

Usually ships in 3-7 days

0

25

Bear Cat 36322-00

TANK, HYDRAULIC

$356.99

$

Usually ships in 3-7 days

0

26

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2142.99

$

Usually ships in 3-7 days

0

27

Bear Cat 71795-00

ASSEMBLY, 6" CHIPPER HOUSING WITH DECALS

Note: (INCLUDES ITEM 28)

$4796.99

$

Usually ships in 3-7 days

0

28

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

29

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

30

Bear Cat 73982-12

ANVIL, 6" CHIPPER

$

$

Not available

31

Bear Cat 73985-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

32

Bear Cat 76526-12

BRACKET, HYDRAULIC TANK

$

$

Not available

33

Bear Cat 76548-35

COVER, CHIPPER SHAFT

$

$

Not available

34

Bear Cat 76563-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

35

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0
