CH 6720 H - Bear Cat 6" Chipper, 720cc Subaru (SN: 5VJAA0017EW004296 - 5VJAA0413GW005183) Frame (B) Parts Diagram

6" Chipper, 720cc Subaru

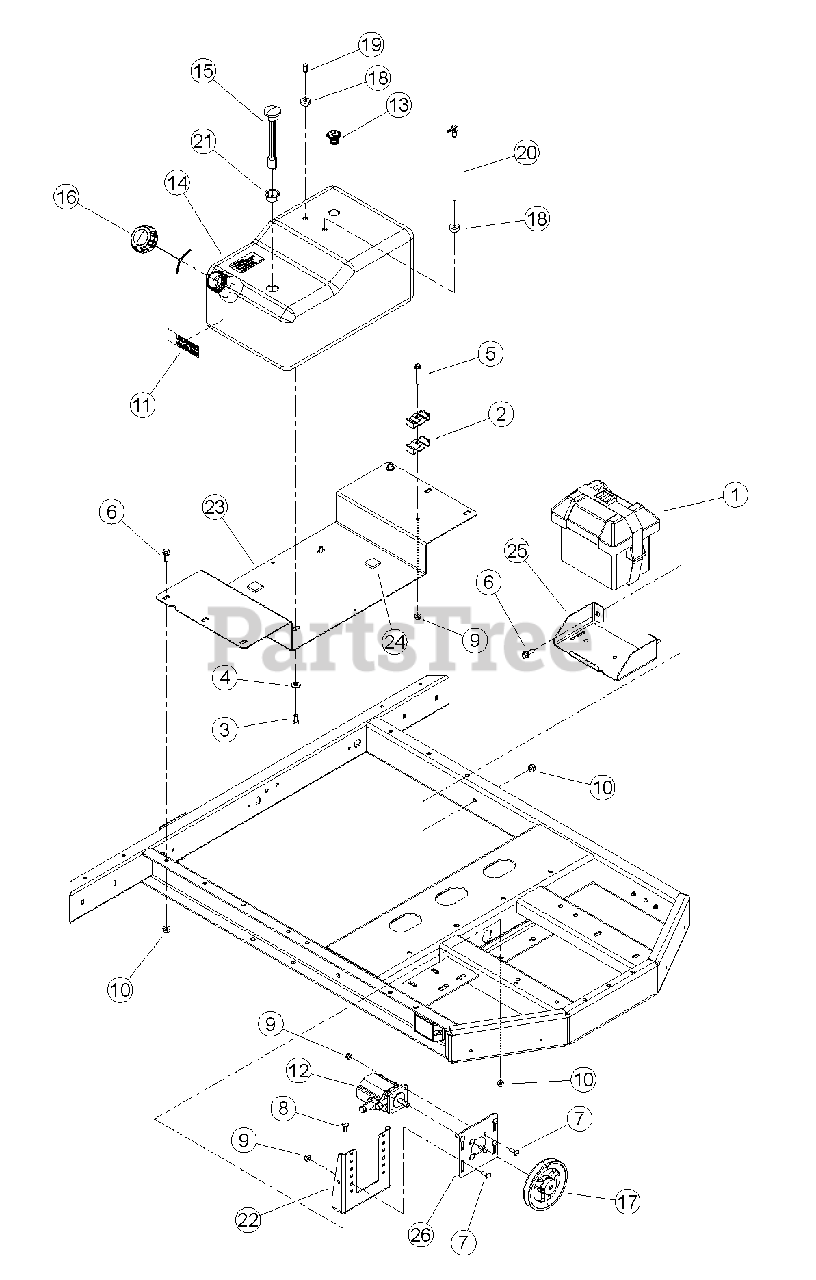

Frame (B) Parts Diagram

  • Title
1

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

2

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

3

Bear Cat 15005

BOLT, 3/8*3/4 GR5 HEX CAPSCW ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

5

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

Bear Cat 15301

BOLT, 5/16" X 1" GR5 CRG ZP

$

$

Not available

8

Bear Cat 15349

BOLT, CARR 5/16*7/8" GR5 NC ZP

$

$

Not available

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

12

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

13

Bear Cat 32542-00

VALVE, ROLL OVER

$181.99

$

In Stock, only 1 left!

0

14

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

15

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$51.99

$

Usually ships in 3-7 days

0

16

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$39.99

$

Usually ships in 3-7 days

0

17

32921-00

FHP B PULLEY, 5.6 - 1/2" BORE

$

$

Not available

18

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36690-00

PLUG, TANK VENT

$9.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75965-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available

23

Bear Cat 76365-12

BASE, 9.25 GAL NYLON TANK

$

$

Not available

24

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0

25

Bear Cat 76612-12

BRACKET, BATTERY HOLDER

$

$

Not available

26

Bear Cat 76910-12

PLATE, HYDRAULIC PUMP

$

$

Not available
