CH 6720 H - Bear Cat 6" Chipper, 720cc Subaru (SN: 5VJAA0017EW004296 - 5VJAA0413GW005183) Engine Parts Diagram

6" Chipper, 720cc Subaru

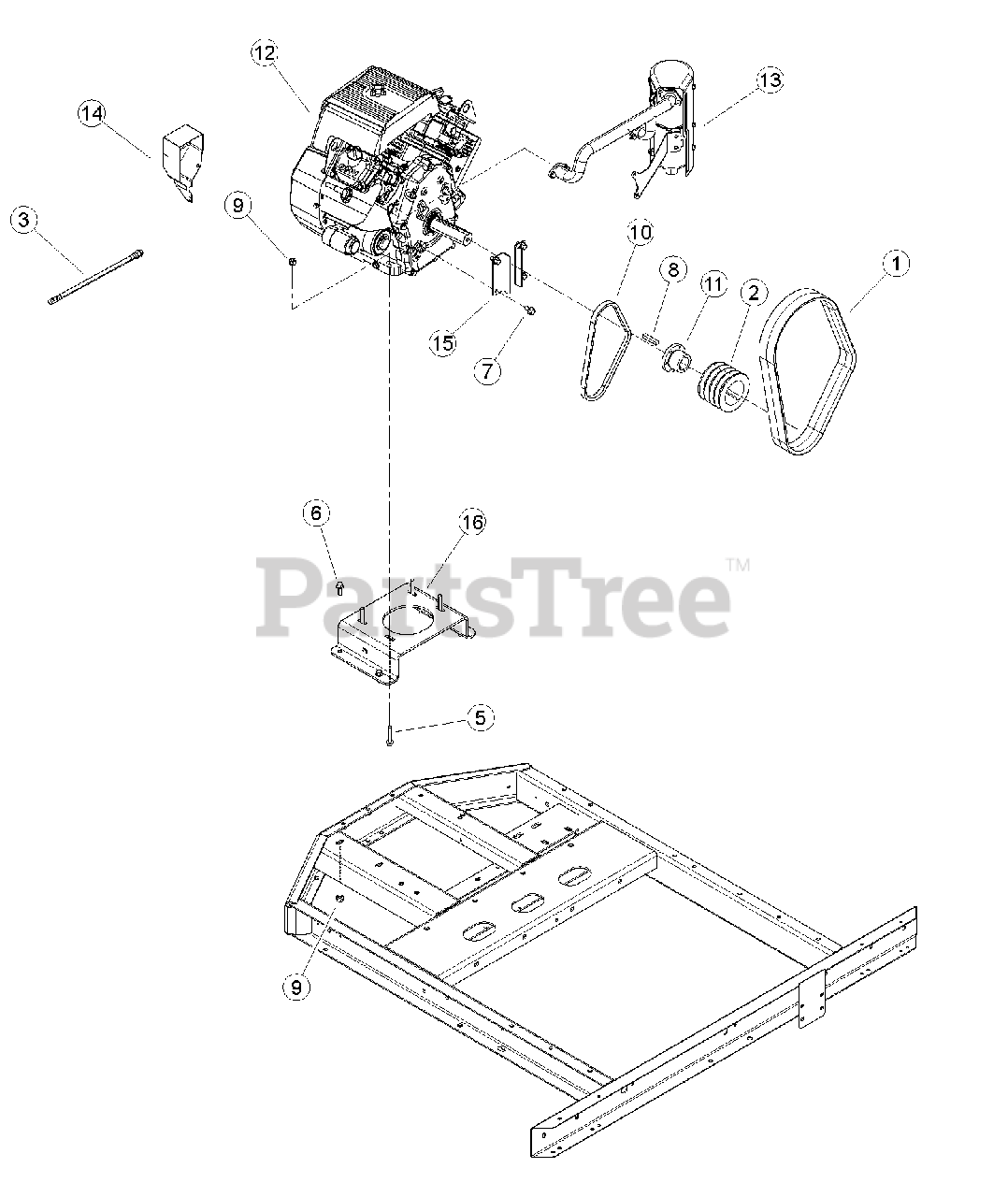

Engine Parts Diagram

  • Title

1

Bear Cat 14261-00

BELT, 3RB48 ARAMID

$342.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14264-00

SHEAVE, 4B4.2 SD

$157.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14373-00

HOSE ASSEMBLY, CRANKCASE DRAIN

$76.99

$

Usually ships in 3-7 days

0

4

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

5

15078-00

BOLT, 3/8 X 2 FLANGE NC

$

$

Not available

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

15229-00

BOLT, 3/8 X 3/4 FLANGE NC

$

$

Not available

8

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$4.99

$

In Stock, only 2 left!

0

9

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 16043

BELT, 29" C/S

$63.99

$

In Stock, only 1 left!

0

11

Bear Cat 16552

BUSHING, SD 1-7/16"

$57.99

$

Usually ships in 3-7 days

0

12

ENGINE, SUBARU 720CC EH72

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

13

MUFFLER, SUBARU V-TWIN OIL SIDE

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

14

CONTROL, SUBARU V-TWIN IGNITION/HOUR

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

15

70150-12

SHIELD, SUBARU CRANKSHAFT

$

$

Not available

16

77793-12

BASE, SUBARU ENGINE

$

$

Not available

Bear Cat 14629-00

CABLE, 50" NEG

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 14985-00

CABLE, 48" POS

Note: (NOT SHOWN)

$

$

Not available
