CH 6720 H - Bear Cat 6" Chipper, 720cc Subaru (SN: 5VJAA0017EW004296 - 5VJAA0413GW005183) Chute (A) VIN: 5VJAA0018FW004728 - 5VJAA0413GW005183 Parts Diagram

6" Chipper, 720cc Subaru

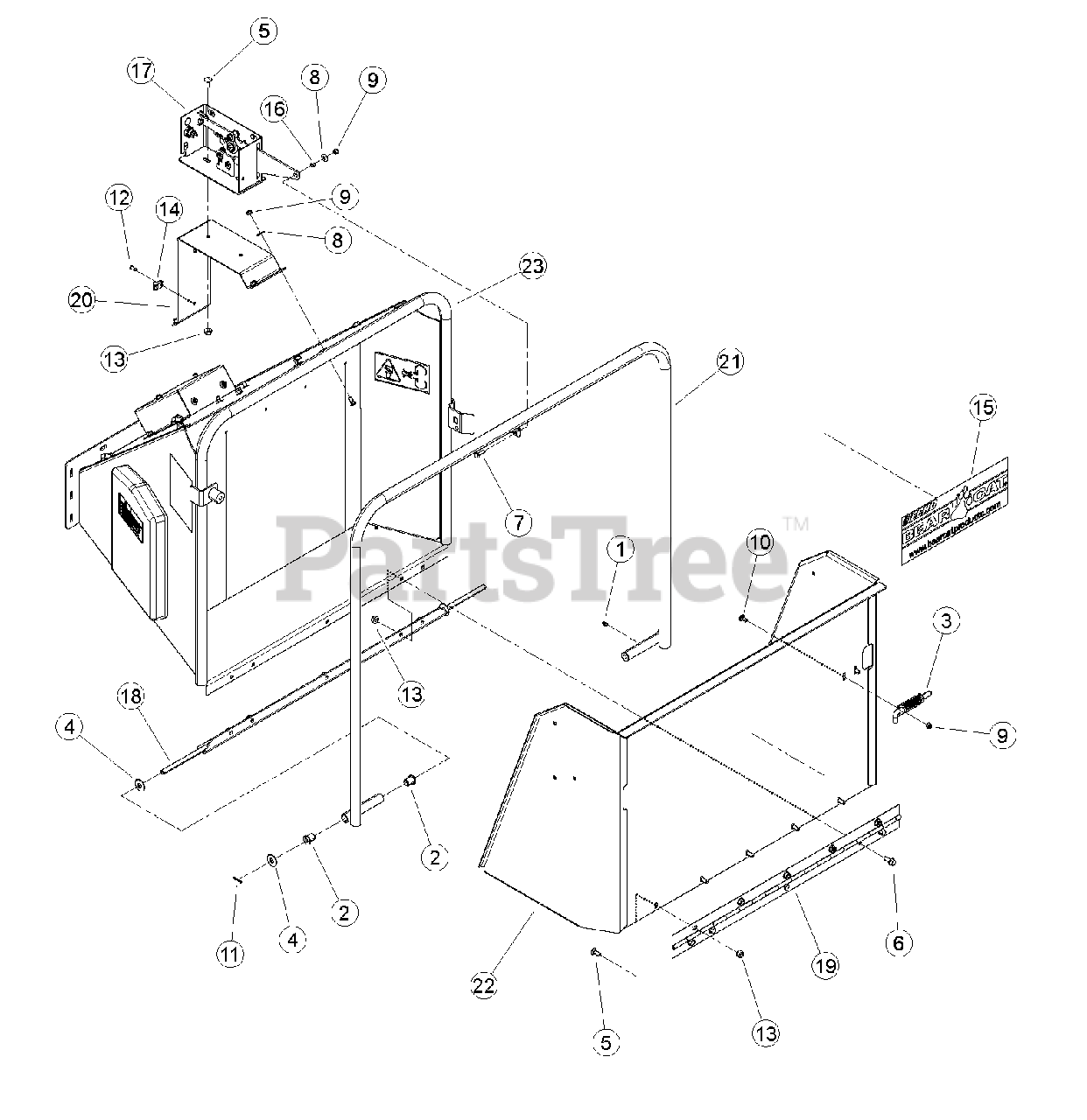

Chute (A) VIN: 5VJAA0018FW004728 - 5VJAA0413GW005183 Parts Diagram

  • Title
1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

4

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

5

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

Bear Cat 15219

BOLT, 5/16 X 1" GR5 HHCS NC ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

9

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

11

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

12

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

14

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

15

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

16

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

17

70780-00

ASSEMBLY, SWITCH BOX

$

$

Not available

18

Bear Cat 73990-12

WELDMENT, CONTROL PIVOT

$188.99

$

Usually ships in 3-7 days

0

19

Bear Cat 74033-12

HINGE, EXTENSION TRAY

$

$

Not available

20

Bear Cat 76582-12

MOUNT, SWITCH BOX

$90.99

$

Usually ships in 3-7 days

0

21

Bear Cat 76594-12

WELDMENT, CONTROL ARM

$303.99

$

Usually ships in 3-7 days

0

22

Bear Cat 76604-12

WELDMENT, EXTENSION TRAY W/O TABS

$693.99

$

Usually ships in 3-7 days

0

23

77823-35

WELDMENT, CHIPPER CHUTE

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
