CH 6627 H - Bear Cat 6" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0414HW005579 & Above) Orchard Discharge Chute Parts Diagram

6" Chipper, 627cc Briggs & Stratton

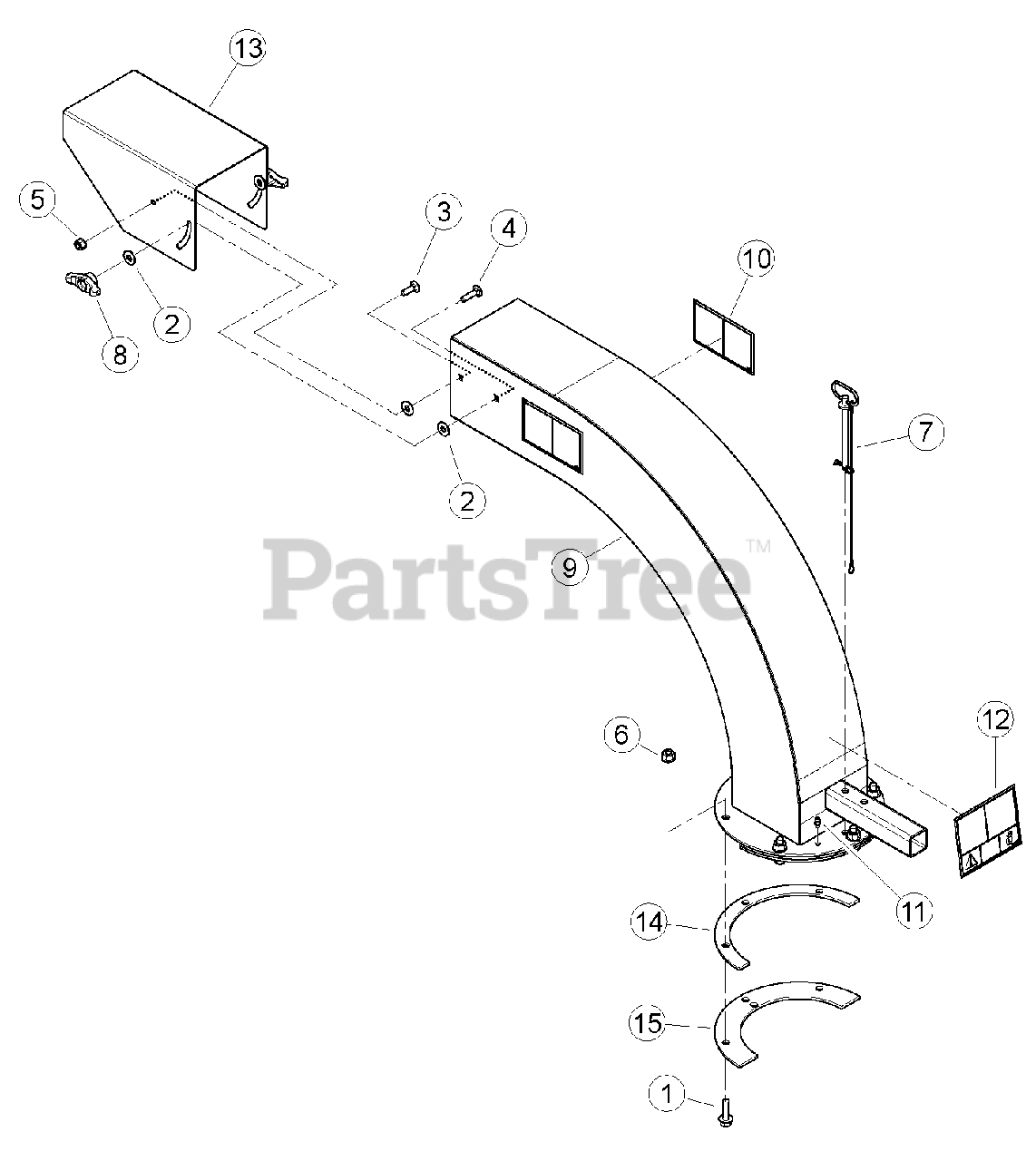

Orchard Discharge Chute Parts Diagram

  • Title
1

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

2

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

3

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

4

Bear Cat 15398

BOLT, 5/16 X 1-1/4 GR5 CRG ZP

$

$

Not available

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

6

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 30131-00

PIN, 3/8 X 4.25 DISCHARGE

$

$

Not available

8

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/ LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

9

Bear Cat 71920-00

ASSEMBLY, 6" ORCHARD DISCHARGE CHUTE

Note: (INCLUDES ITEMS 10-12)

$646.99

$

Usually ships in 3-7 days

0

10

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

12

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0

13

Bear Cat 71931-12

CAP, 6" ORCHARD DISCHARGE

$

$

Not available

14

Bear Cat 72452-12

SPACER, DISCHARGE PIVOT

$

$

Not available

15

Bear Cat 72453-12

RING, DISCHARGE CLAMP

$

$

Not available
