CH 6627 H - Bear Cat 6" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0414HW005579 & Above) Idler (B) Parts Diagram

6" Chipper, 627cc Briggs & Stratton

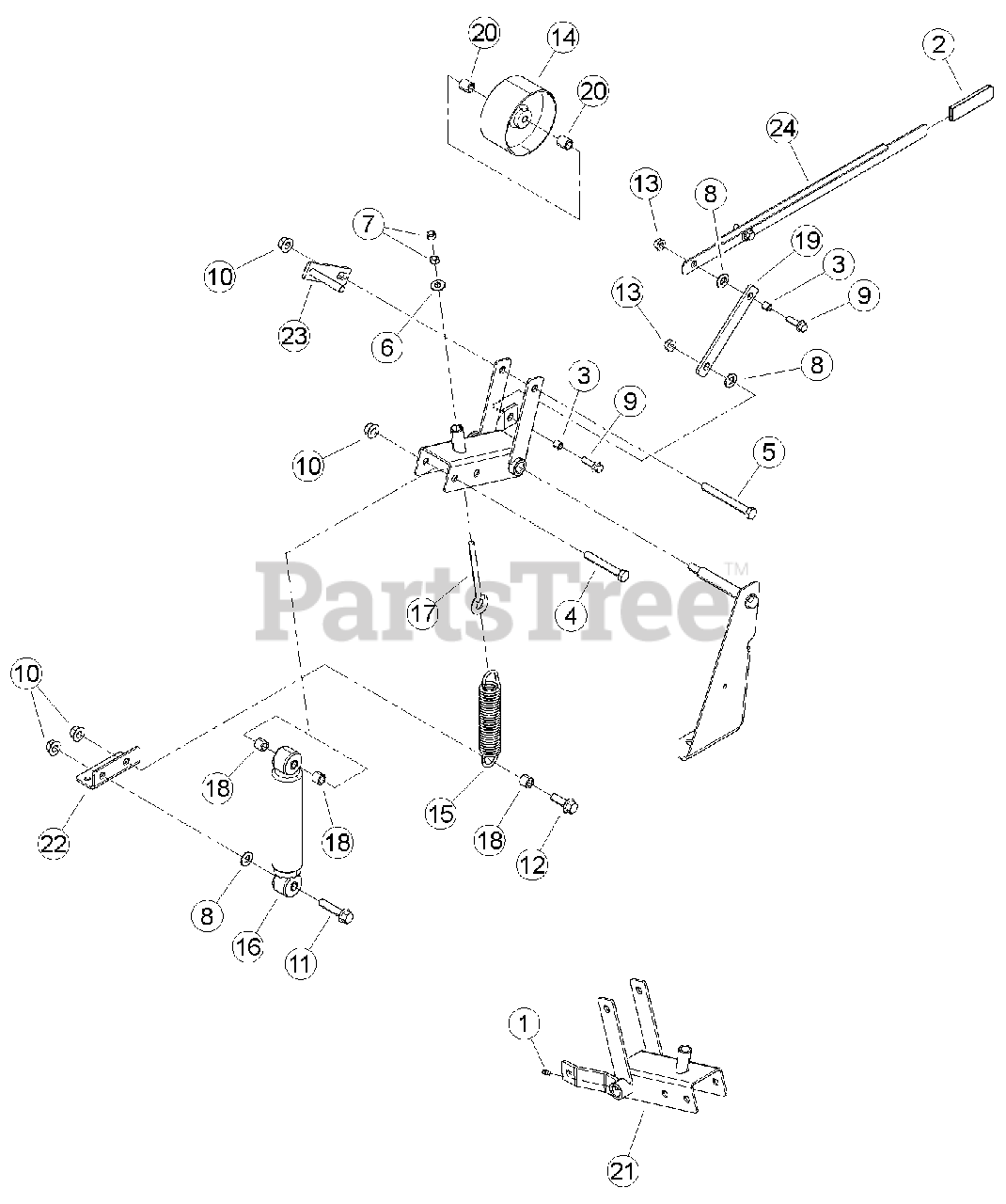

Idler (B) Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14239-00

BUSHING, 3/8 X 1/2 SLEEVE LUBE

$2.49

$

Usually ships in 3-7 days

0

4

15016

BOLT, 1/2 X 3-1/2" GR5 HEX HD ZP

$

$

Not available

5

15017

BOLT, 1/2 X 4-1/2" GR5 HHCS NC ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

7

Bear Cat 15042

NUT, 3/8" HEX NC ZP

$0.99

$

In Stock, only 1 left!

0

8

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

9

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

15228-00

BOLT, 1/2 -13 X 2-1/4 FLANGE NC

$

$

Not available

12

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

13

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

14

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$85.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16502

SPRING, 7-3/4" EXTENSION

$

$

Not available

16

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

17

17804

EYEBOLT, 3/8" X 5" LG 4-1/4 THD ZP

$

$

Not available

18

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

19

Bear Cat 74029-12

LINK, ENGAGEMENT ARM

$

$

Not available

20

Bear Cat 74041-12

SPACER, IDLER SHEAVE

$15.99

$

Usually ships in 3-7 days

0

21

Bear Cat 74062-12

WELDMENT, IDLER ARM

$

$

Not available

22

Bear Cat 74074-12

BRACKET, SPRING ANCHOR

$

$

Not available

23

Bear Cat 74097-12

WELDMENT, BELT PIN

$

$

Not available

24

Bear Cat 76525-12

LEVER, CLUTCH ENGAGEMENT

$

$

Not available
