CH 6627 H - Bear Cat 6" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0414HW005579 & Above) Frame (B) Parts Diagram

6" Chipper, 627cc Briggs & Stratton

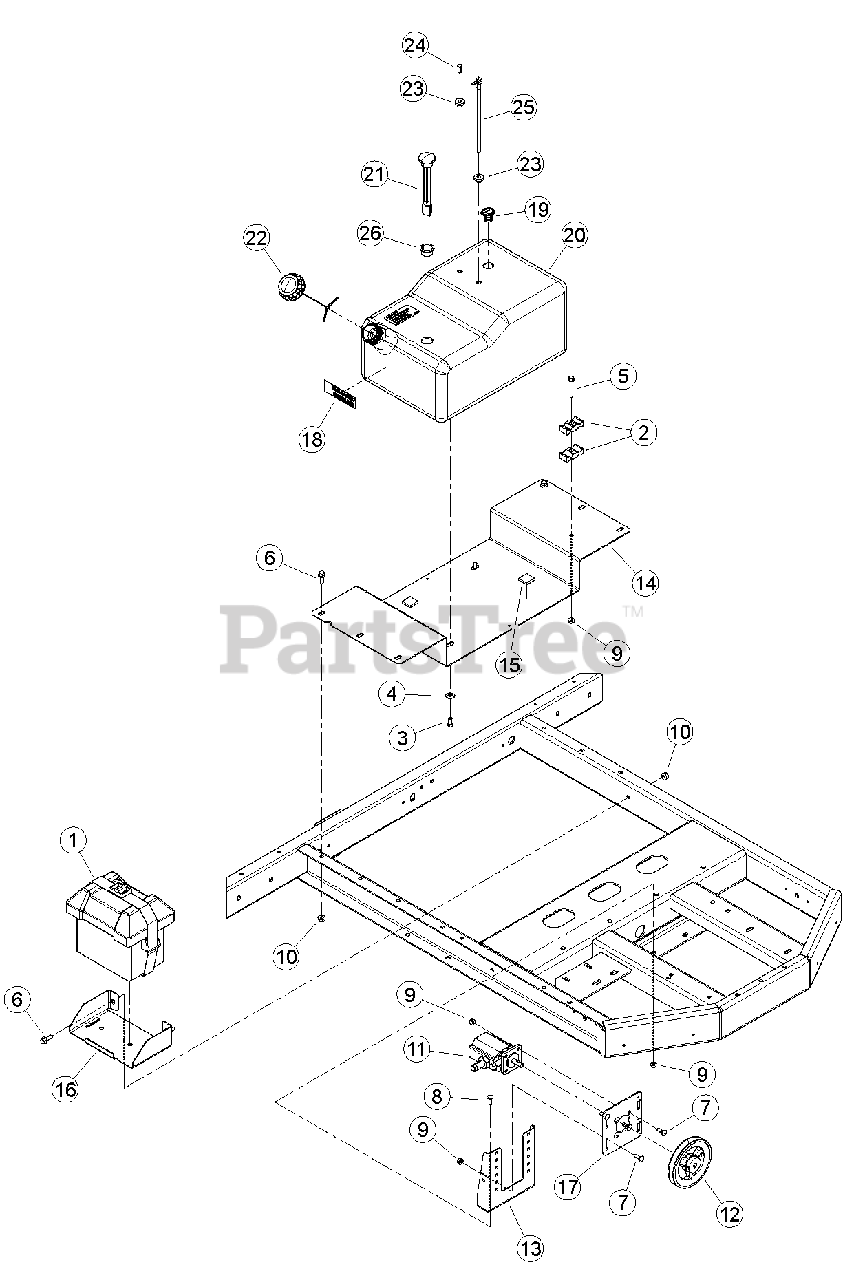

Frame (B) Parts Diagram

  • Title
1

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

2

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

3

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

5

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

Bear Cat 15301

BOLT, 5/16-18 X 1 GR5 CRG

$

$

Not available

8

Bear Cat 15349

BOLT, 5/16-18 X 7/8 GR5 CRG

$

$

Not available

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

12

32921-00

PULLEY, 5.6 - 1/2" BORE FHP B

$

$

Not available

13

Bear Cat 75965-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available

14

Bear Cat 76365-12

BASE, 9.25 GAL NYLON TANK

$

$

Not available

15

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0

16

Bear Cat 76612-12

BRACKET, BATTERY HOLDER

$

$

Not available

17

Bear Cat 76910-12

PLATE, HYDRAULIC PUMP

$

$

Not available

Bear Cat 77711-00

ASSEMBLY, FUEL TANK

Note: (INCLUDES ITEMS 18-26)

$426.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

19

Bear Cat 32542-00

VALVE, ROLL OVER

$181.99

$

In Stock, only 1 left!

0

20

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

21

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$51.99

$

Usually ships in 3-7 days

0

22

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$39.99

$

Usually ships in 3-7 days

0

23

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

24

Bear Cat 36690-00

PLUG, TANK VENT

$9.99

$

Usually ships in 3-7 days

0

25

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

26

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0

Bear Cat 76908-00

HOSE, 63" FUEL LINE 1/4" DIA

$72.99

$

Usually ships in 3-7 days

0
