CH 6627 H - Bear Cat 6" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0414HW005579 & Above) Chute (A) Parts Diagram

6" Chipper, 627cc Briggs & Stratton

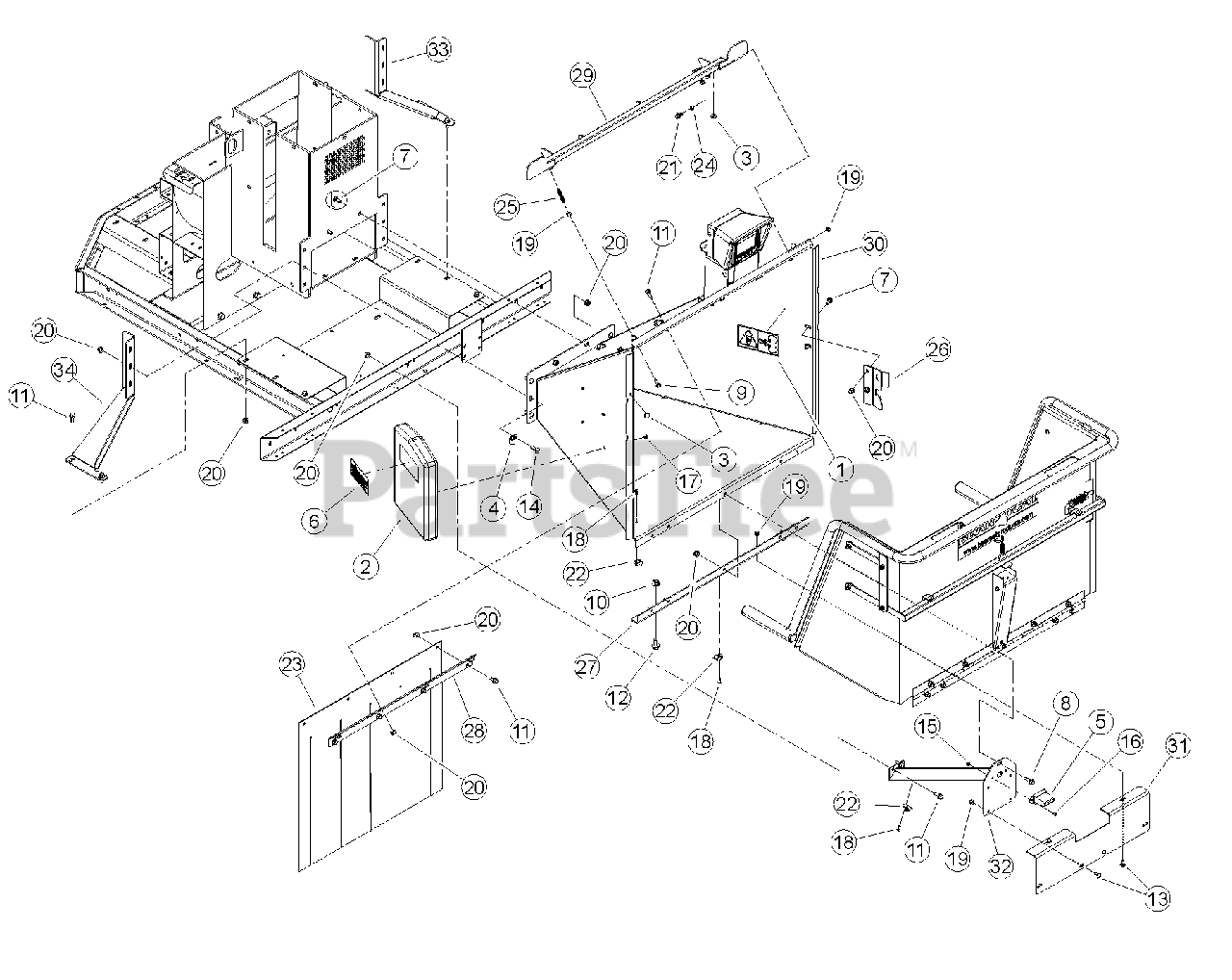

Chute (A) Parts Diagram

  • Title

1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

4

14048-00

CLAMP, 9/16 COATED

$

$

Not available

5

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

6

Bear Cat 14942-00

DECAL, MULTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

7

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

8

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

9

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

12

15231-00

BOLT, 1/2-13 1.00 GR5 FLANGE NC

$

$

Not available

13

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP (CE COMPLIANT MODELS)

$

$

Not available

14

15378

BOLT, 3/8-16 X 1-1/4 GR5 CRG

$

$

Not available

15

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

16

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

17

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

Bear Cat 15908-00

BOLT, 5/16-18 X 3/4 ZP FLANGE SHOULDER

$

$

Not available

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

23

Bear Cat 31263-00

FLAP, CHUTE

$135.99

$

Usually ships in 3-7 days

0

24

Bear Cat 33282-00

BEARING, .375 X .50 X .25 LONG

$16.99

$

Usually ships in 3-7 days

0

25

Bear Cat 33283-00

SPRING, COMPRESSION .437 DIA X 2.0 LONG

$40.99

$

Usually ships in 3-7 days

0

26

Bear Cat 71984-35

PLATE, TRAY LATCH

$

$

Not available

27

Bear Cat 71989-12

ANGLE, 6" INFEED SUPPORT

$

$

Not available

28

Bear Cat 71990-12

SUPPORT, 6" CHIPPER FLAP

$

$

Not available

29

Bear Cat 72086-12

WELDMENT, 6" TOP SAFETY BAR

$

$

Not available

30

Bear Cat 72312-35

WELDMENT, 6" CHIPPER CHUTE

$

$

Not available

31

Bear Cat 75246-12

BRACKET, EUROPEAN LICENSE (CE COMPLIANT MODELS)

$

$

Not available

32

Bear Cat 76679-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

33

Bear Cat 77573-12

PLATE, CHIPPER SUPPORT RH

$

$

Not available

34

Bear Cat 77574-12

PLATE, CHIPPER SUPPORT LH

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
