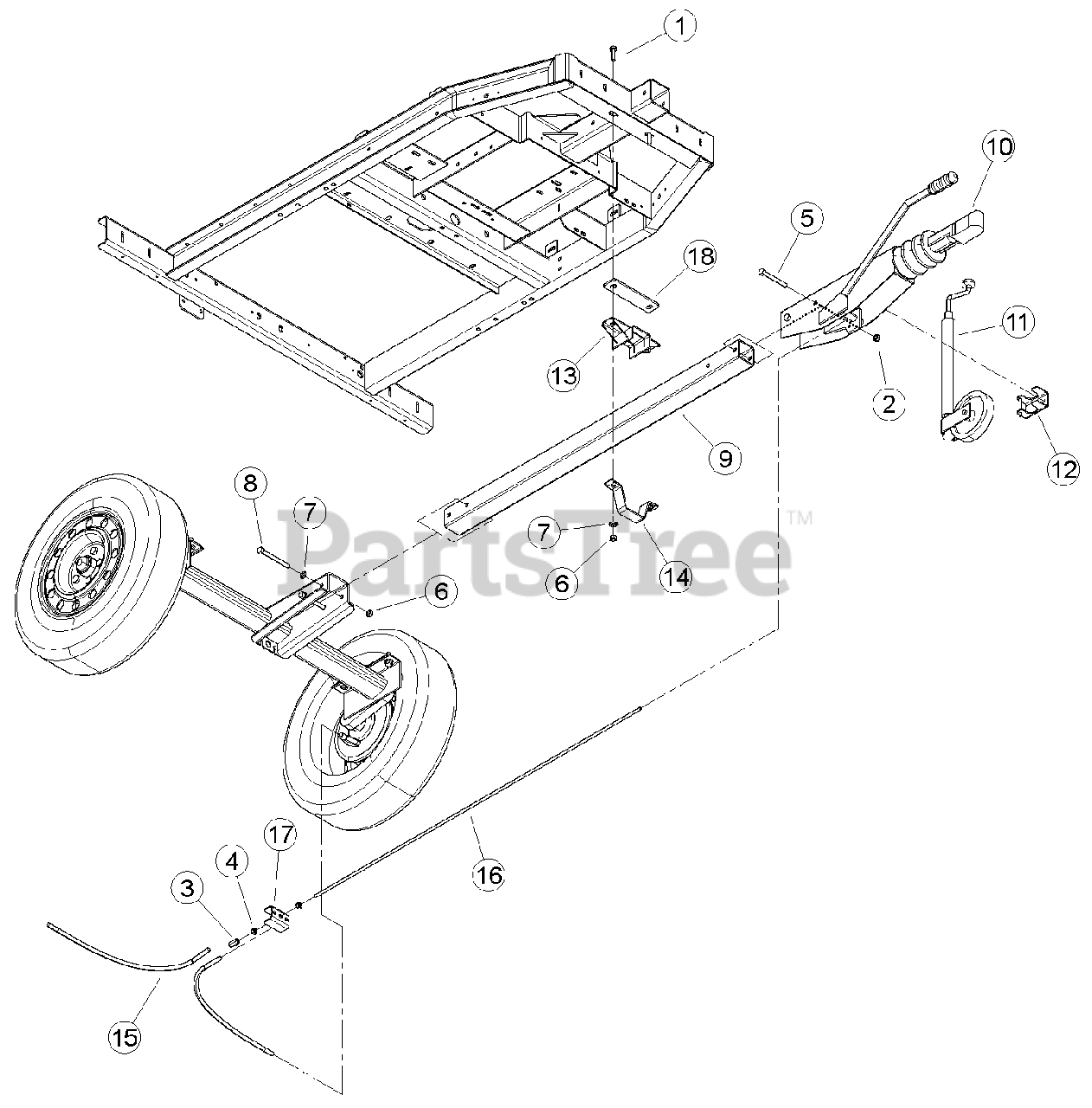

CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0418GW005192 & Above) Hitch (Part 2) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

Hitch (Part 2) Parts Diagram

  • Title
1

15621

BOLT, M12 X 1.75 X 40 GR8.8 HCPS

$

$

Not available

2

15749-00

NUT, M12 X 1.75 HEX NYLOCK TYPE NEY ZP

$

$

Not available

3

15886-00

BOLT, 12MM LUG FOR WHEELS

$

$

Not available

4

15887-00

NUT, SPHERICAL M10 X 35MM

$

$

Not available

5

15888-00

NUT, M10 HEX

$

$

Not available

6

15890-00

BOLT, M12 X 100 CLASS 10.9

$

$

Not available

7

15891-00

NUT, M12 HEX

$

$

Not available

8

15892-00

WASHER, M12 FLAT

$

$

Not available

9

15917-00

BOLT, M12 X 120 CLASS 10.9

$

$

Not available

10

32178-00

DRAWBAR, 70MM X 70MM

$

$

Not available

11

32179-00

COUPLER, 50MM W/ BRAKE HANDLE

$

$

Not available

12

32180-00

JACK, JOCKEY WHEEL

$

$

Not available

13

32181-00

CLAMP, JOCKEY WHEEL

$

$

Not available

14

32182-00

MOUNT, FRONT DRAWBAR

$

$

Not available

15

32183-00

CLAMP, FRONT DRAWBAR

$

$

Not available

16

Bear Cat 32184-00

CABLE, AXLE BRAKES SHORT

$68.99

$

Usually ships in 3-7 days

0

17

32185-00

ROD, BRAKE CONTROL

$

$

Not available

18

32186-00

BRACKET, BALANCE BAR

$

$

Not available

19

77356-12

PLATE, DRAWBAR MOUNT

$

$

Not available

32291-00

HANDLE, JOCKEY WHEEL CLAMP

Note: (NOT SHOWN)

$

$

Not available
