CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0418GW005192 & Above) Chute (B) (Part 2) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

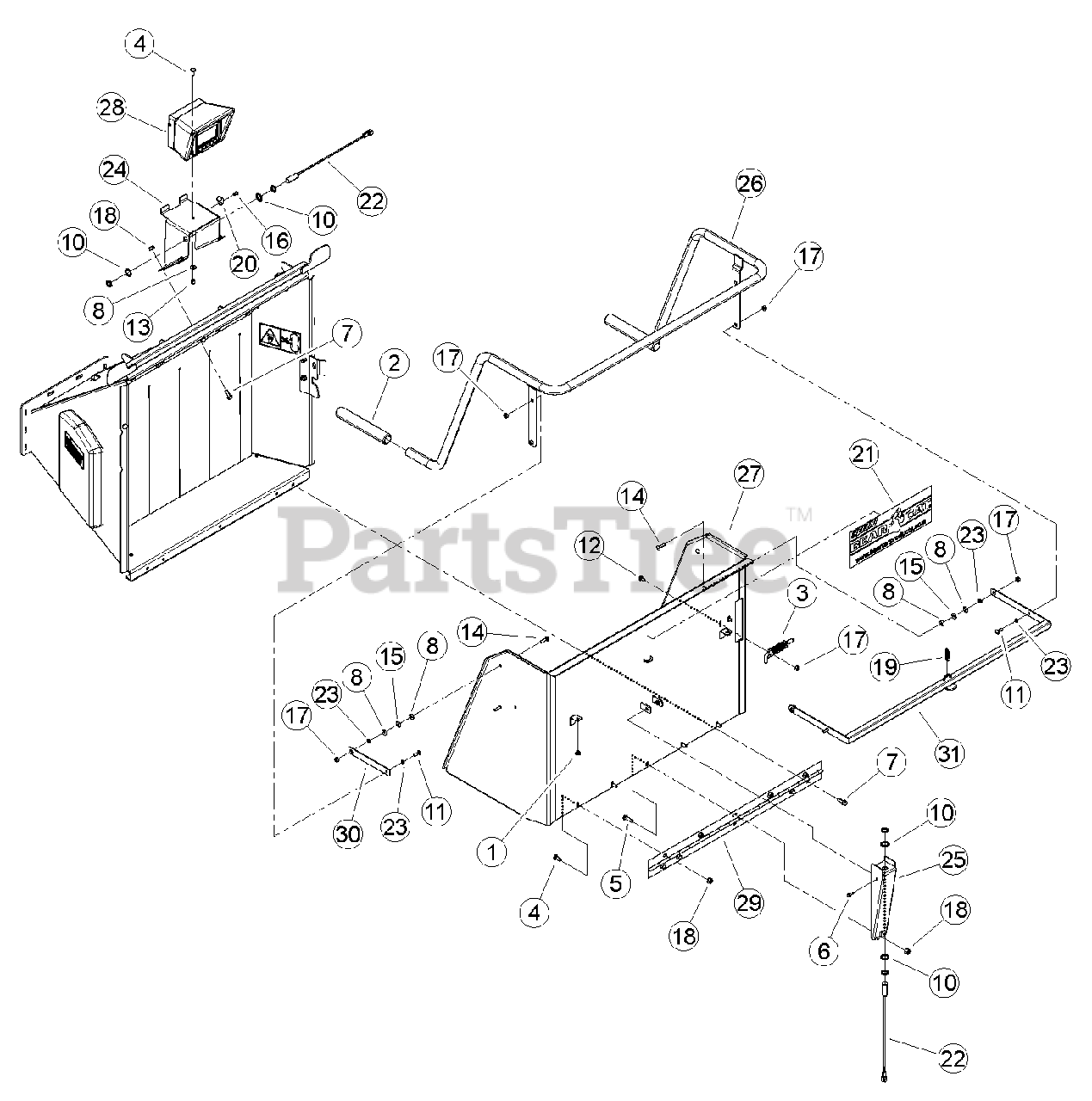

Chute (B) (Part 2) Parts Diagram

  • Title
1

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

4

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

5

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

6

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

7

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

9

15260

WASHER, 3/8" SAE FLAT ZP

$

$

Not available

10

Bear Cat 15286-00

WASHER, 3/4 INTERNAL LOCK

$1.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

12

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15398

BOLT, 5/16 X 1-1/4" GR5 CRG ZP

$

$

Not available

15

Bear Cat 15409

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$

$

Not available

16

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

18

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

19

Bear Cat 16698

SPRING, 1/2 X 2.00 LG ZP

$21.99

$

Usually ships in 3-7 days

0

20

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

22

Bear Cat 33281-00

SENSOR, M18 PROXIMITY (REPLACEMENT PART)

$247.99

$

In Stock, only 1 left!

0

23

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

24

Bear Cat 72001-12

MOUNT, 6" DDC

$

$

Not available

25

Bear Cat 72020-12

MOUNT, 6" KNEEBAR PROX SENSOR

$

$

Not available

26

Bear Cat 72303-35

WELDMENT, KNEEBAR 6"

$

$

Not available

27

Bear Cat 72307-12

WELDMENT, 6" INFEED TRAY

$

$

Not available

28

Bear Cat 72413-00

ASSEMBLY, DDC ENCLOSURE

$3448.99

$

Usually ships in 3-7 days

0

29

Bear Cat 74033-12

HINGE, EXTENSION TRAY

$

$

Not available

30

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

31

Bear Cat 74202-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 33297-00

HARNESS, 6" DIESEL DDC CONTROLLER

Note: (NOT SHOWN)

$1324.99

$

Usually ships in 3-7 days

0
