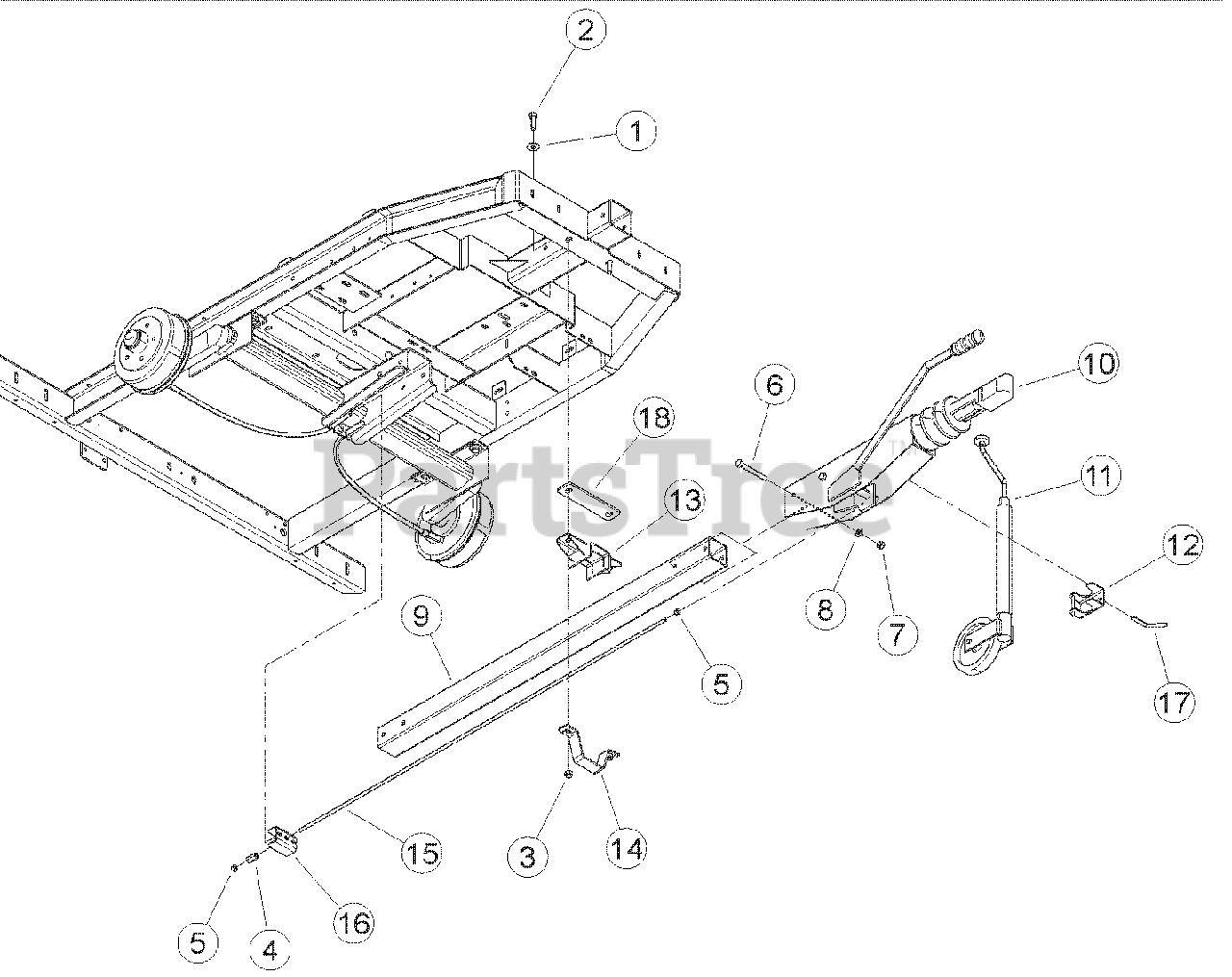

CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Hitch (CE COMPLIANT - 5VJAA0016CW003427 & ABOVE) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

Hitch (CE COMPLIANT - 5VJAA0016CW003427 & ABOVE) Parts Diagram

  • Title

1

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

2

15621

BOLT, M12 X 1.75 X 40 HEX HD GR8.8

$

$

Not available

3

15749-00

NUT, M12 X 1.75 HEX NYLOCK TYPE NEYZP

$

$

Not available

4

15887-00

NUT, SPHERICAL M10 X 35MM

$

$

Not available

5

15888-00

NUT, M10 HEX

$

$

Not available

6

15890-00

BOLT, M12 X 100 CLASS 10.9

$

$

Not available

7

15891-00

NUT, M12 HEX

$

$

Not available

8

15892-00

WASHER, M12 FLAT

$

$

Not available

9

32178-00

DRAWBAR, 70MM X 70MM

$

$

Not available

10

32179-00

COUPLER, 50MM W/ BRAKE HANDLE

$

$

Not available

11

32180-00

JACK, JOCKEY WHEEL

$

$

Not available

12

32181-00

CLAMP, JOCKEY WHEEL

$

$

Not available

13

32182-00

MOUNT, FRONT DRAWBAR

$

$

Not available

14

32183-00

CLAMP, FRONT DRAWBAR

$

$

Not available

15

32185-00

ROD, BRAKE CONTROL

$

$

Not available

16

32186-00

BRACKET, BALANCE BAR

$

$

Not available

17

32291-00

HANDLE, JOCKEY WHEEL CLAMP

$

$

Not available

18

77356-12

PLATE, DRAWBAR MOUNT

$

$

Not available
