CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Frame (Part 2) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

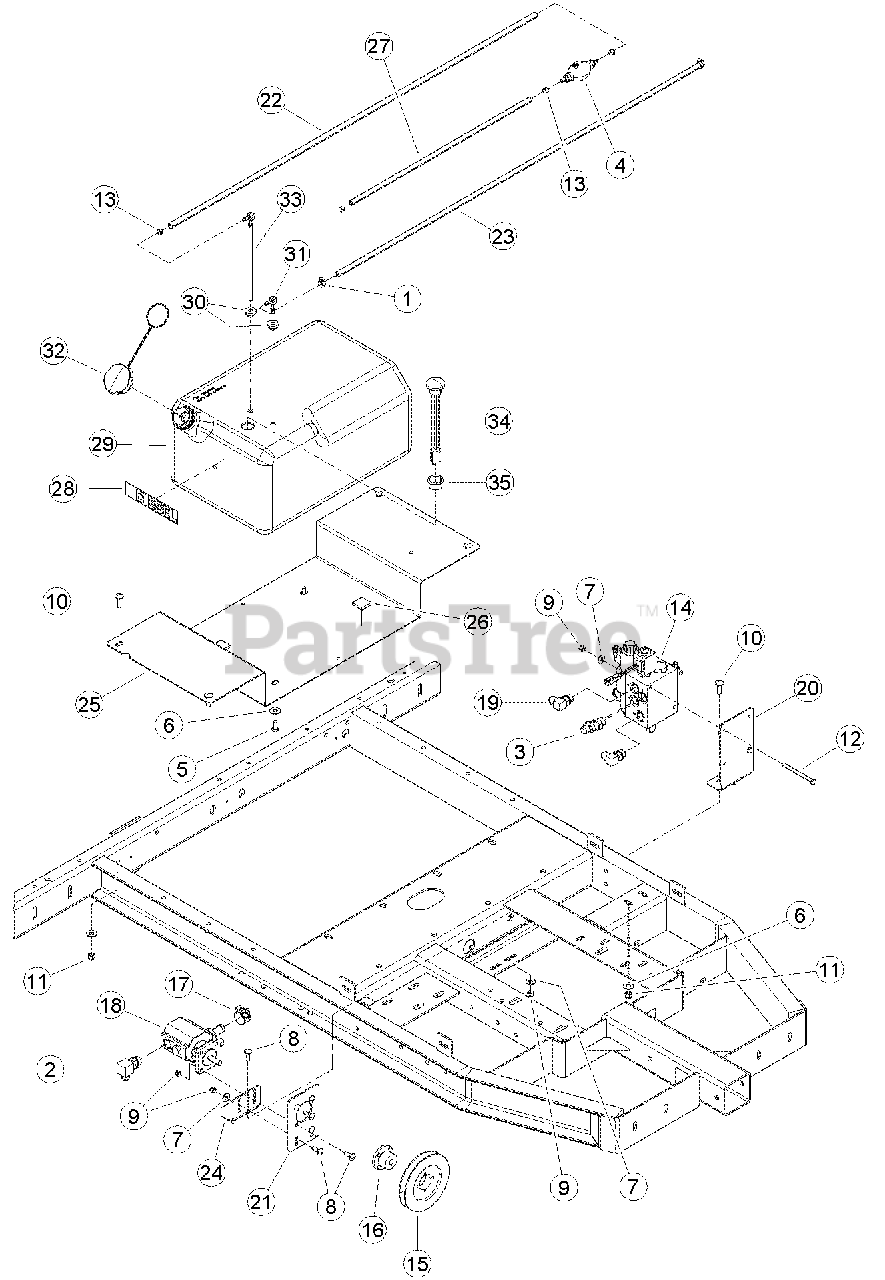

Frame (Part 2) Parts Diagram

  • Title
1

0123-0429-00

CLAMP, HOSE 5/16 X 5/8 DIA MAX

$

$

Not available

2

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

3

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

4

Bear Cat 12751

BULB, PRIMER

$50.99

$

In Stock, only 1 left!

0

5

Bear Cat 15005

BOLT, 3/8 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

8

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

9

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

10

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15417

BOLT, 5/16 X 4 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

14

Bear Cat 18527-00

ASSEMBLY, CHIPPER VALVE
(Superseded to 71628-00)

$2142.99

$

Usually ships in 3-7 days

0

Bear Cat 18602-00

SWITCH, PRESSURE
(Superseded to 30132-00)

$439.99

$

Usually ships in 3-7 days

0

15

Bear Cat 18704-00

SHEAVE, QT 1B5.6

$

$

Not available

16

Bear Cat 18705-00

BUSHING, QT 1/2

$

$

Not available

17

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

18

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

19

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

20

75129-12

PLATE, VALVE MOUNTING

$

$

Not available

21

Bear Cat 75134-12

MOUNT, PUMP

$46.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75380-00

HOSE, 63" FUEL LINE

$77.99

$

Usually ships in 3-7 days

0

23

Bear Cat 75381-00

HOSE, 63" RETURN LINE
(Superseded to 76908-00)

$72.99

$

Usually ships in 3-7 days

0

24

Bear Cat 75428-12

MOUNT, PUMP

$79.99

$

Usually ships in 3-7 days

0

25

Bear Cat 76365-12

BASE, 9.25 GAL NYLON TANK

$

$

Not available

26

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76725-00

HOSE, 38" FUEL

$62.99

$

Usually ships in 3-7 days

0

Bear Cat 77160-00

ASSEMBLY, FUEL TANK DIESEL
(Superseded to 71455-00)

Note: (INCLUDES ITEMS 28 - 35)

$403.99

$

Usually ships in 3-7 days

0

28

Bear Cat 16778

DECAL, DIESEL FUEL

$14.99

$

Usually ships in 3-7 days

0

29

Bear Cat 36522-00

TANK, 9.25 GAL ROTOMOLDED FUEL

$

$

Not available

30

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

31

Bear Cat 36691-00

FITTING, TANK VENT

$16.99

$

Usually ships in 3-7 days

0

32

Bear Cat 36693-00

CAP, FUEL TANK VENTED

$33.99

$

Usually ships in 3-7 days

0

33

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

34

Bear Cat 36695-00

GAUGE, FUEL LEVEL KELCH 100

$57.99

$

Usually ships in 3-7 days

0

35

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0
