CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Frame (NON-CE COMPLIANT) (Part 1) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

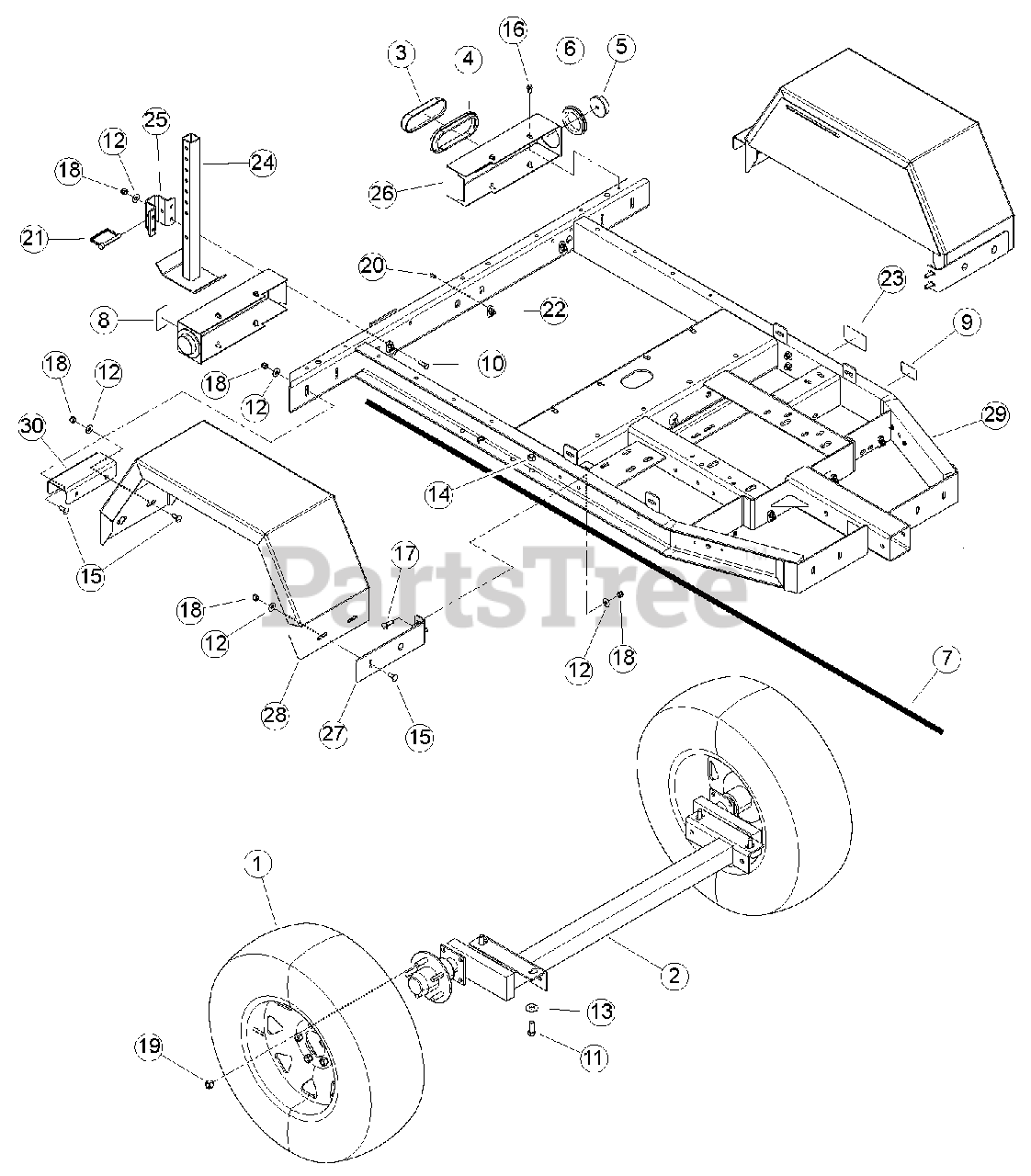

Frame (NON-CE COMPLIANT) (Part 1) Parts Diagram

  • Title
1

Bear Cat 12125

ASSY, 15 INCH TIRE + WHEEL

$556.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14256-00

AXLE, 2500 LB TORSION

$982.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14262-00

TAIL LIGHT, OVAL RED

$52.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14263-00

GROMMET, OVAL TAIL LIGHT

$

$

Not available

5

Bear Cat 14361-00

LIGHT, RED CLEARANCE

$

$

Not available

6

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

7

Bear Cat 14372-00

WIRE HARNESS, TRAILER

$288.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

9

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

10

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

11

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

12

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

13

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

14

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

15

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

16

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

17

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

20

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

21

16808

PIN, 3/8" X 2-3/4" SNAP

$

$

Not available

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

23

Bear Cat 32154-00

DECAL, P215/70R15 LOAD RATING

$22.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

25

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

26

Bear Cat 74019-12

BRACKET, TAILLIGHT

$

$

Not available

27

Bear Cat 74024-12

BRACKET, FENDER

$

$

Not available

28

Bear Cat 74144-12

WELDMENT, CHIPPER FENDER

$

$

Not available

29

Bear Cat 75118-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

30

Bear Cat 75147-12

PLATE, FENDER SPACER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

$

$

Not available
