CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Frame (CE COMPLIANT) (Part 1) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

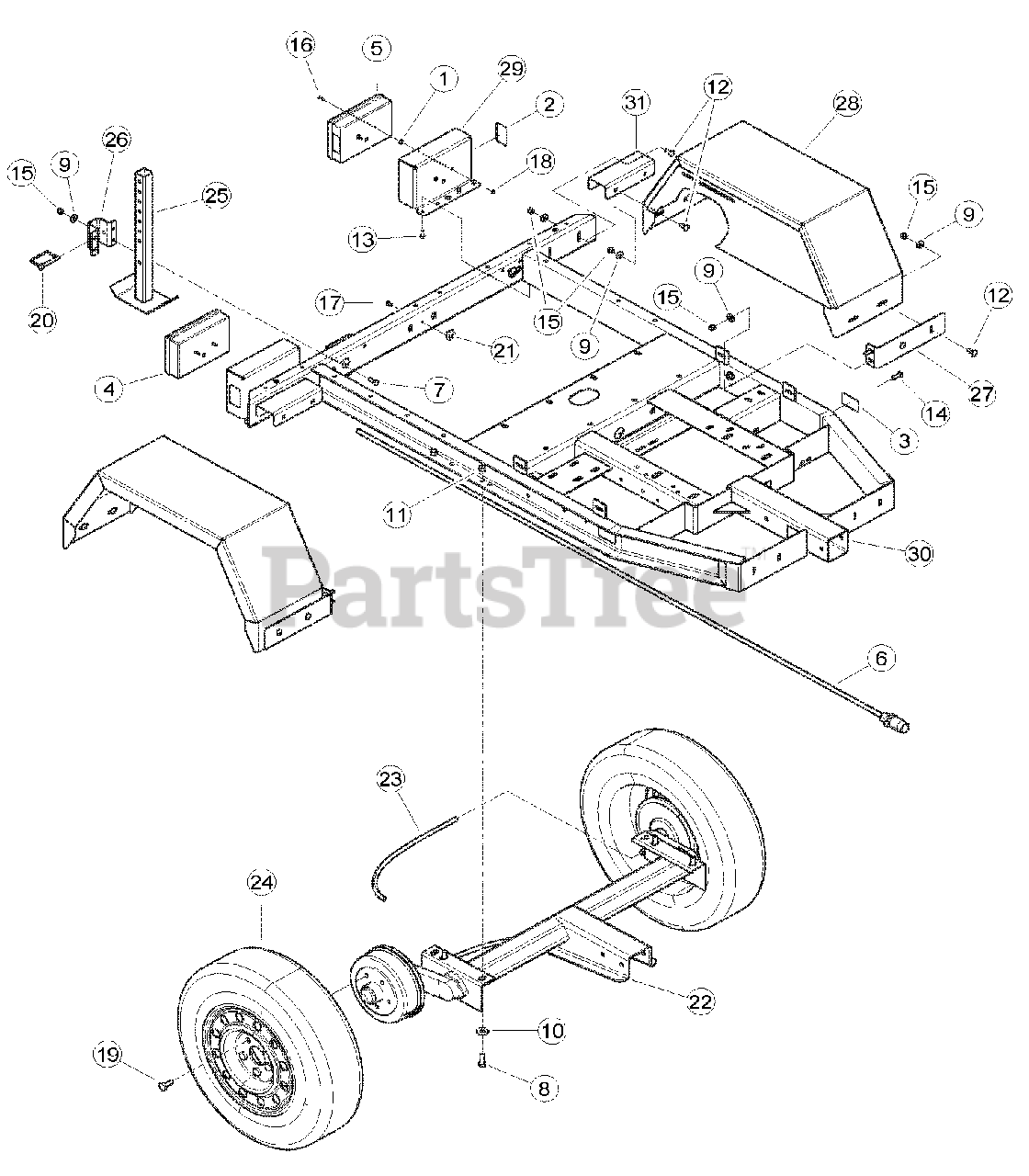

Frame (CE COMPLIANT) (Part 1) Parts Diagram

  • Title

1

0934-0004-00

GROMMET, 1/4 X 5/8 RUBBER

$

$

Not available

2

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14587-00

HARNESS, TRAILER LIGHTING

$319.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

8

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

11

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

12

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

13

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

14

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

16

15557

BOLT, 10-24 X 3/4 HEX HD GR8 PLAIN

$

$

Not available

17

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15830-00

NUT, #10-24 K-LOCK ZP

$2.49

$

Usually ships in 3-7 days

0

19

15886-00

BOLT, 12MM LUG FOR WHEELS

$

$

Not available

20

16808

PIN, 3/8" X 2-3/4" SNAP

$

$

Not available

21

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

22

WELDMENT, 2500 LB. TORSION AXLE (WAS PN 74331-00)

$

$

Not available

22

32177-00

AXLE, TORSION W/ BRAKES (VIN # 5VJAA0016CW003427 AND ABOVE)

$

$

Not available

23

Bear Cat 32184-00

CABLE, AXLE BRAKES SHORT

$68.99

$

Usually ships in 3-7 days

0

24

32192-00

WHEEL/TIRE, P205/65R15

$

$

Not available

25

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

26

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

27

Bear Cat 74024-12

BRACKET, FENDER

$

$

Not available

28

Bear Cat 74144-12

WELDMENT, CHIPPER FENDER

$

$

Not available

29

Bear Cat 74321-12

BRACKET, TAIL LIGHT

$

$

Not available

30

Bear Cat 75118-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

31

Bear Cat 75147-12

PLATE, FENDER SPACER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

$

$

Not available
