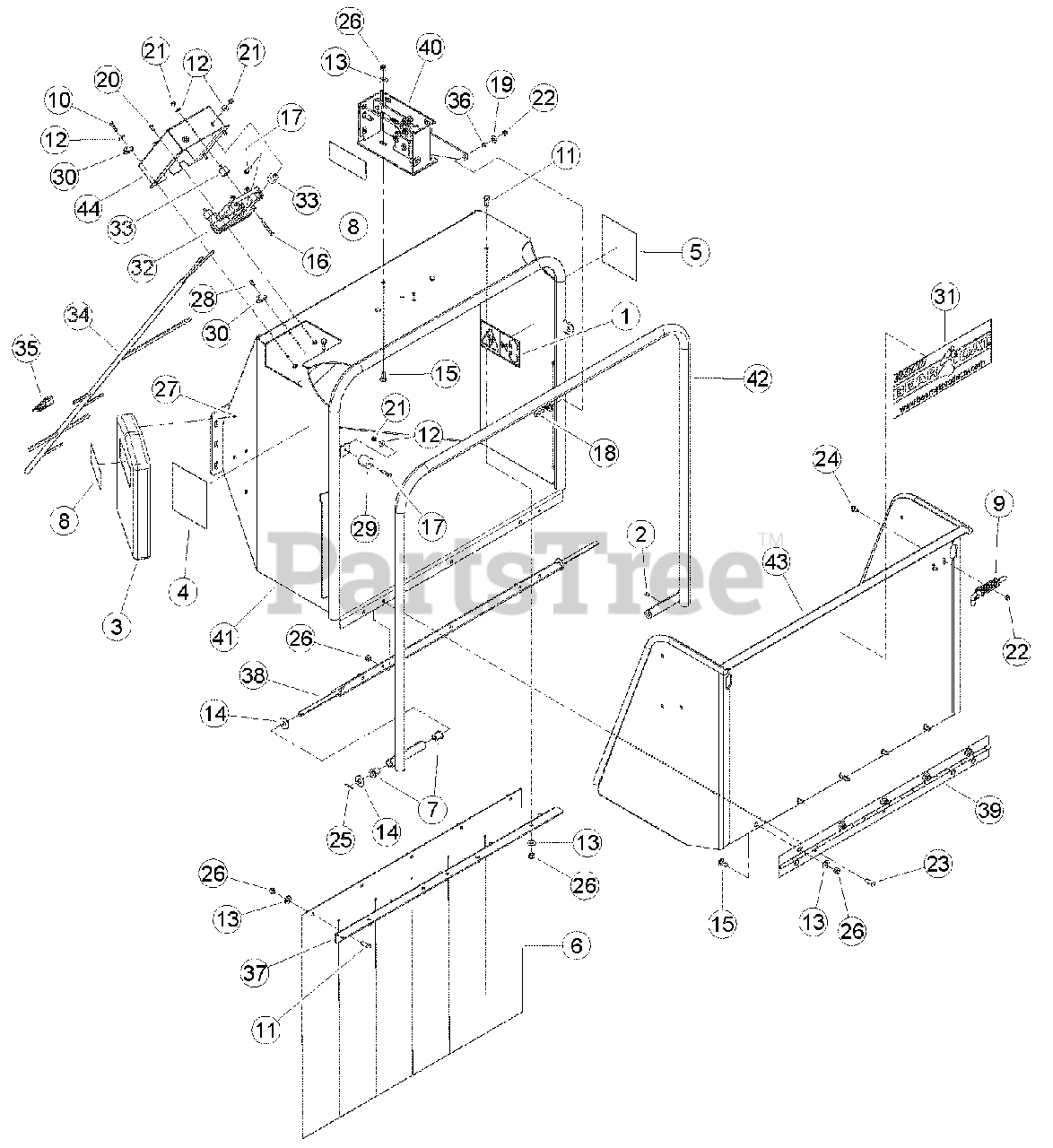

CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Chute (NON-CE COMPLIANT) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

Chute (NON-CE COMPLIANT) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

5

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

6

Bear Cat 14130-00

FLAP, CHUTE

$202.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

8

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

9

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

10

15002

BOLT, 1/4 X 1 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

12

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

13

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

14

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

15

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

16

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HEX HD GR5 ZP

$

$

Not available

17

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

18

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

19

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

20

15343

BOLT, 1/4 X 5/8 HEX HD GR5 ZP

$

$

Not available

21

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

22

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

23

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

24

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

25

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

26

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

27

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

28

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

29

Bear Cat 18420-00

BUMPER, RECESSED RUBBER

$31.99

$

Usually ships in 3-7 days

0

30

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

31

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

32

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

33

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

34

Bear Cat 36351-00

HARNESS, 6IN DIESEL-PLUS 1
(Superseded to 32104-00)

$927.99

$

Usually ships in 3-7 days

0

35

Bear Cat 36391-00

PLUG, JUMPER HARNESS

$20.99

$

Usually ships in 3-7 days

0

36

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

37

Bear Cat 73958-12

SUPPORT, CHIPPER FLAP

$77.99

$

Usually ships in 3-7 days

0

38

Bear Cat 73990-12

WELDMENT, CONTROL PIVOT

$188.99

$

Usually ships in 3-7 days

0

39

Bear Cat 74033-12

HINGE, EXTENSION TRAY

$

$

Not available

40

Bear Cat 75186-00

ASSEMBLY, SWITCH BOX

$469.99

$

Usually ships in 3-7 days

0

41

75194-35

WELDMENT, CHIPPER CHUTE

$

$

Not available

42

Bear Cat 75195-12

WELDMENT, CONTROL ARM

$351.99

$

Usually ships in 3-7 days

0

43

Bear Cat 75248-12

WELDMENT, EXTENSION TRAY

$1068.99

$

Usually ships in 3-7 days

0

44

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0
