CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002754 - 5VJAA0014CW003748) Chute Attach (CE COMPLIANT) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

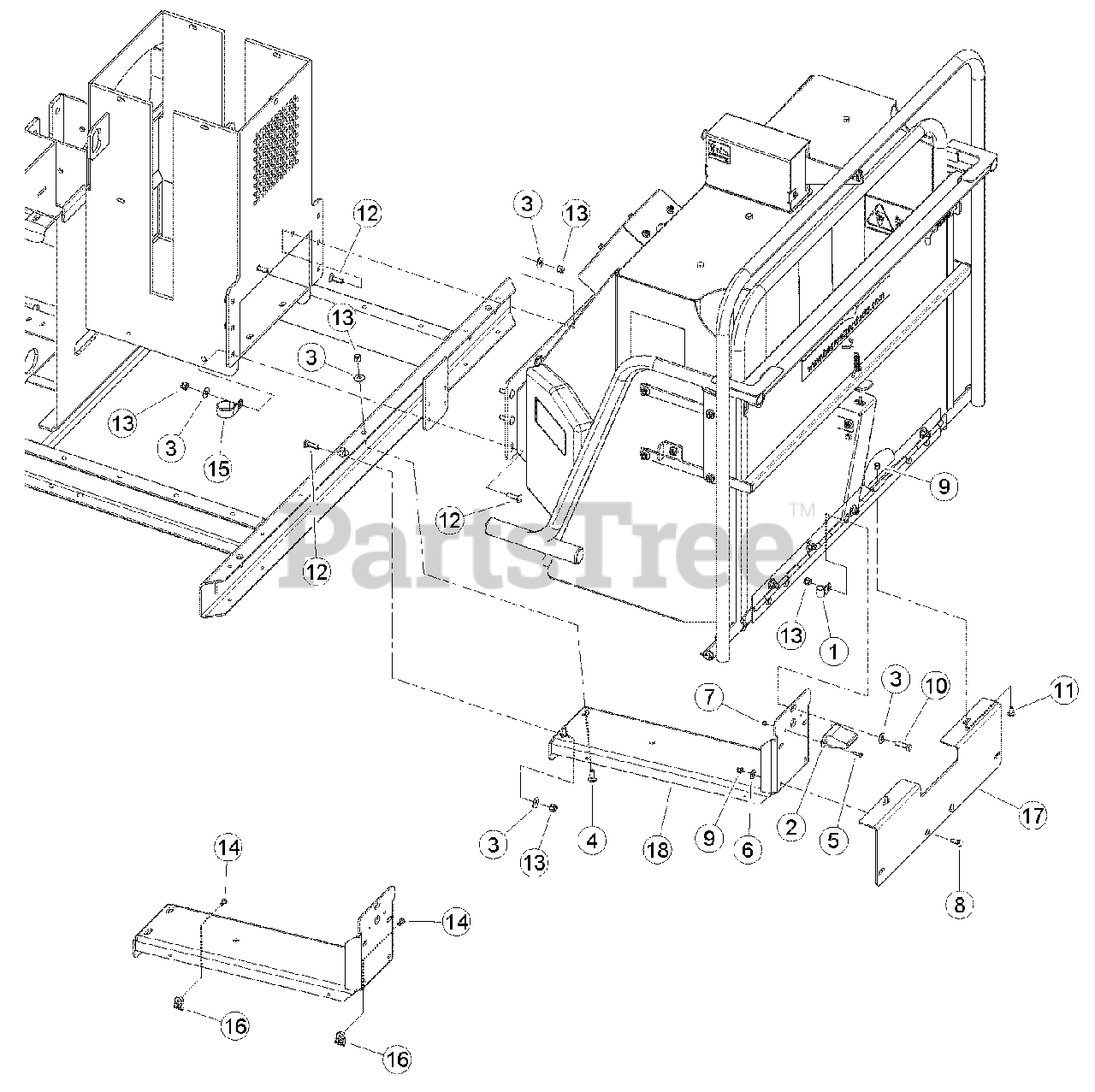

Chute Attach (CE COMPLIANT) Parts Diagram

  • Title

1

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

4

12917-00

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

5

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

7

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

8

Bear Cat 18527-00

ASSEMBLY, SA - 1987 VALVE
(Superseded to 71628-00)

$2142.99

$

Usually ships in 3-7 days

0

9

Bear Cat 18532-00

HOSE ASSEMBLY, -10 FMJIC / -10 FMJIC LD 90 X 21"

$85.99

$

Usually ships in 3-7 days

0

10

Bear Cat 18533-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC 90 X 21"

$57.99

$

Usually ships in 3-7 days

0

11

Bear Cat 18535-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC 90 X 61"

$106.99

$

Usually ships in 3-7 days

0

12

Bear Cat 18536-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC X 61"

$94.99

$

Usually ships in 3-7 days

0

13

HOSE ASSEMBLY, -12 FMJIC X 1" SUCTION X 25" (WAS 18537-00, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 36016-00)

$

$

Not available

13

Bear Cat 36016-00

HOSE, .75 ID. X 24" 100R4 HYD.

$79.99

$

Usually ships in 3-7 days

0

14

Bear Cat 31425-00

CLAMP, 1" OD. HOSE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36015-00

PUMP, PB CW HI/LO .646 DISP.
(Superseded to 31671-00)

$639.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36017-00

ADAPTER, -10 MORING / .75 90 BEAD HOSE

$40.99

$

Usually ships in 3-7 days

0

17

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

18

Bear Cat 75091-12

WELDMENT, HYDRAULIC TANK

$

$

Not available
