CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Hydraulic Layout Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

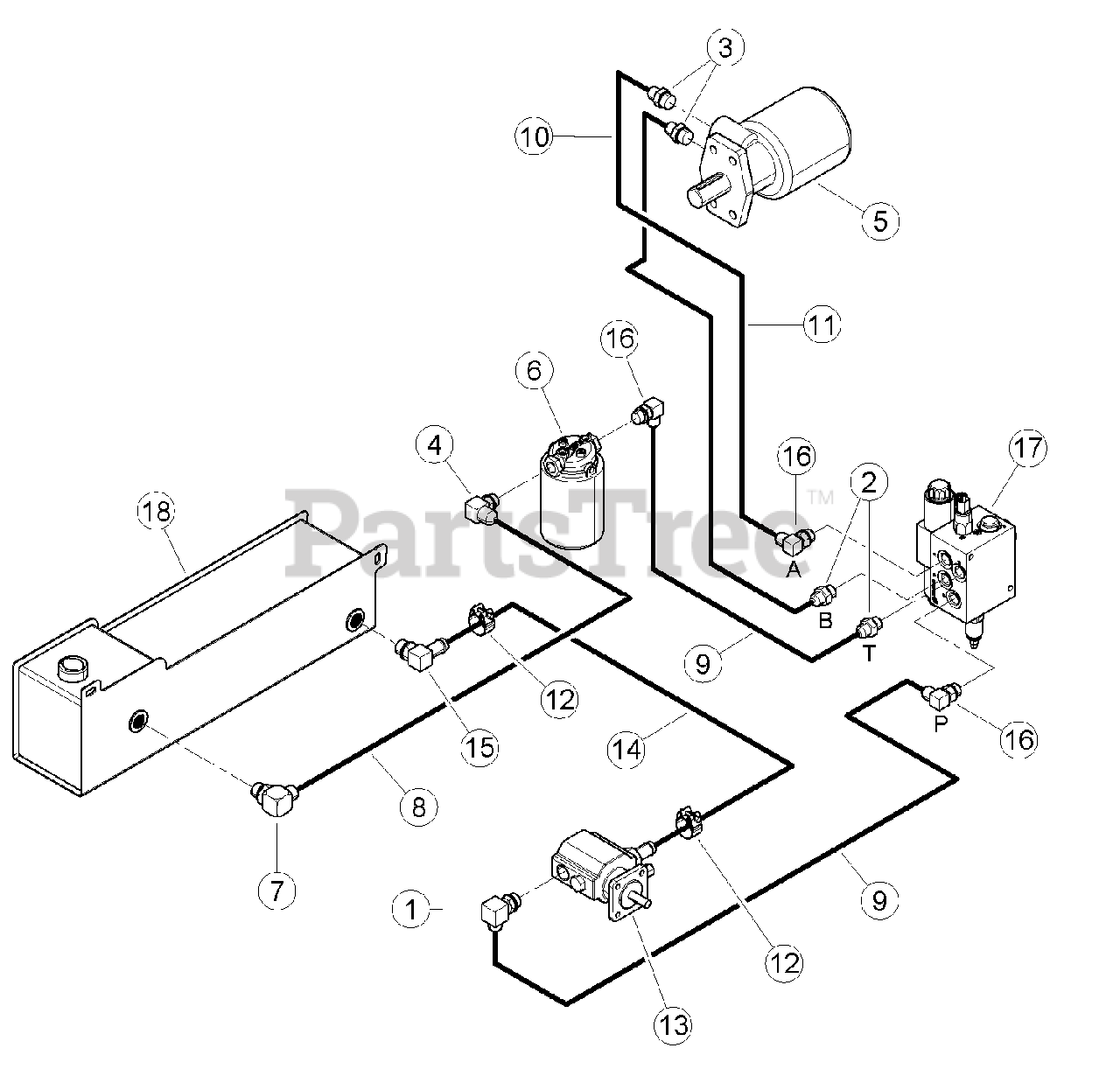

Hydraulic Layout Parts Diagram

  • Title

1

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

4

12917-00

ADAPTER, -8 MORING / -10 MJIC 90 DEG.

$

$

Not available

5

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16588

ASSEMBLY, HYDRAUILC FILTER

$112.99

$

Usually ships in 3-7 days

0

7

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

8

Bear Cat 18532-00

HOSE ASSEMBLY, -10 FMJ / -10 FMJ LD 90 DEG. X 21"

$85.99

$

Usually ships in 3-7 days

0

9

Bear Cat 18533-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC 90 DEG. X 21"

$57.99

$

Usually ships in 3-7 days

0

10

Bear Cat 18535-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC 90 DEG. X 61"

$106.99

$

Usually ships in 3-7 days

0

11

Bear Cat 18536-00

HOSE ASSEMBLY, -8 FMJIC / -8 FMJIC X 61"

$94.99

$

Usually ships in 3-7 days

0

12

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

13

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36016-00

HOSE, .75 ID X 24 IN. 100R4 HYD

$79.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36017-00

ADAPTER, -10 MORING / .75 90 DEG. HOSE

$40.99

$

Usually ships in 3-7 days

0

16

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

17

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE

$2142.99

$

Usually ships in 3-7 days

0

18

Bear Cat 75091-12

WELDMENT, HYDRAULIC TANK

$

$

Not available
