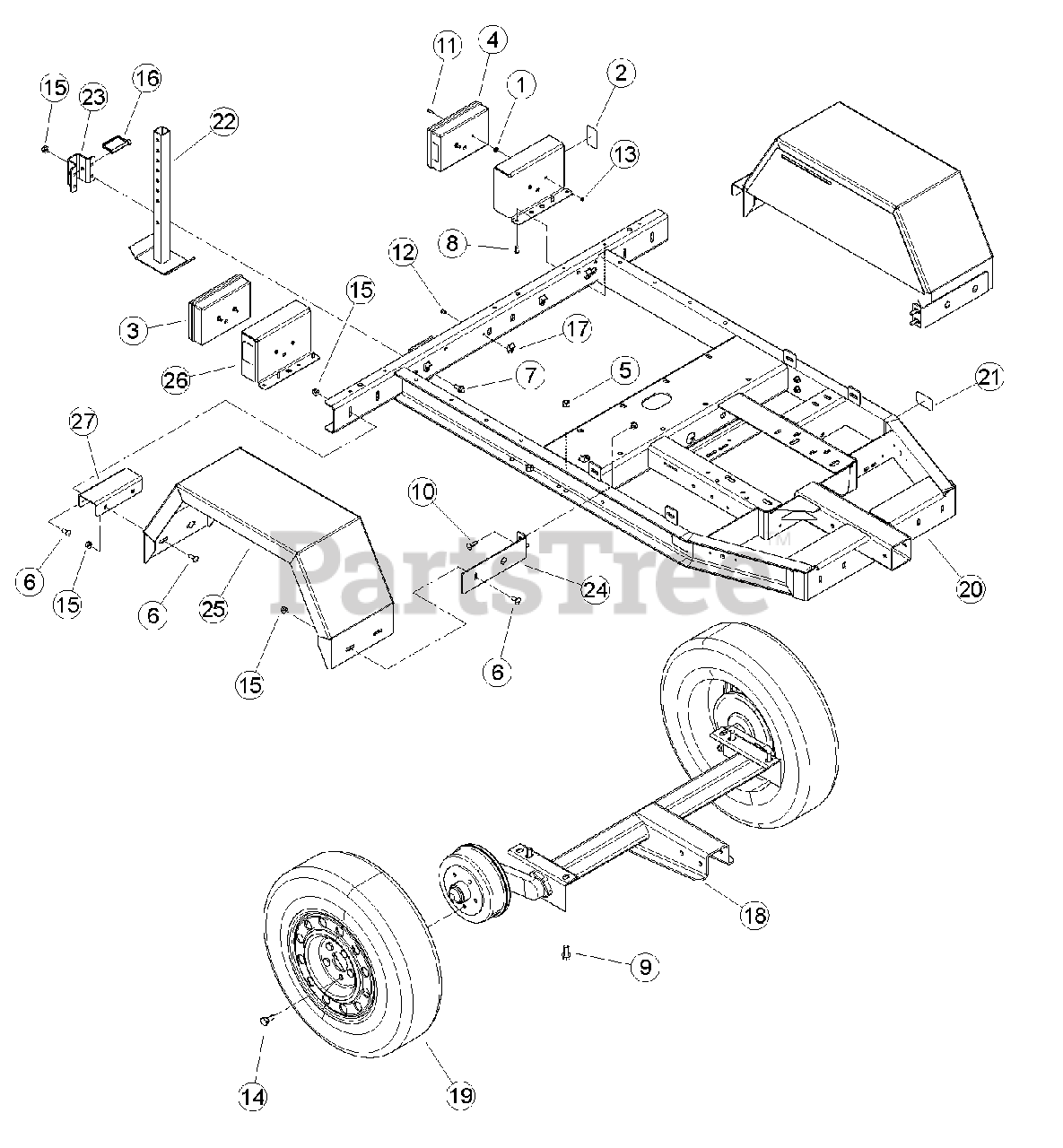

CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Frame (A) (CE COMPLIANT) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

Frame (A) (CE COMPLIANT) Parts Diagram

  • Title

1

0934-0004-00

GROMMET, 1/4 X 5/8 RUBBER

$

$

Not available

2

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

9

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

10

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

11

15557

BOLT, 10-24 X 3/4" HHCS GR8 PLAIN

$

$

Not available

12

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15830-00

NUT, #10-24 K-LOCK ZP

$2.49

$

Usually ships in 3-7 days

0

14

15886-00

BOLT, 12MM LUG FOR WHEELS

$

$

Not available

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

16808

PIN, 3/8 X 2-3/4" SNAP

$

$

Not available

17

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

18

32177-00

AXLE, TORSION W/ BRAKES

$

$

Not available

19

32192-00

WHEEL/TIRE, P205/65R15

$

$

Not available

20

Bear Cat 71627-00

ASSEMBLY, CH611DHXE/XF TRAILER W/ DECALS VI

Note: (INCLUDES ITEM 21)

$10250.99

$

Usually ships in 3-7 days

0

21

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

22

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

23

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

24

Bear Cat 74024-12

BRACKET, FENDER

$

$

Not available

25

Bear Cat 74144-12

WELDMENT, CHIPPER FENDER

$

$

Not available

26

Bear Cat 74321-12

BRACKET, TAIL LIGHT

$

$

Not available

27

Bear Cat 75147-12

PLATE, FENDER SPACER

$

$

Not available

Bear Cat 14587-00

HARNESS TRAILER LIGHTING

Note: (NOT SHOWN)

$319.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
