CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Discharge Chute (VIN: 5VJAA0011FW004859 AND BELOW) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

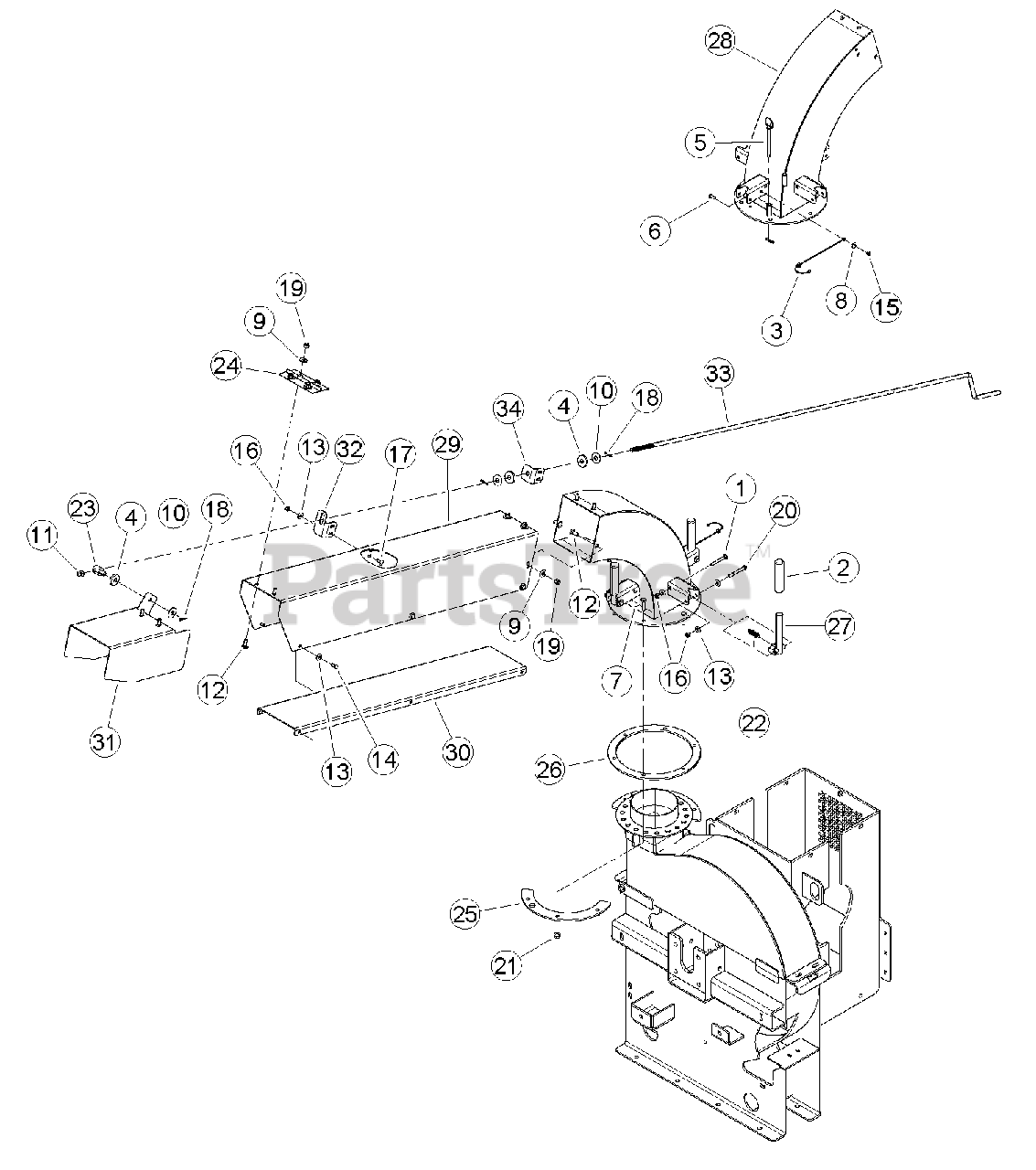

Discharge Chute (VIN: 5VJAA0011FW004859 AND BELOW) Parts Diagram

  • Title
1

0103-0508-00

BOLT, 5/16 X 2-1/2 CRG GR5 ZP

$

$

Not available

2

Bear Cat 12325

GRIP, TILT CONTROL

$19.99

$

Usually ships in 3-7 days

0

3

12530

LANYARD, NYLON

$

$

Not available

4

Bear Cat 12621

WASHER, UHMW SPACER .515ID X 1.50OD

$9.49

$

Usually ships in 3-7 days

0

5

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

6

15001

BOLT, 1/4 X 3/4 HEX GR5 ZP

$

$

Not available

7

Bear Cat 15007

BOLT, 3/8 X 1-1/2 HEX GR5 ZP

$

$

Not available

8

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

11

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

12

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

13

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

14

15300

BOLT, 5/16 X 5/8 HEX GR5 ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

18

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

19

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

20

15560

BOLT, 5/16 X 2-3/4 HEX GR5

$

$

Not available

21

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

22

Bear Cat 16698

SPRING, 1/2 X 2.00 LG ZP

$21.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71910

PIVOT, HEIGHT ADJUSTMENT

$49.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73959-12

HINGE, DISCHARGE CAP

$

$

Not available

25

Bear Cat 74093-12

RETAINER, DISCHARGE

$43.99

$

Usually ships in 3-7 days

0

26

Bear Cat 74149-12

SPACER, DISCHARGE CHUTE

$249.99

$

Usually ships in 3-7 days

0

27

75217-12

WELDMENT, HANDLE

$

$

Not available

28

Bear Cat 75221-12

WELDMENT, DISCHARGE CHUTE

$691.99

$

Usually ships in 3-7 days

0

29

Bear Cat 75222-12

CHANNEL, DISCHARGE CHUTE

$274.99

$

Usually ships in 3-7 days

0

30

Bear Cat 75228-12

WELDMENT, DISCHARGE BOTTOM

$214.99

$

Usually ships in 3-7 days

0

31

Bear Cat 75230-12

CAP, DISCHARGE

$112.99

$

Usually ships in 3-7 days

0

32

75232-12

STRIP, DISCHARGE

$

$

Not available

33

Bear Cat 75237-00

CRANK, DISCHARGE

$

$

Not available

34

75239-12

BRACKET, DISCHARGE CRANK

$

$

Not available
