CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Chute (A) (CE COMPLIANT VIN: 5VJAA0018FW004647 AND BELOW) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

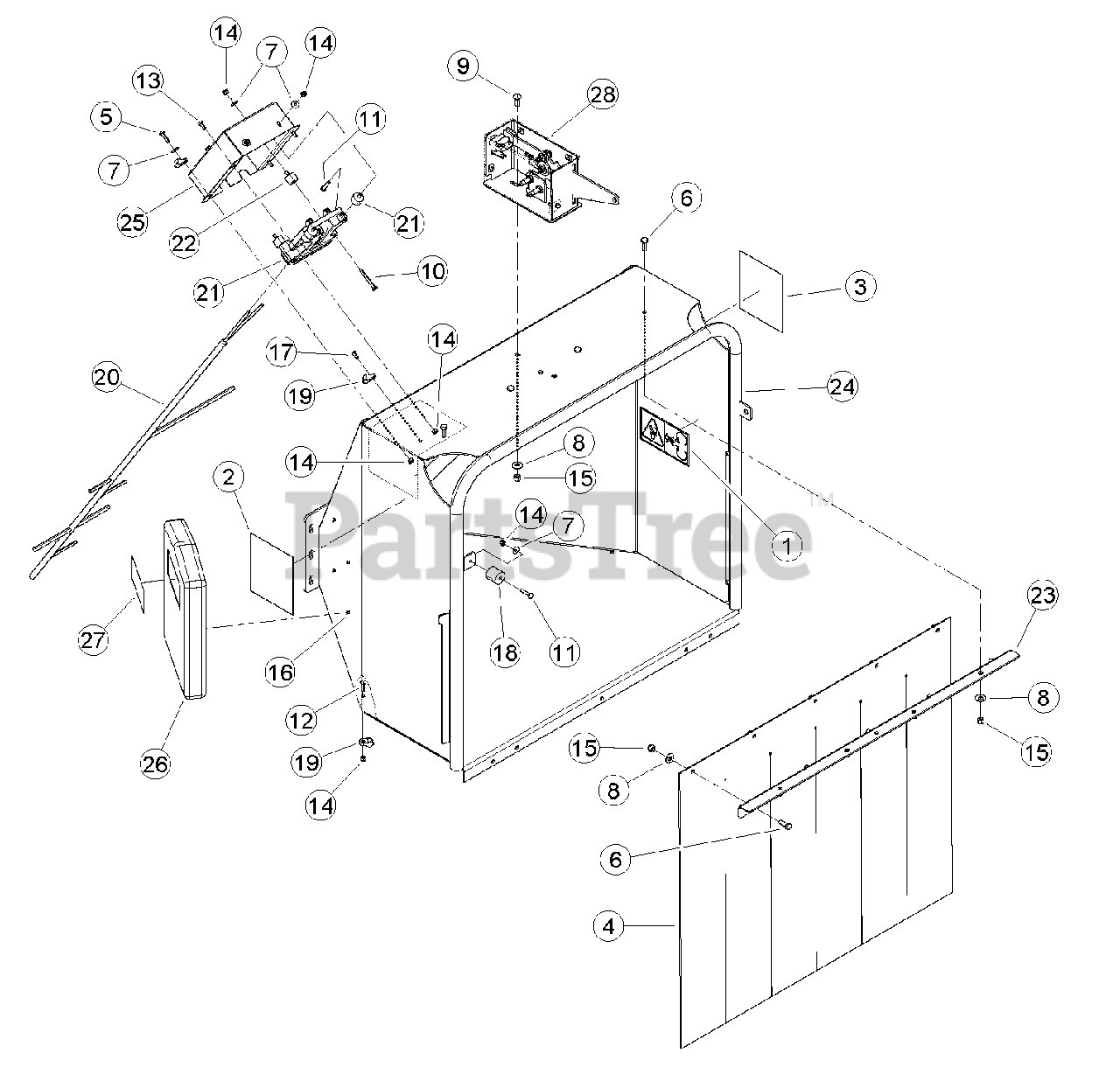

Chute (A) (CE COMPLIANT VIN: 5VJAA0018FW004647 AND BELOW) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

3

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

4

Bear Cat 14130-00

FLAP, CHUTE

$202.99

$

Usually ships in 3-7 days

0

5

15002

BOLT, 1/4 X 1 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HEX HD GR5 ZP

$

$

Not available

11

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15239

BOLT, 1/4 X 1 CRG GR5 NC ZP

$0.99

$

Usually ships in 3-7 days

0

13

15343

BOLT, 1/4 X 5/8 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18420-00

BUMPER, RECESSED RUBBER

$31.99

$

Usually ships in 3-7 days

0

19

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

20

Bear Cat 32104-00

HARNESS, 6" DIESEL PLUS 1 CONTROLLER

$927.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73958-12

SUPPORT, CHIPPER FLAP

$77.99

$

Usually ships in 3-7 days

0

24

75194-35

WELDMENT, CHIPPER CHUTE

$

$

Not available

25

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0

26

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER, SERVICE PART

Note: (INCLUDES ITEM 27)

$89.99

$

Usually ships in 3-7 days

0

27

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

28

Bear Cat 77527-00

ASSEMBLY, SWITCH BOX

$542.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
